Multifit upgrade MULR-C telescopic pole Solar Panel Cleaning Brush Automatic cleaning equipment

Short Description:

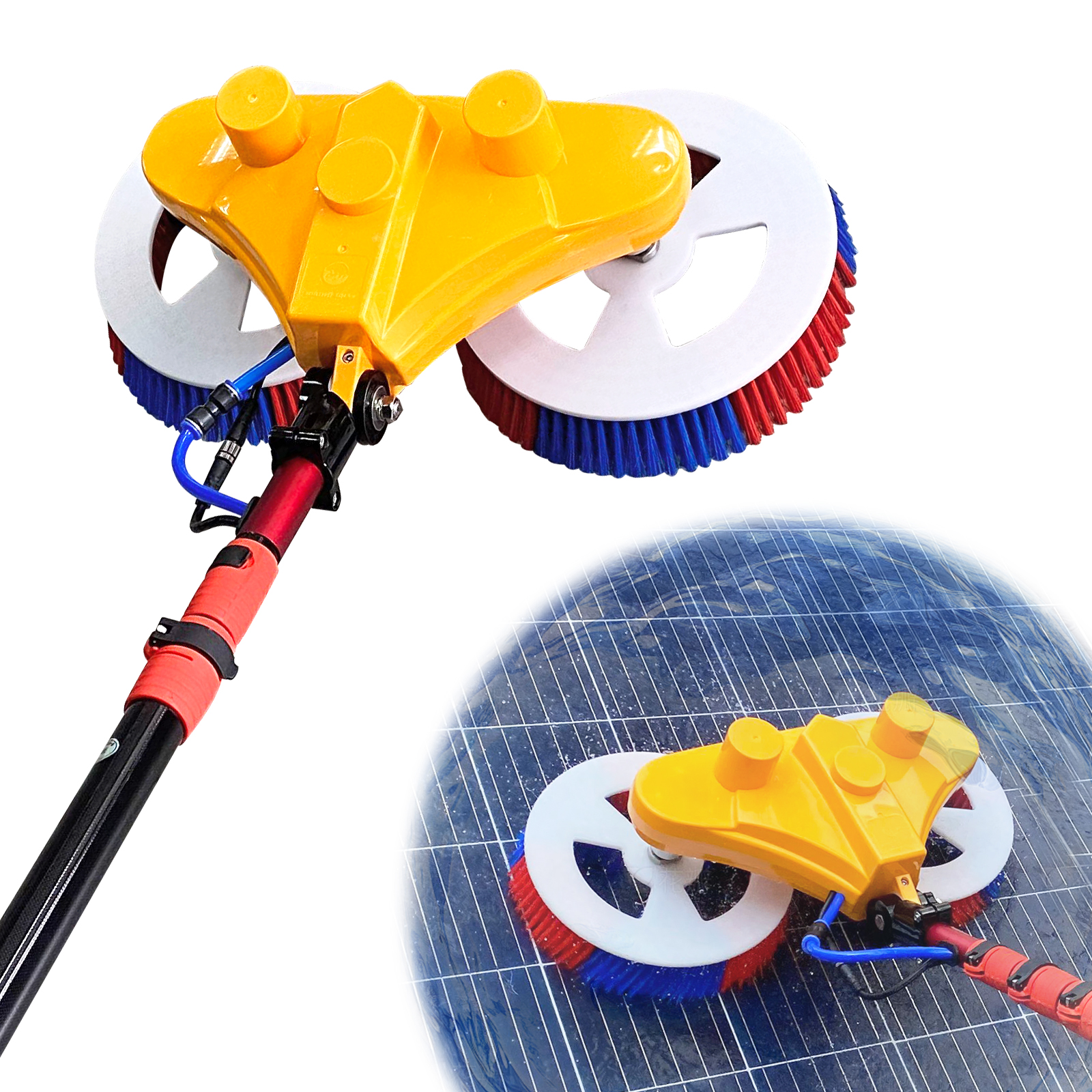

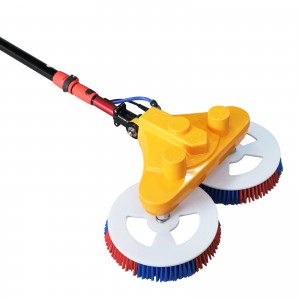

Double-head cleaning brush can be used for double-speed and convenient cleaning.

The two brush heads rotate in opposite directions, which effectively neutralizes the rotating force and ensures the stability of the cleaning brush.


  • Electric Water Brush : Double head
  • Model: MULR-C
  • Drive motor Utilization voltage: 24V
  • Drive motor Type: DC motor
  • Power: 180W
  • Speed: 300rpm
  • Torsion: 5kg/cm2
  • Telescopic pole material: Aluminum Alloy/ Glass Fibre
  • Handle Length: 1.5-3.5mm / 1.7-5.5mm / 2.1-7.5mm(Opetional)
  • Wall thickness: 1MM
  • Diameter: 40MM
  • Brush Diameter : 1.5-3.5mm
  • Power Supply: Be connected to 100-240V power source, or to lithium battery (user can choose suitable type for different cleaning environment)
  • Product Detail

    Product Tags

    Overview

    Quick Details
    Mold:
    MULR-C
    Applicable Industries:
    Solar panel cleaning
    After Warranty Service:
    Video technical support, Online support, Spare parts
    Marketing Type:
    New Product 2022
    Warranty of core components:
    1 years
    Core Components:
    Electronic control system
    Condition:
    New
    Place of Origin:
    Guangdong, China
    Brand Name:
    MULTIFIT
    Fuel:
    Electric
    Certification:
    ce
    Use:
    solar panel cleaning
    Cleaning Process:
    Cold Water Cleaning
    Cleaning Type:
    Manual hand cleaning brush
    Brush Material:
    New nylon
    Generator Power:
    180W
    Dimension(L*W*H):
    See details
    Warranty:
    1 Year
    After-sales Service Provided:
    Video technical support
    Product name:

     Automatic water fed brush

    Lithium battery Battery :
    24V/10Ah Life BO4 Battery
    Battery discharging time :
    8h-10h
    Protection:
    IP65
    place of use:
    Solar power plants, car wash shops, etc.



    Electric Water Brush

    MULTIFIT specifically designs electric water brushes for cleaning solar panels, and designs convenient and affordable solar cleaning products for the majority of users.

    Single-head cleaning brush can be used to clean small area solar panels,The cleaning brush is also suitable for cleaning high-altitude exterior walls, billboards and glass roofs.

    Electric Water Brush

    Electric Water Brush

    We have our own R&D team

    Cleaning brush is one of the products with the least investment in solar panel cleaning equipment

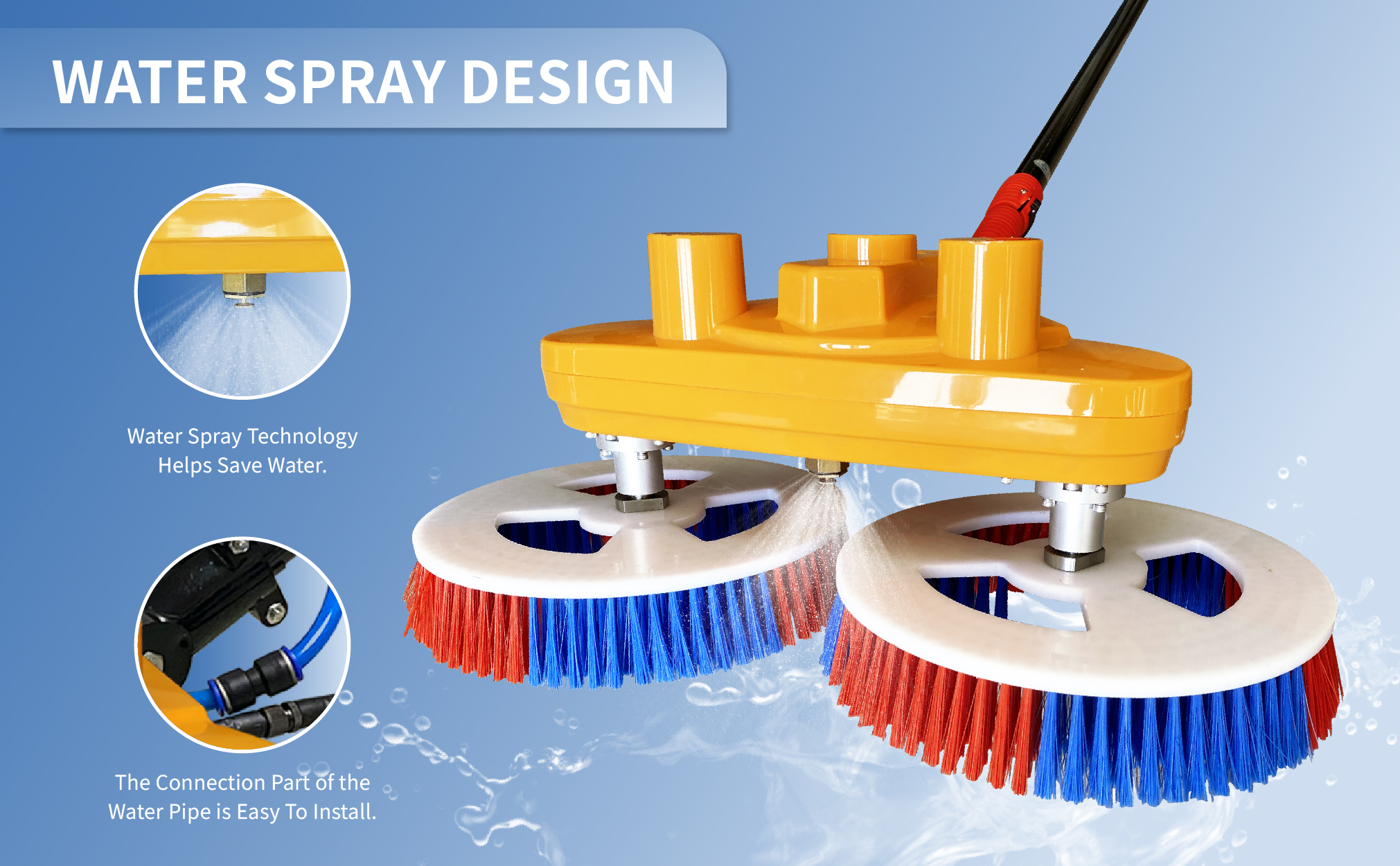

    The water pipe is equipped with a water control valve, which can be connected to the user's water source

    Electric Water Brush MULR-B01

    Product Features

    • Lithium battery is carried in a backpack, no need to carry batteries, easy to carry
    • The length of the water supply pipe can be customized, please call for consultation
    • The angle of the brush head fits the solar panel, which can be adjusted with the angle of the solar panel.
    • Battery life: can be used continuously for 8-10 hours
    • The shorter the pole, the lighter it is, the telescopic pole can be adjusted in length
    • The bristles are moderately soft and hard, and do not harm the photovoltaic panel
    Washing cleaning brush1

    Application Scenario

    MULTIFIT specifically designs electric water brushes for cleaning solar panels, and designs convenient and affordable solar cleaning products for the majority of users.

    Single-head cleaning brush can be used to clean small area solar panels,The cleaning brush is also suitable for cleaning high-altitude exterior walls, billboards and glass roofs.

    Factory roof

    Factory roof solar system

    Mountain

    Mountain

    High pile

    High Pile

    Pond

    Pond

    Sloping roof solar system

    Sloping roof solar system

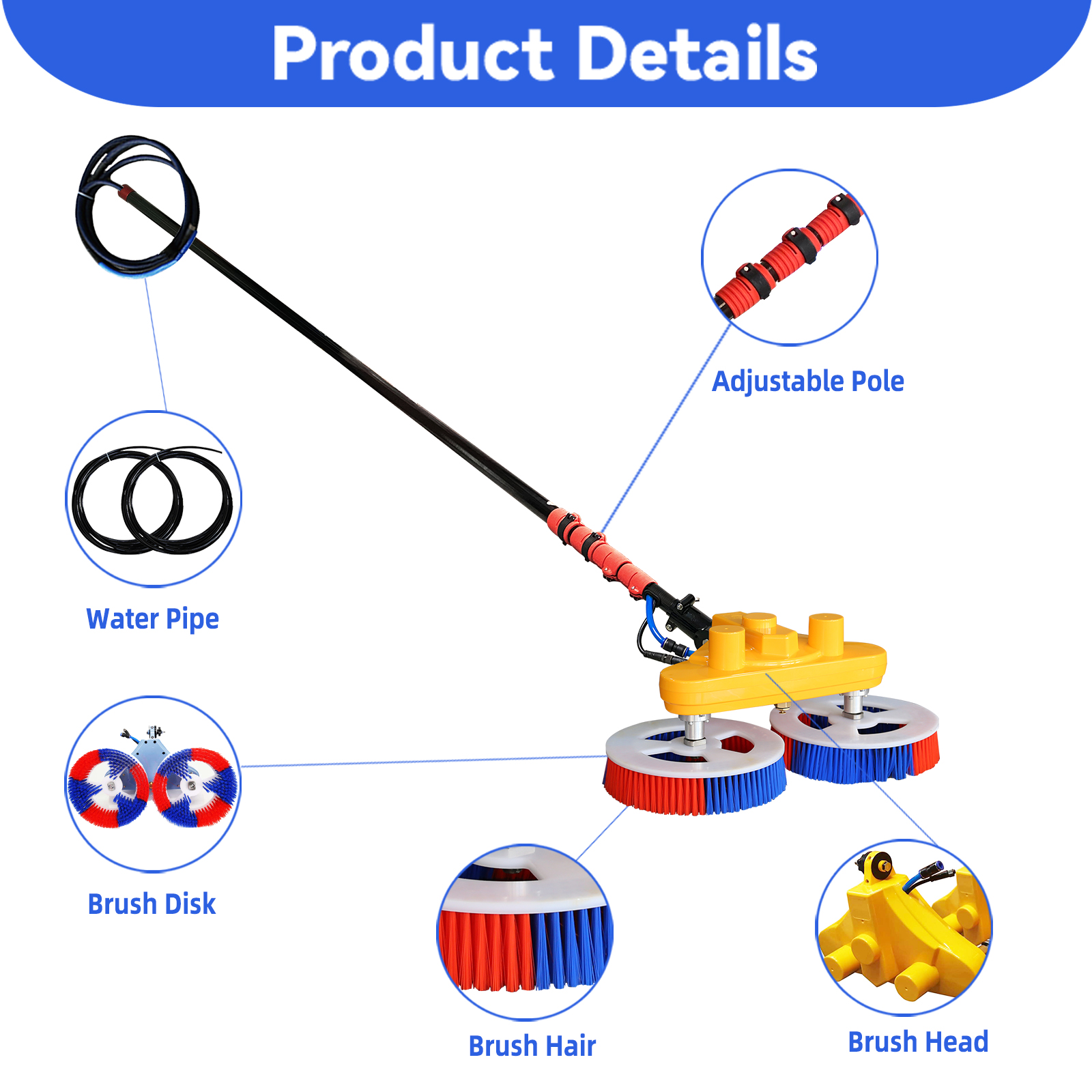

    Product Details

    1

    24V 10Ah Life Bo4 Battery

    2

    Save Water at the Outlet

    3

    Outlet Pipe Joint

    6

    Two Brush Heads Clean Faster

    5

    Telescopic Adjustment Rod

    4

    Big Backpack

    Electric Water Brush Parameters

    Spare Part List Technical Parameter
    Applicable voltage 100-240V
    Drive motor Type DC motor
    Utilization voltage 24V
    Power 180W
    Speed 300rpm
    Torsion 5kg/cm2
    Water pump Type DC pump
    Utilization voltage 12V
    Power 60W
    Water suction 1.5M
    Water lift 10-12M
    Pressure 1pa max
    Flow 180L/H
    Handle Telescopic material Aluminum alloy
    Wall thickness 1mm
    Diameter 40mm
    Length 1.5-3.5m / 1.7-5.5m / 2.1-7.5m(Opetional)
    Brush Diameter 15-35cm
    Material Nylon

    Technical Parameters (double head)MULR-C

    MODEL Power Supply Water Supply Accessory
    MULR-C01 Be connected to 100-240V power source Water pipe contains water control valve, can be connected to user’s water source Water pipe*1
    Brush head*1
    Backpack*1
    Power cable*1
    Telescopic rod*1
    Brush head assembly*2
    MULR-C02 Be connected to lithium battery (battery can be put in backpack and carried by operator) Water pipe contains water control valve, can be connected to user’s water source Water pipe*1
    Brush head*1
    Backpack*1
    Power cable*1
    Telescopic rod*1
    Brush head assembly*2
    MULR-C03 Connect to 100-240V power source, or to lithium battery (user can choose suitable type for different cleaning environment) Water pipe contains water control valve, can be connected to user’s water source Battery *1
    Water pipe*1
    Brush head*1
    Backpack*1
    Power cable*1
    Telescopic rod*1
    Brush head assembly*2

    Use Cases

    Use Cases2
    Use Cases3
    Use Cases1

    Package & Shipping

    Batteries have high requirements for transportation.
    For questions about sea transportation, air transportation and road transportation, please consult us.

    Cleaning brush product display
    Cleaning brush packaging
    Cleaning brush transportation

    Multifit Office-Our Company

    HQ located in Beijing, China and founded in 2009 Our factory located in 3/F,JieSi Bldg.,6 Keji West Road,Hi-Tech Zone,Shantou,Guangdong,China.

    Guangdong Multifit
    Cleaning brush research and development
    MULTIFIT (3)
    water pipe
    multifitsoalr-3
    Cleaning brush test

    Come with MULTIFIT, to power a better world!
    Multifit is expert with ISO9001:2008 on manufacturing TUV, CE, SONCAP & CCC solar products to over 60 coun-tires for 10 years, covering solar inverters, solar cleaning robots, solar street lights, ect.And, Multifit has experienced designing and installation teams on solar system, either off grid or on gr-id. This ability can help us better support our customer's capability to win new sales and do an excell-ent maintenance.
