MULR-B04 Automatic Clean Brush kits
Overview
Quick Details
- Mold:
-
MULR-B04
- Applicable Industries:
-
Solar panel cleaning
- After Warranty Service:
-
Video technical support, Online support, Spare parts
- Marketing Type:
-
New Product 2021
- Warranty of core components:
-
1 years
- Core Components:
-
Electronic control system
- Condition:
-
New
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
MULTIFIT
- Fuel:
-
Electric
- Certification:
-
ce
- Use:
-
solar panel cleaning
- Cleaning Process:
-
Cold Water Cleaning
- Cleaning Type:
-
Manual hand cleaning brush
- Brush Material:
-
New nylon
- Generator Power:
-
180W
- Dimension(L*W*H):
-
See details
- Warranty:
-
1 Year
- After-sales Service Provided:
-
Video technical support
- Product name:
-
Automatic water fed brush
- Lithium battery Battery :
-
24V/10Ah BO4 Battery
- Battery discharging time :
-
8h-10h
- Protection:
-
IP65
- place of use:
-
Solar power plants, car wash shops, etc.
Electric Water Brush
MULTIFIT specifically designs electric water brushes for cleaning solar panels, and designs convenient and affordable solar cleaning products for the majority of users.
Single-head cleaning brush can be used to clean small area solar panels，The cleaning brush is also suitable for cleaning high-altitude exterior walls, billboards and glass roofs.
Electric Water Brush
We have our own R&D team
Cleaning brush is one of the products with the least investment in solar panel cleaning equipment
The water pipe is equipped with a water control valve, which can be connected to the user's water source
Product Features
- Lithium battery is carried in a backpack, no need to carry batteries, easy to carry
- The length of the water supply pipe can be customized, please call for consultation
- The angle of the brush head fits the solar panel, which can be adjusted with the angle of the solar panel.
- Battery life: can be used continuously for 8-10 hours
- The shorter the pole, the lighter it is, the telescopic pole can be adjusted in length
- The bristles are moderately soft and hard, and do not harm the photovoltaic panel
Application Scenario
MULTIFIT specifically designs electric water brushes for cleaning solar panels, and designs convenient and affordable solar cleaning products for the majority of users.
Single-head cleaning brush can be used to clean small area solar panels，The cleaning brush is also suitable for cleaning high-altitude exterior walls, billboards and glass roofs.
Factory roof solar system
Mountain
High Pile
Pond
Sloping roof solar system
Product Details
24V 10Ah Life Bo4 Battery
Save Water at the Outlet
Outlet Pipe Joint
Two Brush Heads Clean Faster
Telescopic Adjustment Rod
Big Backpack
Electric Water Brush Parameters
| Spare Part List | Technical Parameter | ||||
| Applicable voltage | 100-240V | ||||
| Drive motor | Type | DC motor | |||
| Utilization voltage | 24V | ||||
| Power | 180W | ||||
| Speed | 300rpm | ||||
| Torsion | 5kg/cm2 | ||||
| Water pump | Type | DC pump | |||
| Utilization voltage | 12V | ||||
| Power | 60W | ||||
| Water suction | 1.5M | ||||
| Water lift | 10-12M | ||||
| Pressure | 1pa max | ||||
| Flow | 180L/H | ||||
| Handle | Telescopic material | Aluminum alloy | |||
| Wall thickness | 1mm | ||||
| Diameter | 40mm | ||||
| Length | 1.5-3.5m / 1.7-5.5m / 2.1-7.5m(Opetional) | ||||
| Brush | Diameter | 15-35cm | |||
| Material | Nylon | ||||
Technical Parameters (single head)MULR-B
| MODEL | Power Supply | Water Supply | Accessory |
| MULR-B01 | Be connected to 100-240V power source | Water pipe contains water control valve, can be connected to user’s water source | Water pipe*1 Brush head*1 Backpack*1 Power cable*1 Telescopic rod*1 Brush head assembly*1 |
| MULR-B02 | Be connected to 100-240V power source | Put water suction pipe into water bucket directly (control box contains water pump inside, control box has water control switch & power control switch) | Water pipe*1 Brush head*1 Backpack*1 Power cable*1 Telescopic rod*1 Brush head assembly*1 |
| MULR-B03 | Be connected to lithium battery (battery can be put in backpack and carried by operator) | Water pipe contains water control valve, can be connected to user’s water source | Battery *2 Water pipe*1 Brush head*1 Backpack*1 Power cable*2 Telescopic rod*1 Brush head assembly*1 |

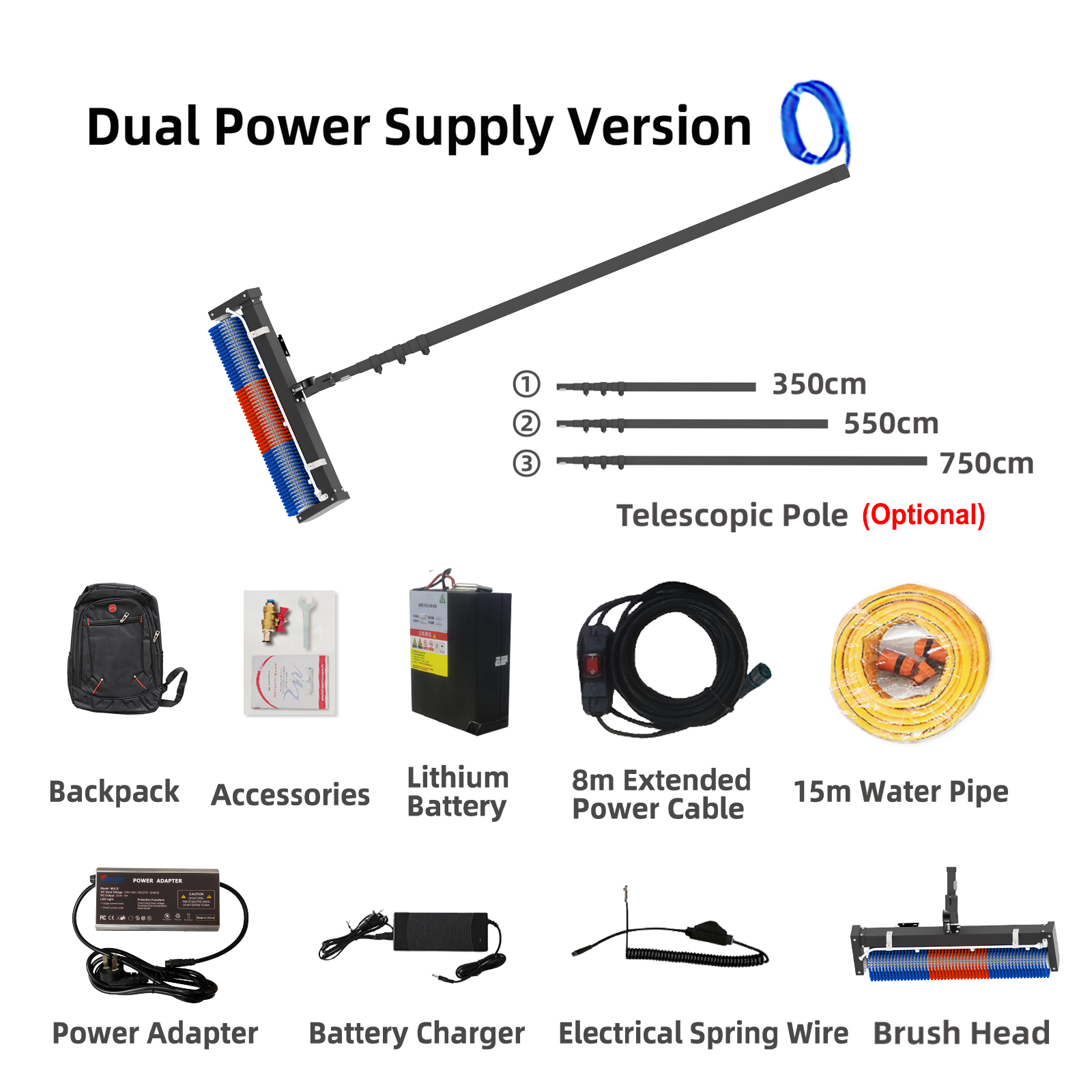

| MULR-B04 | Be connected to 100-240V power source, or to lithium battery (user can choose suitable type for different cleaning environment) | Be connected to user’s water source, or to water bucket (user can choose suitable type for different cleaning environment) | Battery *2 Water pipe*1 Brush head*1 Backpack*1 Power cable*2 Telescopic rod*1 Brush head assembly*1 |
Use Cases
Package & Shipping
Batteries have high requirements for transportation.
For questions about sea transportation, air transportation and road transportation, please consult us.
Multifit Office-Our Company
HQ located in Beijing, China and founded in 2009 Our factory located in 3/F,JieSi Bldg.,6 Keji West Road,Hi-Tech Zone,Shantou,Guangdong,China.
Come with MULTIFIT, to power a better world!
Multifit is expert with ISO9001:2008 on manufacturing TUV, CE, SONCAP & CCC solar products to over 60 coun-tires for 10 years, covering solar inverters, solar cleaning robots, solar street lights, ect.And, Multifit has experienced designing and installation teams on solar system, either off grid or on gr-id. This ability can help us better support our customer's capability to win new sales and do an excell-ent maintenance.
FAQ
Q1: Are you a factory or trading company?
A: We are a factory. Multifit Solar is an original design manufacturer of power inverter, the solar charge controller and solar panel cleaning robot and solar array box since 2009.Q2: How can I get some samples?
A: We can provide you samples for quality checking.
Kindly contact us for getting more discount and profitable project solutions.
Q3: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.
Q4: Where is your loading port?
A: Multifit have 2 factories in Beijing and Shantou City Guangdong.
The loading port is TianJin/ Shanghai or Shenzhen/ Guangzhou for optional.
Q5: How long is your factory delivery time?
A: 3-7 days for sample order, 5-10 days for MOQ order,15-30 days for 20ft container.
Q6: Is it OK to print my logo on the product?
A: Yes. Please inform us formally before production and confirm the design firstly based on our sample
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
