M-PSS 600W Solar Generator – Pure Sine Wave Battery Backup with USB & Car Output

Short Description:

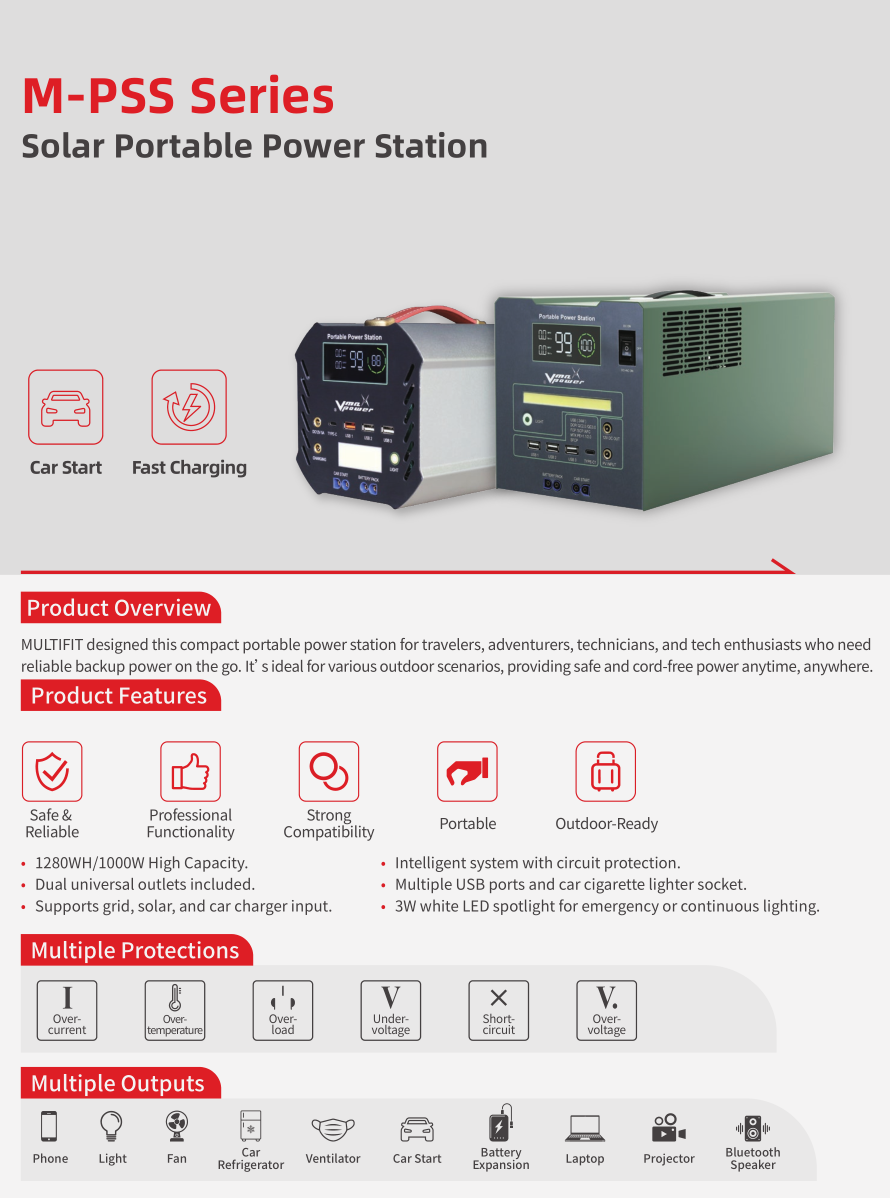

M-PSS 600W solar portable power station features 576Wh LiFePO₄ battery with 2500+ cycle life. Delivers 600W pure sine wave AC output (THD<3%) for stable safe power. Includes dual AC outlets multiple USB ports 24W Type-C fast charging 12V cigarette lighter and 12V 60A car jump starter. Supports three charging modes: adapter solar panel (16V-25V) and car charger. Smart BMS provides over-temperature over-voltage overload short circuit protection. Compact quiet ideal for camping home emergency RV travel.




  • Place of Origin: Guangdong, China
  • Model Number: M-PSS-600W
  • Output Voltage: 220V/110V (optional)
  • Output Frequency: 50Hz/60Hz (optional)
  • Output Waveform: Pure Sine Wave
  • THD: 3%
  • Battery Type: LiFePO₄
  • Battery Voltage: 12.8V
  • Battery Capacity: 230400mAh
  • Battery Energy: 576Wh
  • Cell Cycle Life: ≥2500 cycles
  • Cigarette Lighter: 12V 10A
  • Product Detail

    Product Tags

    Overview

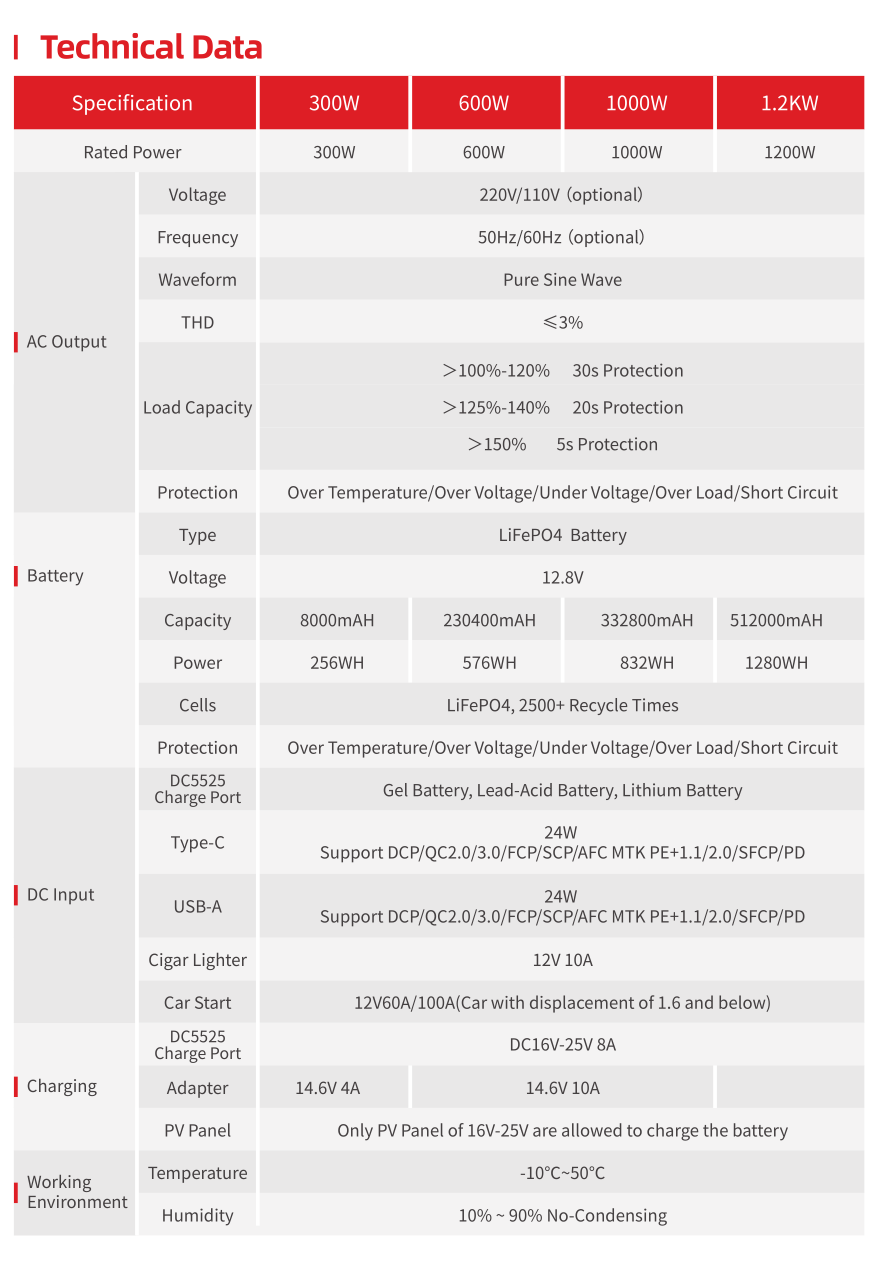

    Parameter 300W Model 600W Model 1000W Model 1.2KW Model
    Rated Power 300W 600W 1000W 1200W
    Output Voltage 220V/110V (optional)
    Output Frequency 50Hz/60Hz (optional)
    Output Waveform Pure Sine Wave
    THD <3%
    AC Overload Protection 100%-120%: 30s
    125%-140%: 20s
    >150%: 5s
    Battery Type LiFePO₄
    Battery Voltage 12.8V
    Battery Capacity 8000mAh 230400mAh 332800mAh 512000mAh
    Battery Energy 256Wh 576Wh 832Wh 1280Wh
    Cell Cycle Life ≥2500 cycles
    Protections Over-temp / Over-voltage / Under-voltage / Overload / Short circuit
    Type-C Port 24W supports DCP/QC2.0/3.0/FCP/SCP/AFC/MTK PE+/SFCP/PD
    USB-A Port Supports DCP/QC2.0/3.0/FCP/SCP/AFC/MTK PE+/SFCP/PD
    Cigarette Lighter 12V 10A
    Car Start Output 12V 60A/100A (for engines ≤1.6L displacement)
    DC5525 Charging Port DC16V-25V 8A
    Adapter Charging 14.6V 4A or 14.6V 10A
    Solar Panel Charging Only 16V-25V solar panels allowed
    Operating Temperature -10℃ ~ 50℃
    Operating Humidity 10% ~ 90% (Non-condensing)



    Product Details

    7
    Product Characteristic
    product information
    Product Characteristic

    ●USB Output and Mobile charge
    ●High Efficiency/Energy Saving
    ●Low self-Consumption below 1.2A.It can reach zero at energy saving mode.
    ●Make sure the load capacity is above 200W.or the inverter can not be restarted automatically
    ●Leading energy saving technology
    ●With the AVR function.AC voltage fluctuated is within +-5%
    ●Pure sine wave
    ●Extreme overload capacity and super load capacity
    ●Working Appliance:Air-conditioners.refrigerators.water pumps.TV.Light.fans and other household appliances and office appliances etc.
    ●Durable. LF transformer technology design.it is suitable for the poor working conditions or where the grid power is not stable
    ●LCD display /Digitized Display optional
    ●DC reverse polarity protection

    product information

    ●CPU Technology control
    ●Big Charging current. up to 70Amp.
    ●LCD display /Digitized Display optional:Grid powe.battery.AC output.Fault.Saving.
    ●Low voltage.Charging.
    ●Charging curren.Battery capacity.
    ●Intelligent battery management for maximum battery life
    ●Automatically switch between the grid and inverter mode
    ●Transfer time is below 4 ms if the grid power are cut off 220V/110V AC 50/60Hz is optional
    ●It can work with the generator
    ●Intelligent fan control mode.The fan work at Temperature ≥30℃.the inverter will protect by itself at temperature ≥100℃

    详情页1
    详情页2

    Application scenario

    For shopping malls, medical institutions, construction sites, wasteland, etc., 3000W~8000W off-grid photovoltaic systems should be selected according to the load. If you need an inverter with a power of more than 8000W, please communicate with customer service for customization.

    企业微信截图_20230104144134

    Outdoor light 5W power supply for about 186 hours iPhone13 Power supply for about 89 hours Power supply of loudspeaker (20W) is about 42 hours

    企业微信截图_20230104144151

    Notebook (66W) Power supply for about 14 hours Car refrigerator (65W) Power supply for about 14.5 hours Rice cooker (300W) Power supply for 3 hours

    2009 Multifit Establis , 280768 Stock Exchange

    — MULTIFIT
    Beijing Multifit Electrical Technology Co.,Ltd

    12+Years in Solar Industry  20+CE Certificates

    — MULTIFIT
    Beijing Multifit Eelectrical Technology Co.,Ltd

    Multifit Green energy. Here let ou enjoy one-stop shopping. Factory direct delivery.

    — MULTIFIT
    Beijing Multifit Eelectrical Technology Co.,Ltd

    Package & Shipping

    Batteries have high requirements for transportation.
    For questions about sea transportation, air transportation and road transportation, please consult us.
