Vmaxpower 3KW 24V Solar system Off grid For Mounting Rooftop Solar Panels A Grade And MPPT Controller Solar System
Overview
Quick Details
- Warranty:
-
5YEARS, 25 Years
- Free installation service:
-
YES
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
Vmaxpower
- Model Number:
-
MUL-3000W
- Application:
-
Home, Commercial, Industrial
- Solar Panel Type:
-
Monocrystalline Silicon, Polycrystalline Silicon
- Battery Type:
-
Lead-Acid, Lithium Ion
- Controller Type:
-
MPPT, PWM
- Mounting Type:
-
Ground Mounting, Roof Mounting, Carport Mounting
- Load Power (W):
-
3000W
- Output Voltage (V):
-
24V
- Output Frequency:
-
50/60Hz
- Work Time (h):
-
12Hours
- Certificate:
-
CE Rhos, TUV/CE/ISO14001/ISO9001
- Pre-sales project design:
-
Yes
- Product name:
-
Vmaxpower 5KW 48V Solar Hybrid Off grid system
- Combiner box:
-
4 input 1 output
- Solar panel rack:
-
Roof Solar Panel Rack
- Solar panel:
-
350W Polycrystalline and Monocrystalline
- Protection :
-
IP65
- Battery:
-
12V200AH GEL
- Solar Cables:
-
4mm^2 and 6mm^2 optional
- Usage:
-
Home Power System
- Technical Support:
-
Complete Technical Support
- Hybrid inverter with MpptController:
-
3KW 24VDC 80A MPPT Controller
Photovoltaic System Planning
What is your roof area?
What size system do you plan to build?
According to the provided roof area, the largest array of photovoltaic systems can be arranged
Provide the system installation guides after the system arrive
The 3KW photovoltaic power generation system occupies about 20 square meters of roof area, and is installed on the roof of residential areas. The converted electric energy can be connected to the Internet and used for household appliances through inverter. And it is suitable for urban high-rise, multi-storey buildings, Liandong villas, rural houses, etc.
Stay away from the shadows
This is the best day of the past month. I have a 3 kW Chinese solar system, which is a new system. But the maximum power I got so far is 2.4KW...not bad. But this is not the ideal state, why?Let's take a look at this picture,The shadow on the panels you see is the tree with the rising sun behind the camera. The shadow of the tree occupies 80% of the solar panel area. It is this shadow that caused the power generation efficiency of my new system to not reach the power I wanted.
MULTIFIT: It is recommended to stay away from shadows, shading objects, etc., so that the power generation rate will be high.
3KW System Componnent
Solar panel: Poly 350W*9pcs

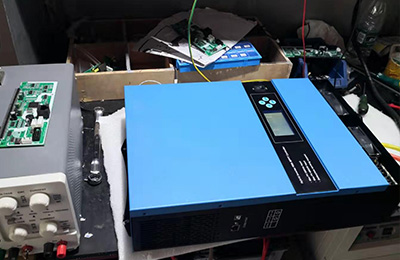

Inverter wiht controller:HF Pro 3000W 24V*1unit
Battery:12V 200Ah *4pcs
Bracket: 6m C type steel *9pcs
Energy storage system, Off-grid photo-voltaic power generation system
It’s also known as energy storage photo-voltaic power generation system, it is mainly composed with PV modules, DC/DC charging controllers, inverters and various loads, having the functions of independent power supplying and energy storage. Off-grid photo-voltaic power generation system is mainly applied far from the power grid, such as remote villages, Gobi desert areas, beaches, islands and so on.
Technical Data
| Model No. | System Capacity | Solar Module | Solar Controller | Inverter | Battery 12V/200Ah | Installation Area | Recommended Load | |
| Power | Quantity | |||||||
| MU-SPS3KW | 3000W | 350W | 9 | 24V 80A | 24V 3000W | 8 | 20m2 | 3000W |
| MU-SPS5KW | 5000W | 350W | 15 | 48V 60A*2 | 48V 5000W | 16 | 30m2 | 5000W |
| MU-SPS8KW | 8000W | 350W | 23 | 48V 60A*3 | 48V 8000W | 32 | 46m2 | 8000W |
| MU-SPS10KW | 10000W | 350W | 35 | 96V 60A*2 | 96V 10000W | 64 | 70m2 | 10000W |
| MU-SPS15KW | 15000W | 350W | 43 | 96V 60A*3 | 96V 15000W | 128 | 86m2 | 15000W |
| MU-SPS20KW | 20000W | 350W | 57 | 240V 100A | 240V 20000W | Designed according to user | 114m2 | 20000W |
| MU-SPS30KW | 30000W | 350W | 86 | 240V 80A*2 | 240V 30000W | Designed according to user | 172m2 | 30000W |
System Applications
RV Traveling Photovoltaic System
Free-range animal breeding, captive breeding, optional photovoltaic system environment pollution-free
Island safe house and Island outpost
2009 Multifit Establis , 280768 Stock Exchange
12+Years in Solar Industry 20+CE Certificates
Multifit Green energy. Here let ou enjoy one-stop shopping. Factory direct delivery.
Package & Shipping
Batteries have high requirements for transportation.
For questions about sea transportation, air transportation and road transportation, please consult us.
Multifit Office-Our Company
HQ located in Beijing, China and founded in 2009 Our factory located in 3/F,JieSi Bldg.,6 Keji West Road,Hi-Tech Zone,Shantou,Guangdong,China.
