MU-SGS200KW No pollution and no emission power generation solar energy system On Grid Comercial and Household Solar Power Systems

Short Description:

Solar photovoltaic system can realize the energy conversion of solar energy → electric energy → chemical energy → electric energy → light energy to meet the electricity demand of users.




  • Capacity: 200KW
  • Model Number: MU-SGS200KW
  • Specification: Normal
  • Solar Energy Systems Style: On Grid Solar Power System
  • Output wave: Pure Sine Wave
  • AC output: 220V/230V/240Vac
  • Technical Support: Complete Technical Support
  • Product Detail

    Product Tags

    Overview
    Quick Details
    Warranty:
    5YEARS, 25 Years Life Time
    Free installation service:
    NO
    Place of Origin:
    Guangdong, China
    Brand Name:
    Vmaxpower
    Model Number:
    MU-SGS200KW
    Application:
    Home, Commercial, Industrial
    Solar Panel Type:
    Monocrystalline Silicon, Polycrystalline Silicon
    Controller Type:
    MPPT, PWM
    Mounting Type:
    Ground Mounting, Roof Mounting, Carport Mounting,BIPV Mounting
    Load Power (W):
    200000W
    Output Voltage (V):
    110V/120V/220V/230V
    Output Frequency:
    50/60Hz
    Work Time (h):
    24Hours
    Certificate:
    CE/ISO9001
    Pre-sales project design:
    Yes
    Product name:
    On-grid Solar Power System
    Combiner box:
    Anti-lighting Function
    Mounting type:
    6m C type steel
    Solar panel:
    Monocrystalline Silico
    AC output:
    110V/120V/220V/230V
    Technical Support:
    Complete Technical Support
    Capacity:
    200000W

    Centralize the factory to supply power, and the surplus power will be directly transferred to the power grid bureau for sale

    System Applications

    At present, 200KW photovoltaic system is most widely used in commercial buildings, grounds, hillsides and other places of 1,300 square meters. Centralized power supply, and the surplus power is directly transferred to the power grid bureau for sale.

    The 200KW distributed photovoltaic system can be installed in sunny places.
    When installing power stations, it is best to erect lightning rods nearby to avoid unnecessary losses.

    200KW System Componnent

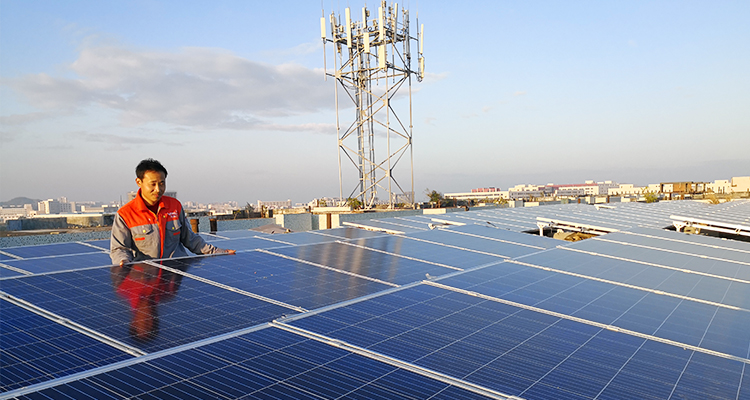

    The 200KW distributed photovoltaic system can be installed in sunny places



    Installation area:1300m²
    Solar module:350W*571pcs
    Inverter:50KW*4unit
    AC Distribution box :50KW*4unit
    Bracket : Need to design,41*41*2.5mm
    PV Cables (MC4 to Inverter): Black & Red 200M each
    MC4 CONNECTOR : 100sets

    The Process of One-stop Service

    Project consultation

    Product presentation

    Interpretation of the process

    Analyze the investment budget

    Engineering installation

    Professional and high-quality construction team, standardized construction process, to create high-quality power stations

    Project consultation

    Engineer site survey

    Roof, load measurement

    Shielding analysis, cable path planning

    On-grid test

    Responsible for cooperating with the power supply company to complete the on-grid test, and realize self-generation and self-use and net access of surplus power

    Soalr system

    Project design

    According to the survey results, the best system design scheme and grid connection scheme are customized to escort the high-quality power station

    Operation maintenance

    Provides an intelligent monitoring system

    Complete quality assurance system

    Provide lifetime maintenance

    To applt for acces

    Responsible for preparing the application materials and handling the grid-connected access

    Loan Servicer

    Provide a series of financial services, to provide customers with low interest loans

    Keep the Best Angle

    Best angle
    General angle
    Bad angle

    Because the fixed installation can not automatically track the sun's change of Angle like the tracking system, it needs to calculate the optimal inclination of the component arrangement according to the latitude to obtain the maximum solar radiation throughout the year and seek the maximum energy generation.

    MULTIFIT: It is recommended to keep the best angle, so that the power generation rate will be high.

    Technical Data

    Model No. System Capacity Solar Module Inverter Installation Area Annual energy output(KWH)
    Power Quantity Capacity Quantity
    MU-SGS5KW 5000W 285W 17 5KW 1 34m2 ≈8000
    MU-SGS8KW 8000W 285W 28 8KW 1 56m2 ≈12800
    MU-SGS10KW 10000W 285W 35 10KW 1 70m2 ≈16000
    MU-SGS15KW 15000W 350W 43 15KW 1 86m2 ≈24000
    MU-SGS20KW 20000W 350W 57 20KW 1 114m2 ≈32000
    MU-SGS30KW 30000W 350W 86 30KW 1 172m2 ≈48000
    MU-SGS50KW 50000W 350W 142 50KW 1 284m2 ≈80000
    MU-SGS100KW 100000W 350W 286 50KW 2 572m2 ≈160000
    MU-SGS200KW 200000W 350W 571 50KW 4 1142m2 ≈320000



    Module No. MU-SPS5KW MU-SPS8KW MU-SPS10KW MU-SPS15KW MU-SPS20KW MU-SPS30KW MU-SPS50KW MU-SPS100KW MU-SPS200KW
    Distribution Box Essential internal components of the distribution box                               AC switch, photovoltaic reclosing; Lightning surge protection, grounding copper bar
    Bracket 9*6m C type steel 18*6m C type steel 24*6m C type steel 31*6m C type steel 36*6m C type steel Need to design Need to design Need to design Need to design
    Photovotaic cable 20m 30m 35m 70m 80m 120m 200m 450m 800m
    Accessories MC4 connector C type steel connecting bolt and screw MC4 connector   Connecting bolt and screw Medium pressure block edge pressure block

    Remarks:

    The specifications are only used for the system comparison of different specifications. Multifit can also design different specifications according to the personalized needs of customers.

    Quality assurance

    Core power panel, 25 years product quality and power compensation liability insurance.

    Inverters provide five years of product quality and fault insurance.

    The bracket is guaranteed for ten years.

    System Applications

    Commercial roof system

    Commercial roof system

    200KW Ground system

    Ground Solar system

    Ground system

    Mountain system

    2009 Multifit Establis , 280768 Stock Exchange

    — MULTIFIT
    Beijing Multifit Electrical Technology Co.,Ltd

    12+Years in Solar Industry  20+CE Certificates

    — MULTIFIT
    Beijing Multifit Eelectrical Technology Co.,Ltd

    Multifit Green energy. Here let ou enjoy one-stop shopping. Factory direct delivery.

    — MULTIFIT
    Beijing Multifit Eelectrical Technology Co.,Ltd
    to tel-

    Genuine product guarantee/No false mark/

    No exaggeration

    One-stop solar shopping experience

    Manufacturer's engineers provide one-to-one online guidance

    5 year system warranty under normal operation

    Package & Shipping

    Batteries have high requirements for transportation.
    For questions about sea transportation, air transportation and road transportation, please consult us.

    Packing and shipping

    Multifit Office-Our Company

    HQ located in Beijing, China and founded in 2009 Our factory located in 3/F,JieSi Bldg.,6 Keji West Road,Hi-Tech Zone,Shantou,Guangdong,China.
