Vmaxpower VMI-D 5K Powersun Series – 70A Fast Charging, Pure Sine Wave, Unstable Grid Ready
Video
Overview

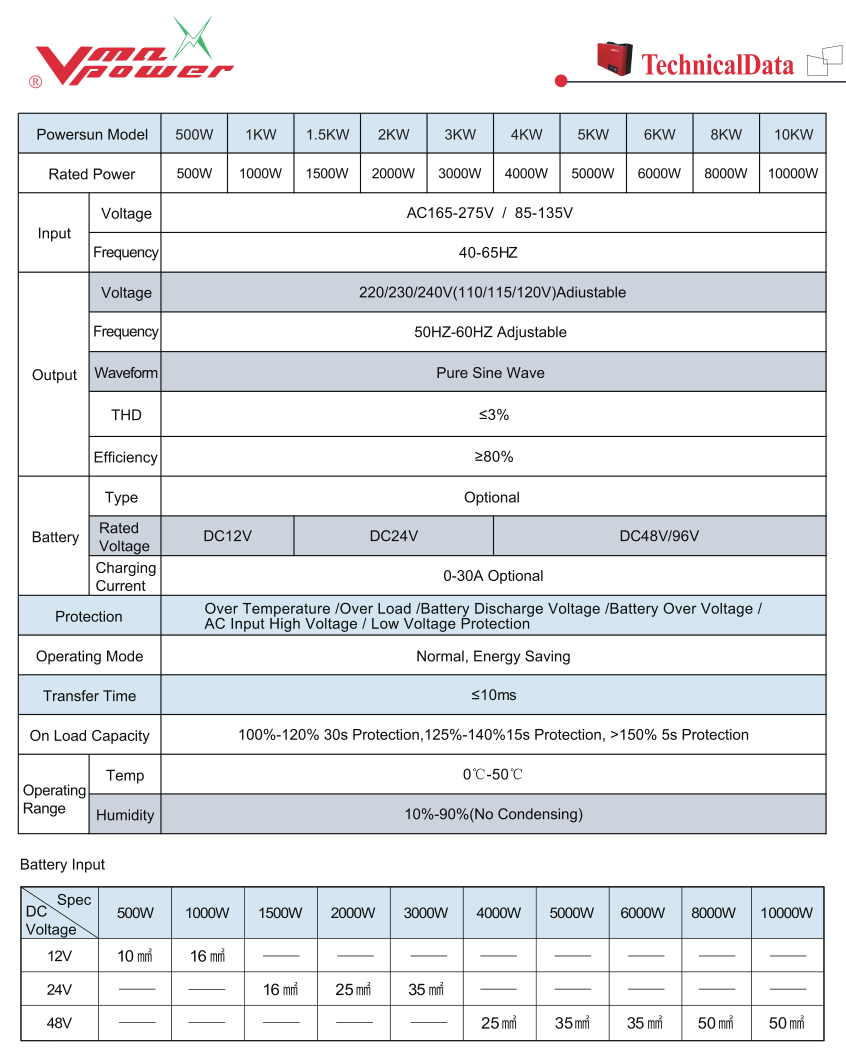

| Item | Specification |
| Product Series | Powersun Series |
| Model | VMI-D 5K (compatible with various power ratings) |
| Brand | Vmaxpower |
| Rated Power | 500W / 1000W / 1500W / 2000W / 3000W / 4000W / 5000W / 6000W / 8000W / 10000W |
| AC Input Voltage | AC 165-275V or 85-135V (selectable) |
| Input Frequency | 40-65Hz |
| Output Voltage | 220/230/240V or 110/115/120V (adjustable) |
| Output Frequency | 50Hz-60Hz (adjustable) |
| Output Waveform | Pure Sine Wave |
| THD | ≤3% |
| Efficiency | ≥80% |
| Battery Type | Optional (Lead-acid, Lithium, etc.) |
| Battery Rated Voltage | DC 12V / 24V / 48V / 96V |
| Charging Current | 0-30A optional (70A high-current customizable) |
| Protections | Over temperature, overload, battery under-voltage, battery over-voltage, AC input high/low voltage protection |
| Operating Mode | Normal mode, Energy saving mode |
| Transfer Time | ≤10ms |
| Overload Capacity | 100%-120%: 30s protection |
| 125%-140%: 15s protection | |
| >150%: 5s protection | |
| Operating Temperature | 0℃ ~ 50℃ |
| Operating Humidity | 10% ~ 90% (non-condensing) |
| Self-consumption | Below 1.2A (can reach 0 in energy-saving mode) |
| Fan Control | Activates when temperature ≥50℃ or load ≥70% |
| Thermal Shutdown | Automatic shutdown when temperature exceeds 100℃ |
| Display | LCD display / Digitized display (optional) |
| Communication | RS232 (optional) |
| Remote Control | Up to 100 meters |
| Transformer Type | Ring Transformer (LF technology) |
| Compatible Loads | Air conditioner, refrigerator, water pump, television, etc. |
| Special Features | Works with generators, suitable for unstable grid conditions |
Product Details

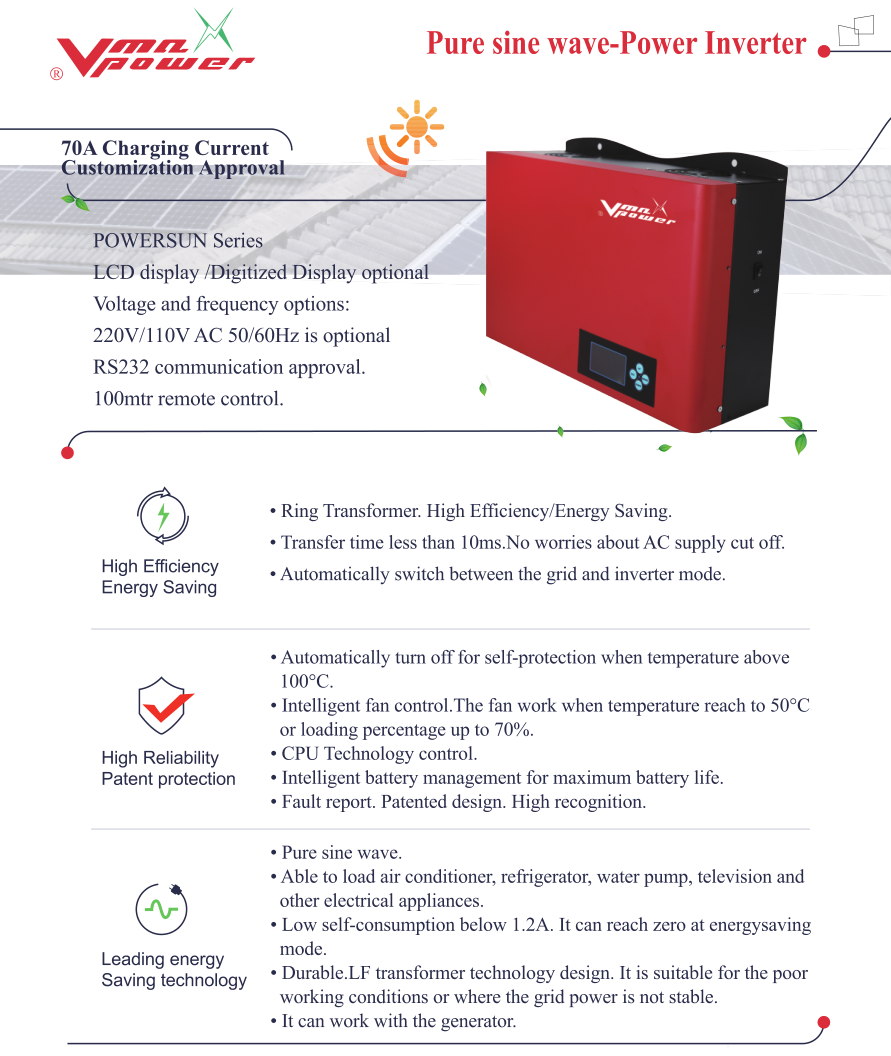

Product Characteristic
●USB Output and Mobile charge
●High Efficiency/Energy Saving
●Low self-Consumption below 1.2A.It can reach zero at energy saving mode.
●Make sure the load capacity is above 200W.or the inverter can not be restarted automatically
●Leading energy saving technology
●With the AVR function.AC voltage fluctuated is within +-5%
●Pure sine wave
●Extreme overload capacity and super load capacity
●Working Appliance:Air-conditioners.refrigerators.water pumps.TV.Light.fans and other household appliances and office appliances etc.
●Durable. LF transformer technology design.it is suitable for the poor working conditions or where the grid power is not stable
●LCD display /Digitized Display optional
●DC reverse polarity protection
●CPU Technology control
●Big Charging current. up to 70Amp.
●LCD display /Digitized Display optional：Grid powe.battery.AC output.Fault.Saving.
●Low voltage.Charging.
●Charging curren.Battery capacity.
●Intelligent battery management for maximum battery life
●Automatically switch between the grid and inverter mode
●Transfer time is below 4 ms if the grid power are cut off 220V/110V AC 50/60Hz is optional
●It can work with the generator
●Intelligent fan control mode.The fan work at Temperature ≥30℃.the inverter will protect by itself at temperature ≥100℃
Inverter is an indispensable part of photovoltaic system

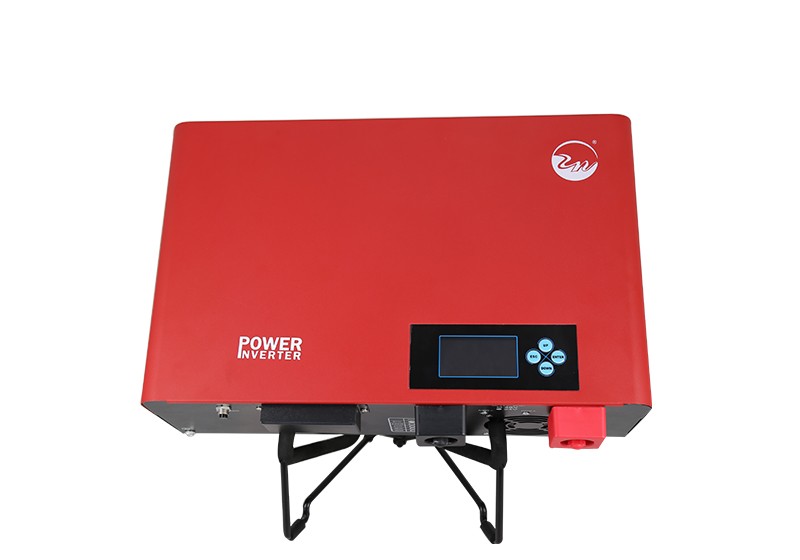

product picture
Application scenario
For shopping malls, medical institutions, construction sites, wasteland, etc., 3000W～8000W off-grid photovoltaic systems should be selected according to the load. If you need an inverter with a power of more than 8000W, please communicate with customer service for customization.
1000W-3000W inverters are recommended for ships, carports, toilets, and small-area systems.
Places prone to power outages, elevators, schools in outlying suburbs...
Travel camping, RV outing
Household appliances, electric tools
Engineering construction, photovoltaic system
