The latest Green energy Private customizing On Grid Comercial Solar Power Systems
Overview
Quick Details
- Warranty:
-
5YEARS, 25 Years Life Time
- Free installation service:
-
NO
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
Vmaxpower
- Model Number:
-
MU-SGS20KW
- Application:
-
Home, Commercial, Industrial
- Solar Panel Type:
-
Monocrystalline Silicon, Polycrystalline Silicon
- Controller Type:
-
MPPT, PWM
- Mounting Type:
-
Ground Mounting, Roof Mounting, Carport Mounting,BIPV Mounting
- Load Power (W):
-
20000W
- Output Voltage (V):
-
110V/120V/220V/230V
- Output Frequency:
-
50/60Hz
- Work Time (h):
-
24Hours
- Certificate:
-
CE/ISO9001
- Pre-sales project design:
-
Yes
- Product name:
-
On-grid Solar Power System
- Combiner box:
-
Anti-lighting Function
- Mounting type:
-
6m C type steel
- Solar panel:
-
Monocrystalline Silico
- AC output:
-
110V/120V/220V/230V
- Technical Support:
-
Complete Technical Support
- Capacity:
-
20000W
System Introduction
Rooftop solar grid-connected power generation system. The system is directly incorporated into national grid, without battery, charge of connected grid application paid by buyer. After successful installation of grid grid connected, in addition to household spending deduction, subsidies can be obtained as power degree. In assition, when electricity can't be used up, the state grid will repurchase it at local price.
Its operation mode is under the condition of solar radiation, the solar cell module array of the photovoltaic power generation system converts the solar energy into the output electricity, then，it is converted into alternating current from the grid-connected inverter to supply the building's own load. The excess or insufficient electricity is regulated by connecting to the grid, and the excess electricity can be sold to the country.
System Advantages
The system is independent of each other and can be controlled by itself to avoid large-scale power failure and high safety.
Easy installation and simple operation.
Make good use of idle roof resources to generate additional revenue.
Not only can they get government subsidies, but they can also sell excess electricity to grid companies.
Used to buy electricity with money, now take the surplus electricity to sell for money.
1.Professional solar brackets
Service life is over 30 years
The bracket is made of hot-dip galvanized 65um-100um high-strength steel and high strength building aluminum profile, which is rust resistant and durable.The use of counterweight, support structure system, does not damage the roof insulation and waterproof structure, to eliminate potential water leakage.Products cover flat roof bracket, inclined roof bracket, color steel tile bracket, arbor and carport bracket, etc.
2.Reasonable wiring
Through the reasonable wiring of technical personnel, the wiring layout is more reasonable and the system is more efficient.
3.Cement pier
Standard counterweight to withstand typhoon, snow and other inclement weather.
Power generation is stable and efficient
Sustainable returns over 25 years
System Componnent
1.Solar Panels
2.Distribution Box

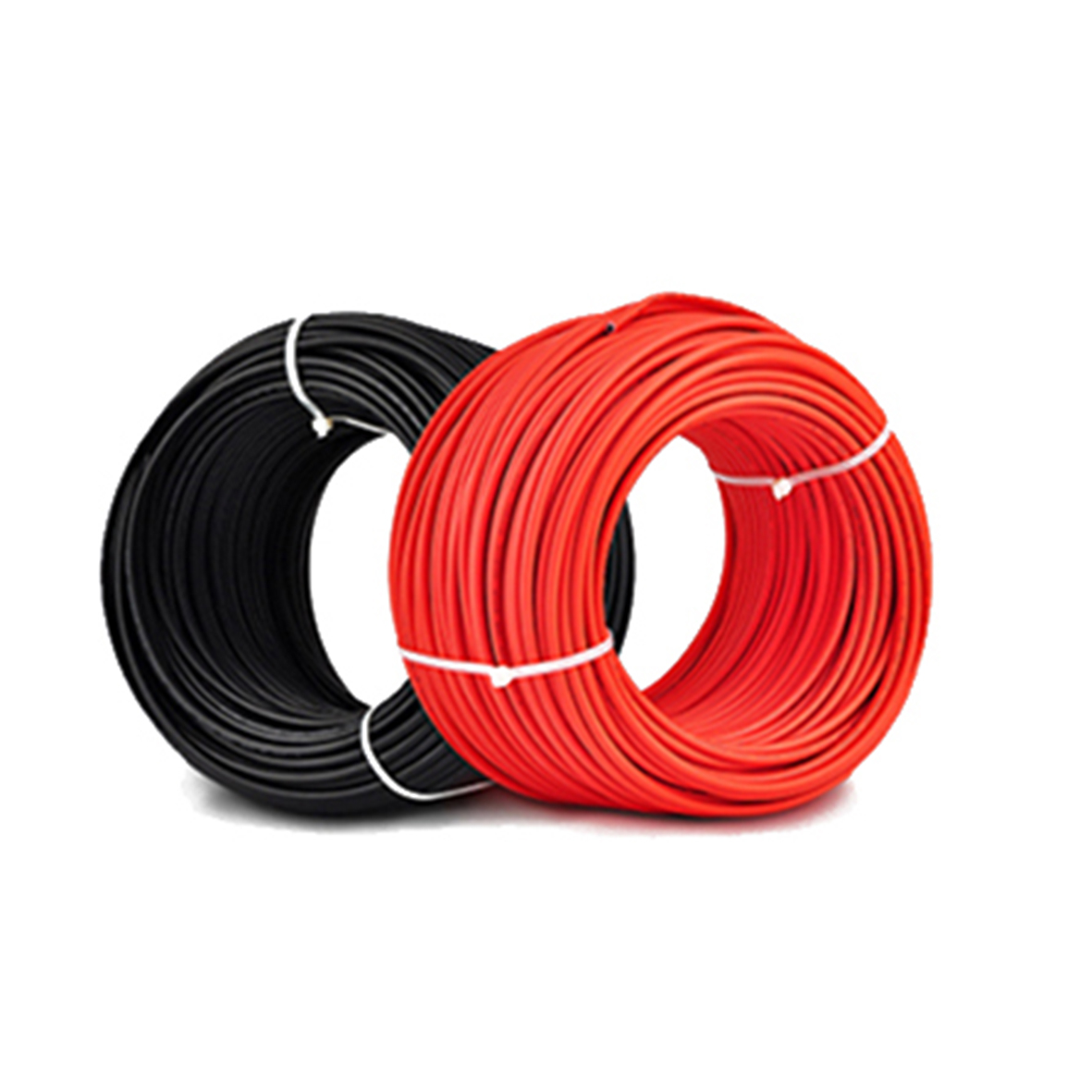

3.Solar cable &MC Four
4.Solar Hybrid Inverter with MPPT Controller
5.Four type of solar brackets are optional
Photovoltaic System Planning
What is your roof area?
What size system do you plan to build?
According to the provided roof area, the largest array of photovoltaic systems can be arranged
Provide the system installation guides after the system arrive
Keep the Best Angle
Because the fixed installation can not automatically track the sun's change of Angle like the tracking system, it needs to calculate the optimal inclination of the component arrangement according to the latitude to obtain the maximum solar radiation throughout the year and seek the maximum energy generation.
MULTIFIT: It is recommended to keep the best angle, so that the power generation rate will be high.
The Process of One-stop Service
Project consultation
Engineering installation
Professional and high-quality construction team, standardized construction process, to create high-quality power stations
Project design
According to the survey results, the best system design scheme and grid connection scheme are customized to escort the high-quality power station
On-grid test
Responsible for cooperating with the power supply company to complete the on-grid test, and realize self-generation and self-use and net access of surplus power
To applt for acces
Responsible for preparing the application materials and handling the grid-connected access
Operation maintenance
Provides an intelligent monitoring system
Complete quality assurance system
Provide lifetime maintenance
According to your installation location, we can provide a certain difference in the service, you can contact customer for consultation.
System Applications
Distributed photovoltaic systems can be installed anywhere there is sunlight.
Including rural areas, pastoral areas, mountainous areas, developing large, medium and small cities or buildings near the business district, the most widely used at present is the distributed photovoltaic grid project installed on the roof of buildings.Including schools, hospitals, shopping malls, villas, residents, factories, enterprises, car sheds, bus shelters and other roof which meet the load requirements of concrete, color steel plate and tile can be installed distributed PHOTOVOLTAIC power station.
The Cases
The residential solar power system can be widely applied to the sloping roof, platform, carport and other places of the houses built by residents.
Technical Data
| Model No. | System Capacity | Solar Module | Inverter | Installation Area | Annual energy output(KWH) | ||
| Power | Quantity | Capacity | Quantity | ||||
| MU-SGS5KW | 5000W | 285W | 17 | 5KW | 1 | 34m2 | ≈8000 |
| MU-SGS8KW | 8000W | 285W | 28 | 8KW | 1 | 56m2 | ≈12800 |
| MU-SGS10KW | 10000W | 285W | 35 | 10KW | 1 | 70m2 | ≈16000 |
| MU-SGS15KW | 15000W | 350W | 43 | 15KW | 1 | 86m2 | ≈24000 |
| MU-SGS20KW | 20000W | 350W | 57 | 20KW | 1 | 114m2 | ≈32000 |
| MU-SGS30KW | 30000W | 350W | 86 | 30KW | 1 | 172m2 | ≈48000 |
| MU-SGS50KW | 50000W | 350W | 142 | 50KW | 1 | 284m2 | ≈80000 |
| MU-SGS100KW | 100000W | 350W | 286 | 50KW | 2 | 572m2 | ≈160000 |
| MU-SGS200KW | 200000W | 350W | 571 | 50KW | 4 | 1142m2 | ≈320000 |
| Module No. | MU-SPS5KW | MU-SPS8KW | MU-SPS10KW | MU-SPS15KW | MU-SPS20KW | MU-SPS30KW | MU-SPS50KW | MU-SPS100KW | MU-SPS200KW | |
| Distribution Box | Essential internal components of the distribution box AC switch, photovoltaic reclosing; Lightning surge protection, grounding copper bar | |||||||||
| Bracket | 9*6m C type steel | 18*6m C type steel | 24*6m C type steel | 31*6m C type steel | 36*6m C type steel | Need to design | Need to design | Need to design | Need to design | |
| Photovotaic cable | 20m | 30m | 35m | 70m | 80m | 120m | 200m | 450m | 800m | |
| Accessories | MC4 connector C type steel connecting bolt and screw | MC4 connector Connecting bolt and screw Medium pressure block edge pressure block | ||||||||
Remarks:
The specifications are only used for the system comparison of different specifications. Multifit can also design different specifications according to the personalized needs of customers.
