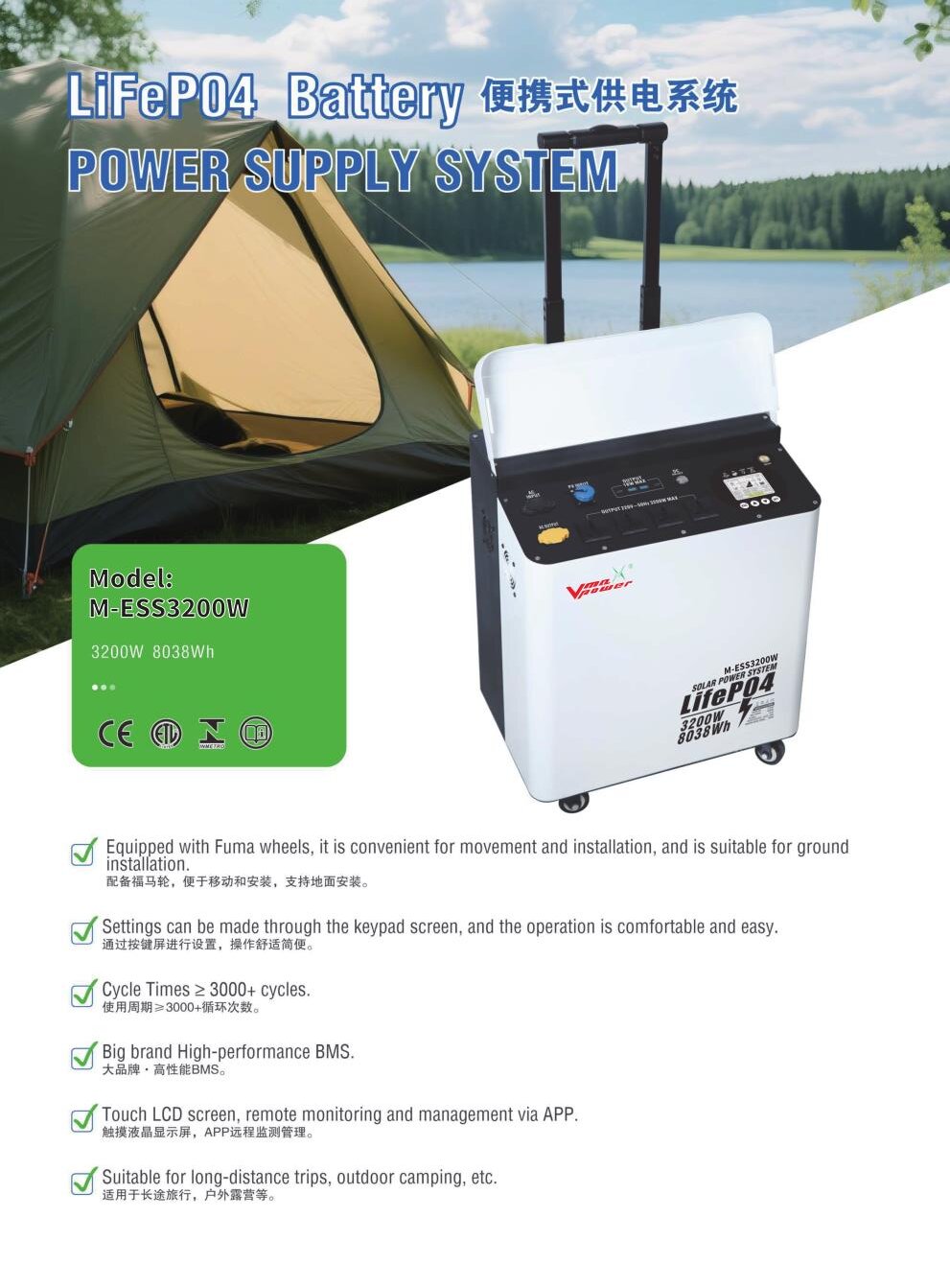

Stackable Energy Storage System with Hybrid Inverter & LiFePO₄ Battery M-ESS3200W

Short Description:

This all-in-one stackable energy storage system integrates a hybrid inverter with lithium iron phosphate (LiFePO₄) batteries, offering safe operation and a long cycle life (≥3000 cycles). The modular stacking design allows flexible capacity expansion, while the built‑in keypad and touch LCD screen enable easy local control. Remote monitoring and management are supported via a dedicated APP. Ideal for small homes, offices, and schools, it delivers 6.2kW inverter power with battery capacity options ranging from 6kWh to 16kWh.

Model: M-ESS3200W

Weight: 66.5 kg

Size: 450 x 335 x 545 mm

Protection Rating: IP30

Nominal Voltage: 25.6V

Battery Capacity: 314 Ah

Energy: 8038 Wh

Overcharge Detection Voltage: 29.2V

Overcharge Release Voltage: 27.6V

Overdischarge Detection Voltage: 20V

Overdischarge Release Voltage: 21.6V

Max. PV Input Power: 3500W

Grid-Connected Power: 2500W

MPPT Voltage Range: 45VDC - 450VDC

Send email to us

Product Detail

Product Tags

Video

Product Details

Application scenario

Technical Data

Category	Parameter	Value
Basic Info	Model	M-ESS3200W
	Weight	66.5 kg
	Size	450 x 335 x 545 mm
	Protection Rating	IP30
Battery Parameters	Nominal Voltage	25.6V
	Battery Capacity	314 Ah
	Energy	8038 Wh
	Overcharge Detection Voltage	29.2V
	Overcharge Release Voltage	27.6V
	Overdischarge Detection Voltage	20V
	Overdischarge Release Voltage	21.6V
	Automatic Shutdown Voltage	20V
	Standby Power Consumption	12 mW
Inverter & PV	Inverter Rated Power	3200W
	Grid-Connected Power	2500W
	AC Input Voltage Range	Default 180VAC-265VAC, Can be set to 100VAC-280VAC
	AC Input Frequency	47Hz-63Hz
	Max. AC Charging Current	60A
	Inverter Output Voltage	220/230/240 VAC ±3%
	Max. Inverter Efficiency	0.94
	Full Load Efficiency	0.92
	No-load Loss	25W
Solar Input (MPPT)	Max. PV Input Power	3500W
	Max. PV Input Current	18A
	Max. PV Charging Current	100A
	MPPT Voltage Range	45VDC - 450VDC
	MPPT Optimal Voltage	360VDC
