The pump inverter (which usually refers to the inverter that converts direct current to alternating current to drive the pump) is mainly applicable in situations where the power supply is unstable, there is no grid coverage, or flexible mobile power supply is required. The specific application scenarios include agricultural irrigation, livestock drinking water, domestic water use, and in conjunction with photovoltaic systems to supply power to sprinkler and drip irrigation systems. In areas far from the grid such as mountains and islands, it is used to extract groundwater or river water through solar energy + inverter + pump. The application scope of the pump inverter is very wide.
Based on the systematic classification of the entire energy flow path of “power input – power conversion – motor drive”, the water pump inverter can be divided into the following three types. After understanding the different characteristics of the water pump inverter, it will be easier to make a better choice.
I. DC Water Pump Inverter
The more accurate term for the direct water pump inverter is “Direct Water Pump Controller” or “DC-DC Speed Controller”. It is not a true inverter.
Input power source: Direct current (such as solar panels, batteries).
Output power source: Direct current (variable voltage/current).
Driven object: Direct water pump (usually permanent magnet direct current motor or brushless direct current motor).
Characteristics:
No inversion process: The core components are DC-DC conversion and motor speed control, with almost no conversion losses.
II. Ac water pump inverter
This is the standard, narrow sense “pump inverter”.
Input power source: Direct current (such as solar panels, batteries).
Output power source: Standard pure sine wave alternating current (fixed frequency such as 50Hz/60Hz, or adjustable within a small range).
Driven object: Ordinary AC pumps (three-phase or single-phase induction motors).

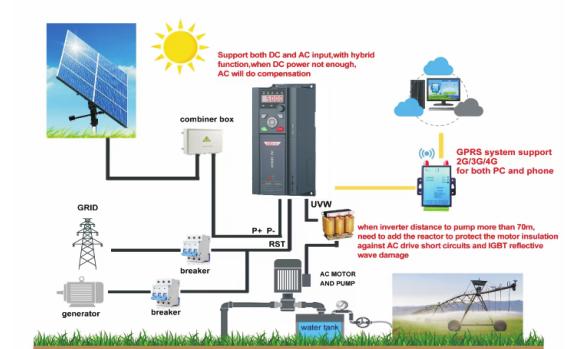

III. AC-DC Water Pump Inverter
This is an intelligent water pump driver with “dual input of AC and DC and variable frequency output”. It is one of the most advanced types.
Input power supply: It can be either DC (solar energy/battery) or AC (utility power/generator).
Output power supply: Variable-frequency and variable-voltage AC power.
Driven object: Motor water pump. Characteristics:
Dual-mode automatic switching: The greatest advantage is its extremely strong power adaptability. It can automatically and seamlessly switch to mains power or generator, ensuring uninterrupted water supply.
Ultra-high efficiency: Combining an efficient permanent magnet synchronous motor and variable frequency drive technology, the overall energy efficiency of the system is over 20%-30% higher than that of traditional AC systems, with significant energy-saving effects.
Which type of pump inverter are you interested in?
