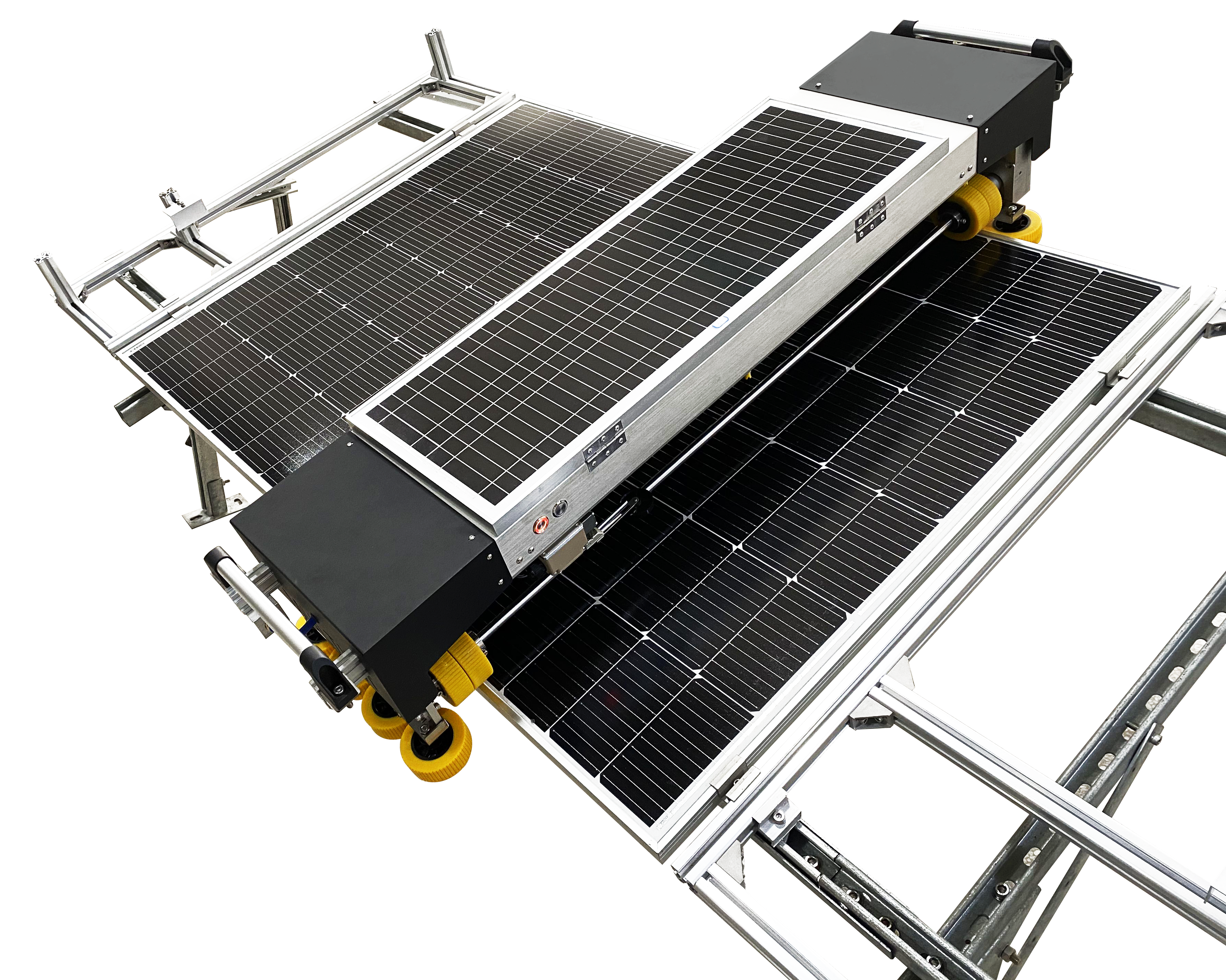

MULR990 Series Dry And Wet Mode Solar Panel Cleaning Robot Solar Panel Washing Machine PV Cleaning Machine For PV Project
Video
Overview
Quick Details
- Machine Type:
-
Other
- Applicable Industries:
-
Solar panel cleaning
- After Warranty Service:
-
Video technical support, Online support, Spare parts
- Local Service Location:
-
None
- Showroom Location:
-
None
- Video outgoing-inspection:
-
Not Available
- Machinery Test Report:
-
Provided
- Marketing Type:
-
New Product 2020
- Warranty of core components:
-
2 years
- Core Components:
-
Intelligent electronic control system
- Condition:
-
New
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
MULTIFIT
- Fuel:
-
Electric
- Certification:
-
CE
- Use:
-
Solar panel cleaning
- Cleaning Process:
-
Cold Water Cleaning, Dry Cleaning
- Cleaning Type:
-
Auto brush, Industrial Ultrasonic Cleaner
- Material:
-
solar panel, Metal / Coil
- Generator Power:
-
90W
- Dimension(L*W*H):
-
See details
- Warranty:
-
2 years,
- After-sales Service Provided:
-
Video technical support
- Product name:
-
990mm solar panel cleaning robot
- Battery Capacity(Ah):
-
24V/10Ah(MULR*2 is 20AH)
- Solar panel:
-
40W
- Protection:
-
IP65
- Weight:
-
29kg
- Installation Site:
-
solar power plant
Product Details
The second generation cleaning robot has more advantages than the robots on the market in terms of performance, product design, intelligent control, etc., such as portability, long life, intelligent APP controller, and easy to disassemble, install, adjust and maintain brushes.
2009 Multifit Establis , 280768 Stock Exchange
12+Years in Solar Industry 20+CE Certificates
Multifit Green energy. Here let ou enjoy one-stop shopping. Factory direct delivery.
Product Features
1. Excellent performance: lithium battery, brushless motor, durable.
2. Automatic operation: automatic start and stop, automatic return, adaptive.
3. Light weight: no more than 40kg, easy to handle.
4. Long range: 800M.
5. Efficient cleaning: special brush, cleaner, single machine can clean 1.2MWp per day.
6. High cost performance: low cost, fast return.
7. Modular design: widely applicable to a variety of array layout, easy to install.
8. The system is equipped with water cleaning into two modes of anhydrous cleaning.
9. Own power supply system: self-charging, convenient and efficient, solar power charging, independent power supply, battery life of 6-8 hours.
Accessory
Internet of things technology application: independent control, grouping, automatic cleaning
Intelligent control: Mini APP control by mobile, automatic cleaning time and cleaning mode can be set
Solar power system: self-charging-comes with a solar power system, convenient and efficient, can last 8-10 hours
1min disassembly and assembly of brushes: applicable to various arrangement arrays and various power stations.
1min disassembly and assembly of brushes: applicable to various arrangement arrays and various power stations.
When the brush wears out, the cleaning ability decreases. You can adjust the brush downward to increase the cleaning ability
Lightweight equipment ≈23 kg,The whole machine is about 30kg, which is more than 30% lighter than similar products, and it is convenient to carry.
Reference solar panel array
Single row, solar photovoltaic panel 990mm wide as array *1650/1950mm
before cleaning the solar panel，It is recommended to install ： Robot parking and Bridge device
Product advantages and product performance comparison
The second generation cleaning robot has more advantages than the robots on the market in terms of performance, product design, intelligent control, etc., such as portability, long life, intelligent APP controller, and easy to disassemble, install, adjust and maintain brushes.
Solar panel cleaning robot Data parameter
Model
MULR990
Module Length(mm)
990(992)
Obstacle crossing ability
20 mm
Traveling distance
0-800m
Width of machine
340mm
Height of machine
300mm
Length of machine
1360mm
Traveling speed
15-20(m/min)
Water Used Per Hour
210L/H (0.3mpa)
Generator Power
90W
Solar Panel
40w
Traveling speed
15-20 m/min
Battery Capacity
24V/10Ah(MULR*2 is 20AH)
Working Time
8-10 Hours
Ambient Temperature
～40℃-70℃
Weight of machine
29kg
Cleaning Mode
Dry Cleaning
Cleaning way
One time/Many times/The Rubbing
Other special functions
Speed control of forward and reverse
Optional Configuration
The bridge device
Water washing device
The wireless remote controller/Mini APP of Wechat
Warranty
The solar panel cleaning robot has a 2-year limited product warranty. Can be customized according to customer needs (solar panel size)
Package & Shipping
Batteries have high requirements for transportation.
For questions about sea transportation, air transportation and road transportation, please consult us.
Multifit Office-Our Company
HQ located in Beijing, China and founded in 2009 Our factory located in 3/F,JieSi Bldg.,6 Keji West Road,Hi-Tech Zone,Shantou,Guangdong,China.
