M-WPS Window shading photovoltaic power generation system

Short Description:

The M-WPS Series is an innovative Building Integrated Photovoltaic (BIPV) solution that combines advanced flexible thin-film solar technology with modern window design. Ideal for green buildings, zero-energy homes, and commercial facades, it transforms ordinary windows into smart energy-generating surfaces—without compromising aesthetics or functionality.


  • Lightweight Design: 80% lighter than traditional rigid panels
  • Low Maintenance: No moving parts; simple periodic dusting
  • Flexible Installation: Suitable for balcony railings, glass walls, and curtain walls
  • Aesthetic & Functional: Provides shading, rain protection, and reduces direct sunlight
  • High Efficiency: Monocrystalline silicon with ≥18% conversion rate
  • Intelligent Platform: Remote monitoring and control via smartphone app
  • Front Panel: High-transmittance ETFE or PET composite
  • Photovoltaic Layer: Organic Photovoltaics (OPV) or thin-film technology
  • Backsheet: Flexible polymer composite
  • Frame: Borderless design or optional aluminum alloy frame
  • Product Detail

    Product Tags

    Overview

    Quick Details
    Dimensions :
    210×150×38mm
    Weight:
    0.82kg
    Ingress Protection:
    IP67
    Cooling:
    Natural cooling (fanless)
    Ambient Temperature:
    -20℃ ~ +50℃
    Panel Power:
     210W
    Working Voltage / Current:
    15.66V / 13.41A
    Dimensions (panel):
    1205×900×3 mm
    VOC / ISC:
    18.66V / 14.34A
    Max input voltage:
    60Vdc (all models)
    MPPT voltage range:
    30-54Vdc
    Start voltage:
    >22Vdc
    Max input current:
    9A
    Peak Efficiency:
    92.70%
    CEC Weighted Efficiency:
    92.50%
    MPPT Efficiency:
    99.80%
    Night power consumption:
    < 0.1W (standby)
    Anti-backflow meter:
    Optional accessory
    Transmission power:
    +17dBm ~ +14dBm (standard)
    Quality System:
    ISO 9001
    Safety:
    IEC 61730
    Performance:
    IEC 61215
    Fire Rating:
    UL 94 V-0
    Environmental:
    RoHS, REACH
    Building Code:
    Compliant with local building standards
    Communication:
    Wi-Fi, RS485, Smart Life App

    Product Introduction

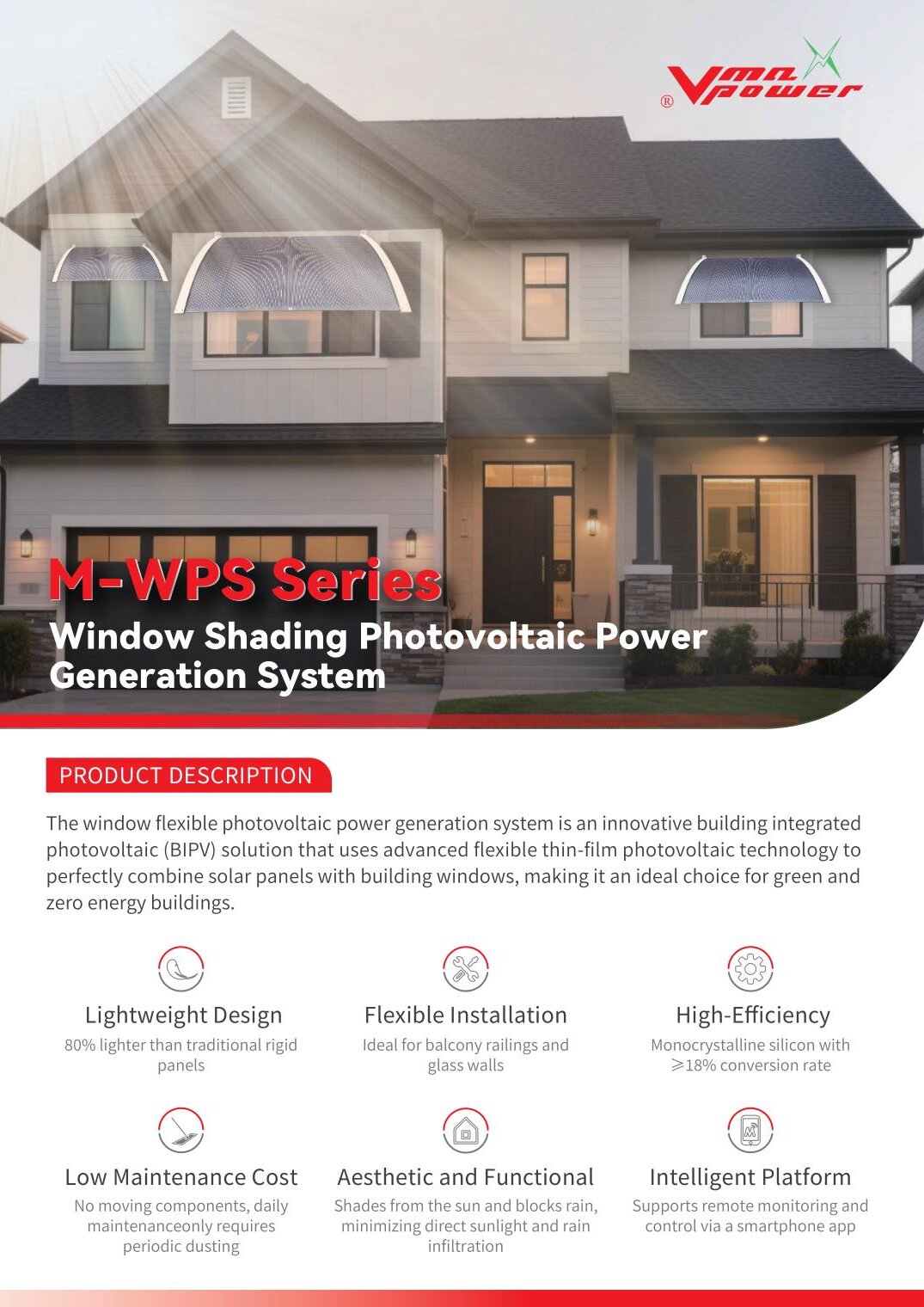

    样册1

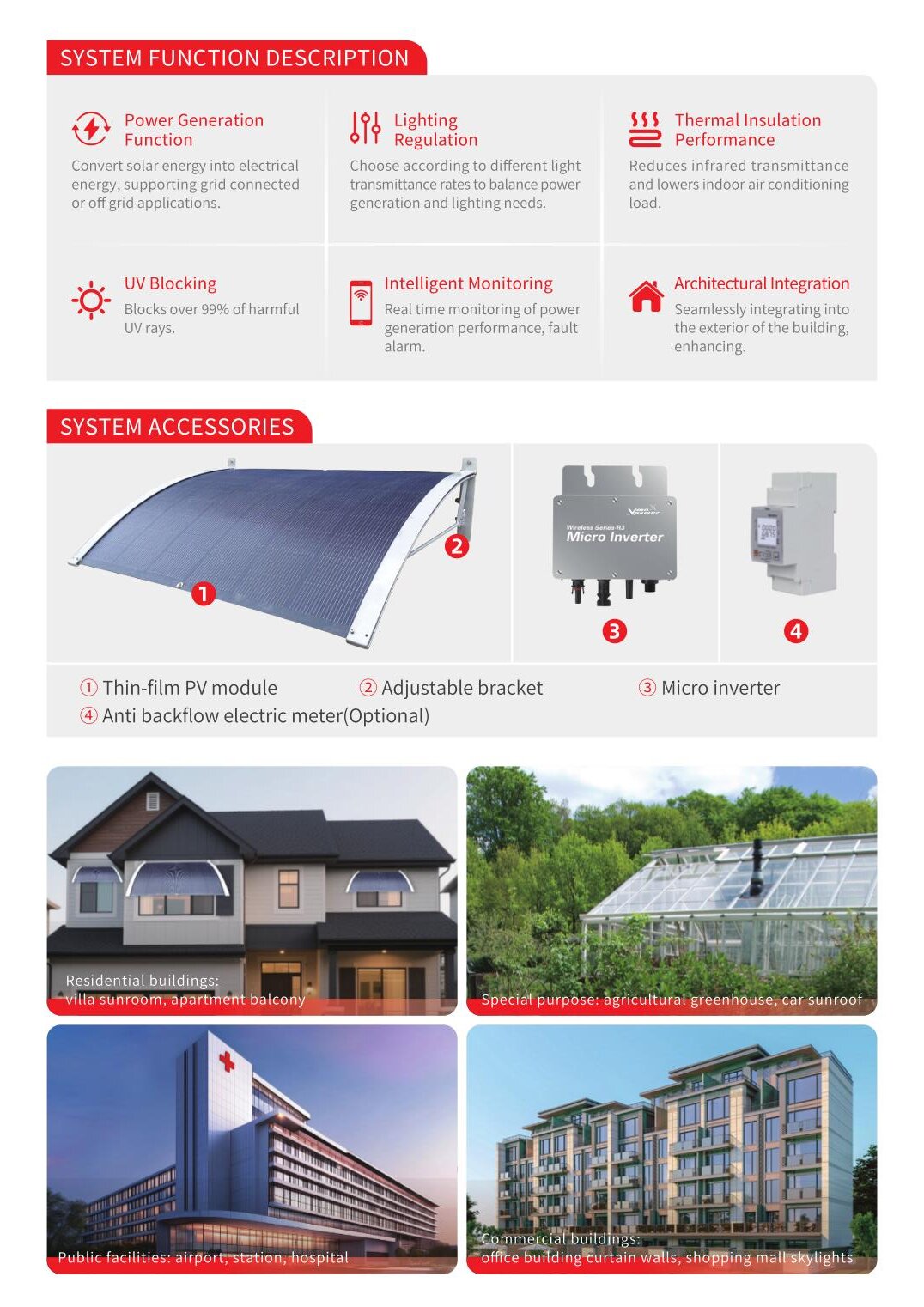

    样册2

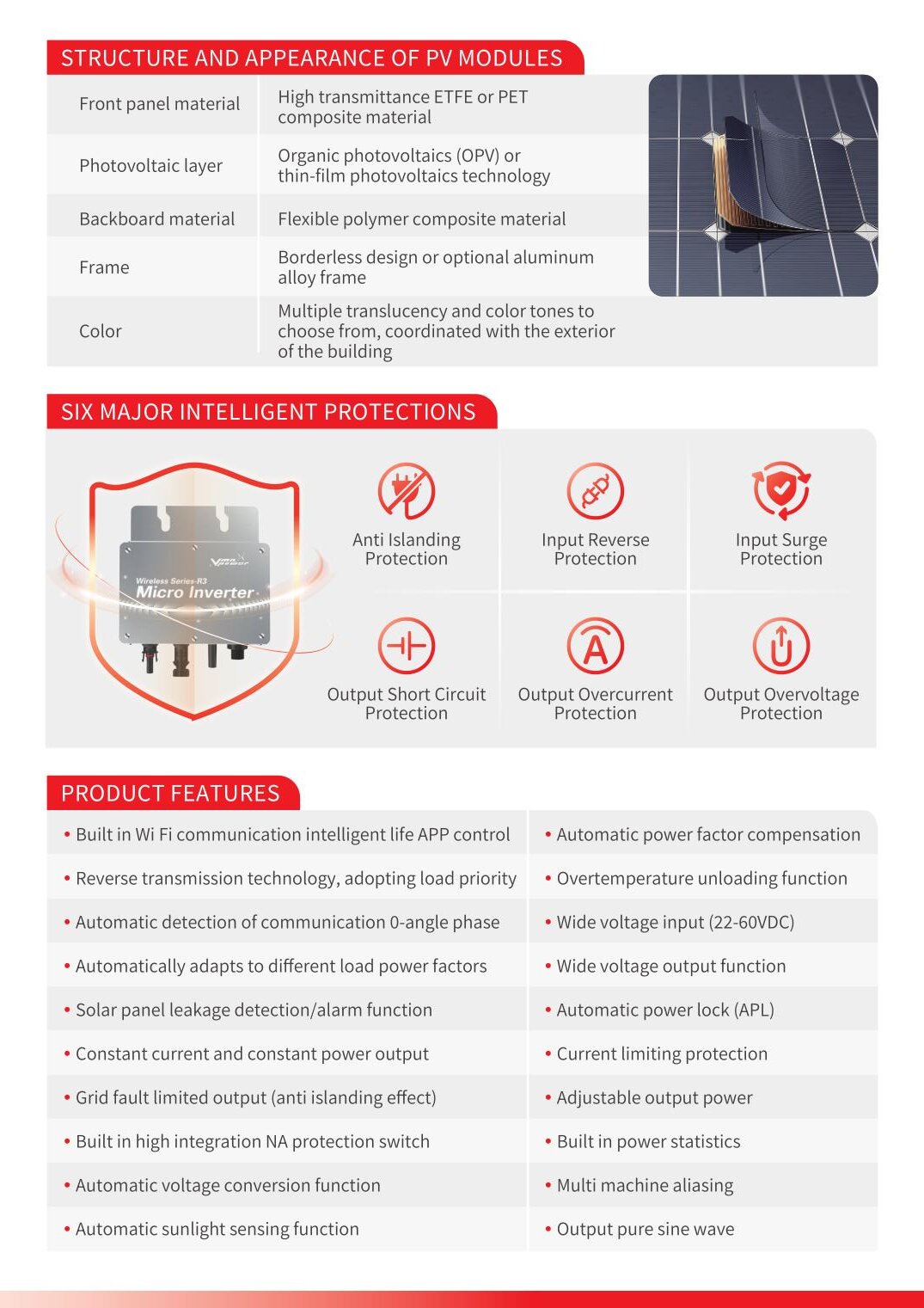

    样册3

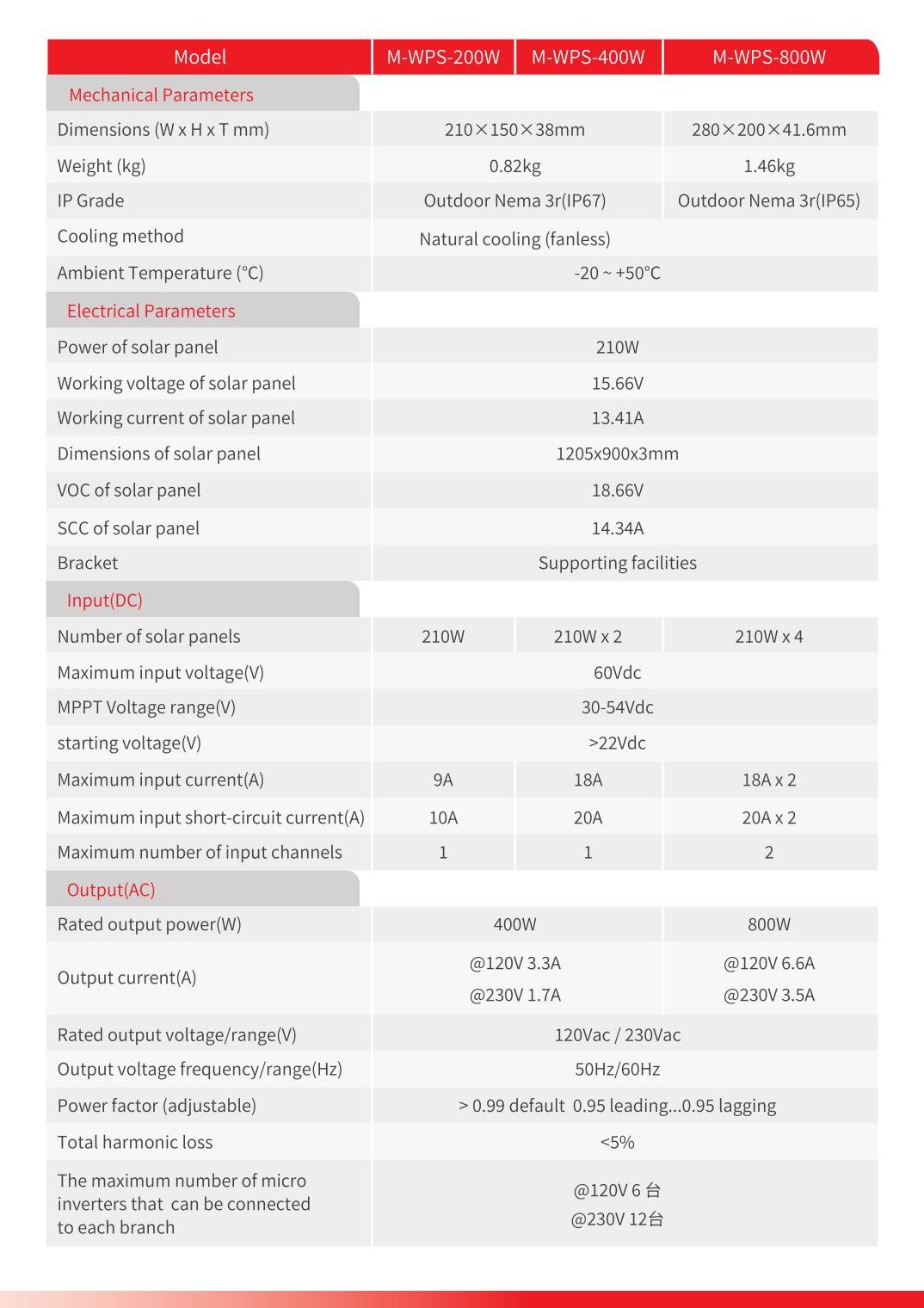

    样册4

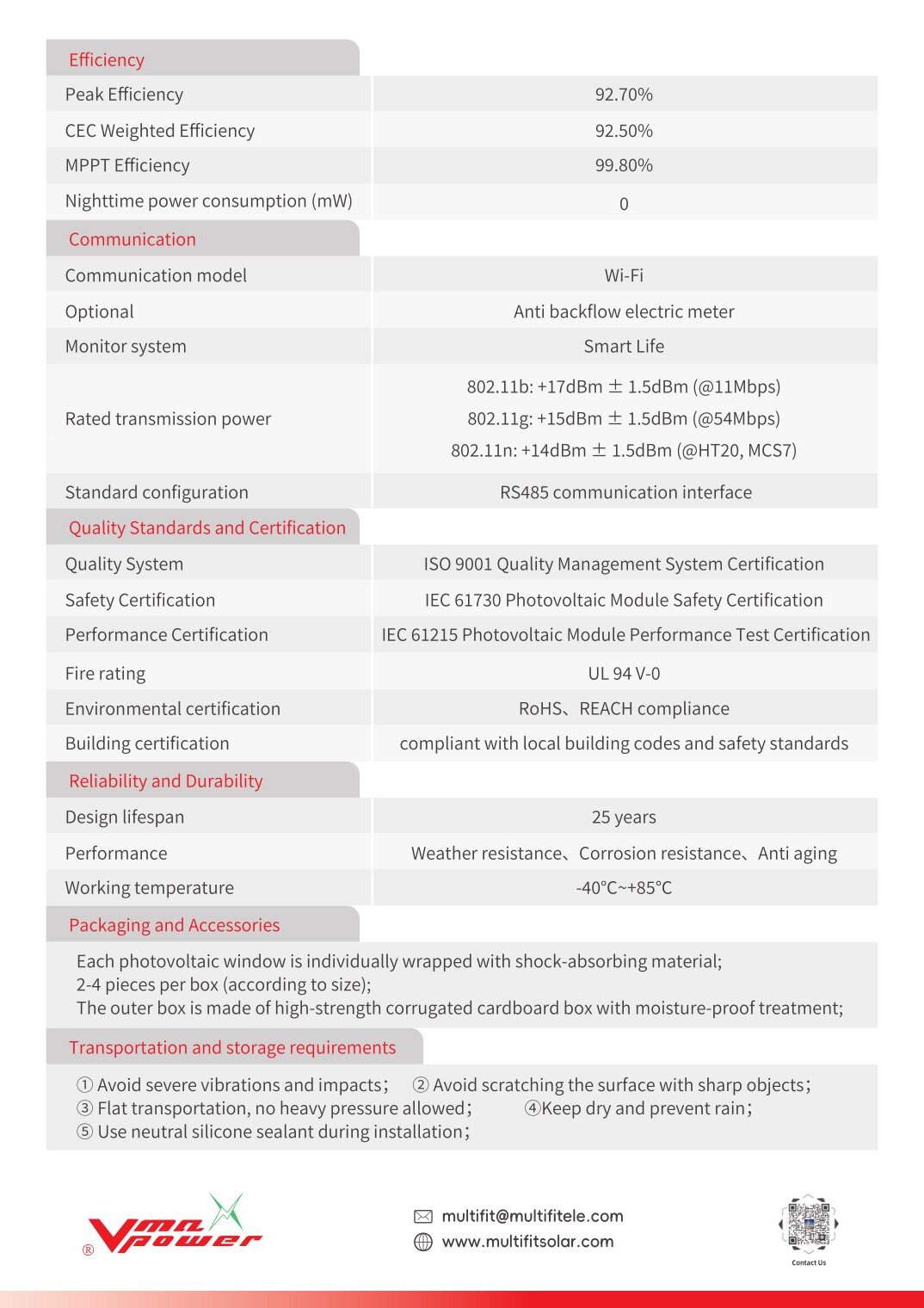

    样册5

    2009 Multifit Establis , 280768 Stock Exchange

    — MULTIFIT
    Beijing Multifit Electrical Technology Co.,Ltd

    15+Years in Solar Industry  20+CE Certificates

    — MULTIFIT
    Beijing Multifit Eelectrical Technology Co.,Ltd

    Multifit Green energy. Here let ou enjoy one-stop shopping. Factory direct delivery.

    — MULTIFIT
    Beijing Multifit Eelectrical Technology Co.,Ltd

    Package & Shipping

    Batteries have high requirements for transportation.
    For questions about sea transportation, air transportation and road transportation, please consult us.

    Packing and shipping

    Multifit Office-Our Company

    HQ located in Beijing, China and founded in 2009 Our factory located in 3/F,JieSi Bldg.,6 Keji West Road,Hi-Tech Zone,Shantou,Guangdong,China.

    Guangdong Multifit
    MPPT inverter test-red-3
    MULTIFIT (3)
    ABOUT US VMAXPOWER-2
    ABOUT US VMAXPOWER
    MPPT inverter test-blue

    FAQ

     Guess what you want to know

    CERTIFICATE

    Company Qualification

    ABOUT US

    Multifit was founded in 2009...
