M-HF Series EU Standard Pure Sine Wave Hybrid Solar Inverter – Single & Three Phase, Off-Grid and Hybrid On/Off-Grid, 1.2kW to 22.5kW

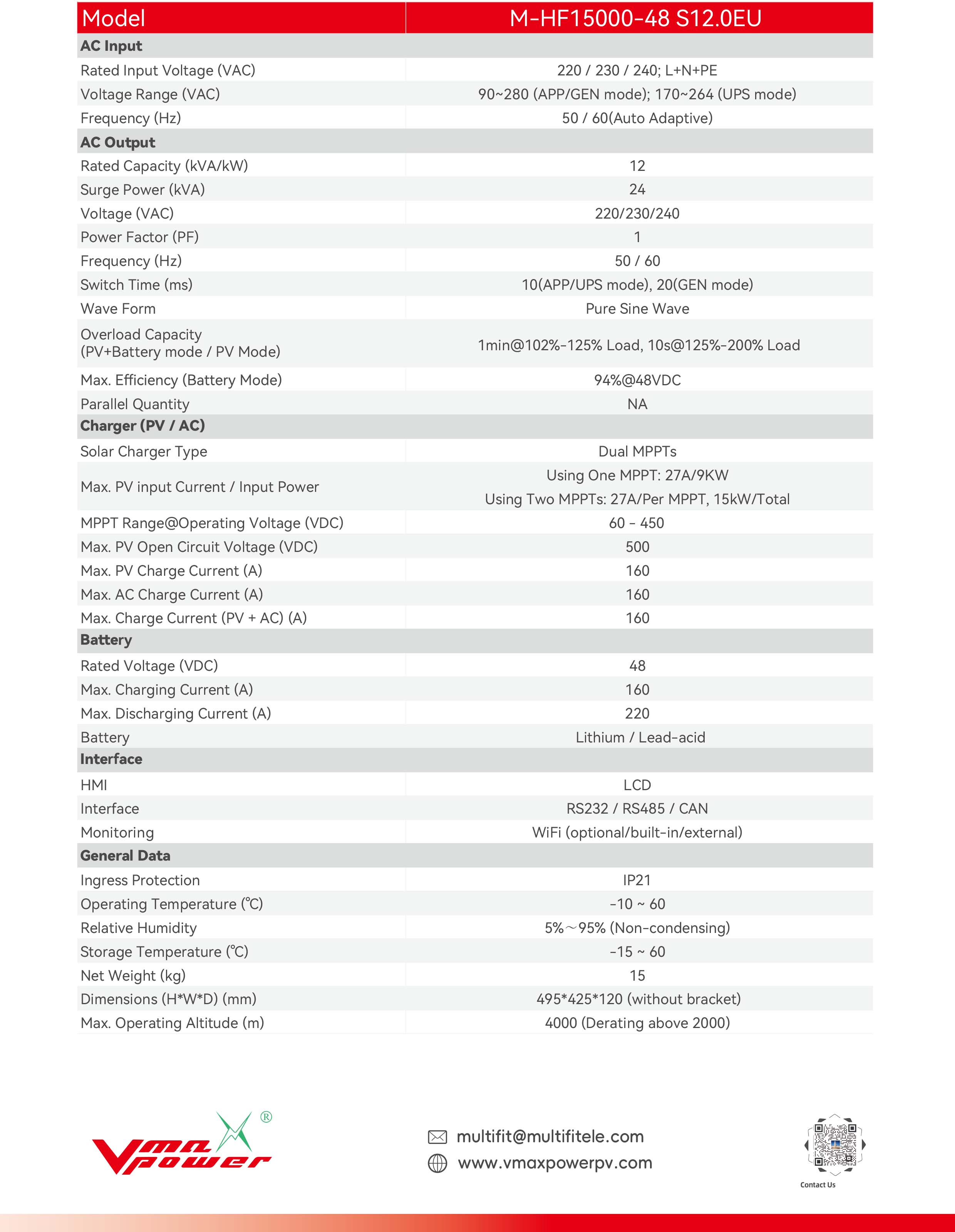

| Parameter | 1.2KW 220V EU Standard | 2KW 220V EU Standard | 3.6KW 220V EU Standard | 6.5KW 220V EU Standard | 12KW 220V EU Standard |
| Model | M-HF800-12 S1.2EU | M-HF3000-12 S2.0EU | M-HF5000-24 S3.6EU | M-HF9000-48 S6.5EU | M-HF15000-48 S12.0EU |
| Type | Single-phase Off-grid Inverter | Single-phase Off-grid Inverter | Single-phase Off-grid Inverter | Single-phase Off-grid Inverter | Single-phase Off-grid Inverter |
| Rated Capacity | 1.2 kVA/kW | 2 kVA/kW | 3.6 kVA/kW | 6.5 kVA/kW | 12 kVA/kW |
| Surge Power | 2.4 kVA | 4 kVA | 7.2 kVA | 12 kVA | 24 kVA |
| AC Input Voltage | 208/220/230/240 VAC | 220/230/240; L+N+PE | 220/230/240; L+N+PE | 220/230/240; L+N+PE | 220/230/240; L+N+PE |
| AC Input Range | — | 90-280 (APP/GEN); 170-264 (UPS) | 90-280 (APP/GEN); 170-264 (UPS) | 90-280 (APP/GEN); 170-264 (UPS) | 90-280 (APP/GEN); 170-264 (UPS) |
| Frequency | 50/60 Hz | 50/60 Hz Auto Adaptive | 50/60 Hz Auto Adaptive | 50/60 Hz Auto Adaptive | 50/60 Hz Auto Adaptive |
| Output Voltage | 208/220/230/240 VAC | 208/220/230/240 VAC | 208/220/230/240 VAC | 208/220/230/240 VAC | 220/230/240 VAC |
| Power Factor | 1 | 1 | 1 | 1 | 1 |
| Switch Time | 10ms (APP/UPS/GEN) | 10ms (APP/UPS) / 20ms (GEN) | 10ms (APP/UPS) / 20ms (GEN) | 10ms (APP/UPS) / 20ms (GEN) | 10ms (APP/UPS) / 20ms (GEN) |
| Waveform | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave | Pure Sine Wave |
| Overload Capacity | 1min@102%-120%, 10s@120%-200% | Long term@102%-125%, 10s@125%-250% | 1min@102%-110%, 10s@110%-200% | 1min@102%-120%, 10s@120%-200% | 1min@102%-125%, 10s@125%-200% |
| Max. Efficiency | 90%@12VDC | 91%@12VDC | 92.7%@24VDC | 94%@48VDC | 94%@48VDC |
| Solar Charger | Built-in 50A | Built-in 100A | Built-in 100A | Built-in 120A | Dual MPPT |
| Max. PV Input Current/Power | 18A / 800W | 18A / 3000W | 18A / 5000W | 27A / 9000W | Single MPPT: 27A/9KW; Dual MPPT: 27A/string, 15kW total |
| MPPT Range | 17-115 VDC | 30-400 VDC | 40-450 VDC | 60-450 VDC | 60-450 VDC |
| Max. PV Open Circuit Voltage | 115 VDC | 450 VDC | 500 VDC | 500 VDC | 500 VDC |
| Max. PV Charge Current | 50A | 100A | 100A | 120A | 160A |
| Max. AC Charge Current | 50A | 100A | 100A | 120A | 160A |
| Max. Total Charge Current | 100A | 100A | 100A | 120A | 160A |
| Battery Rated Voltage | 12 VDC | 12 VDC | 24 VDC | 48 VDC | 48 VDC |
| Max. Charging Current | 100A | 100A | 100A | 120A | 160A |
| Max. Discharging Current | 110A | 150A | 150A | 140A | 220A |
| Battery Type | Lithium/Lead-acid | Lithium/Lead-acid | Lithium/Lead-acid | Lithium/Lead-acid | Lithium/Lead-acid |
| Display | LCD | LCD | LCD | 5 inch LCD | LCD |
| Interface | RS232/RS485(optional)/CAN(optional) | RS485/CAN/RS232/CT(optional)/Meter(optional) | RS485/CAN/RS232 | RS232/RS485/CAN, CT(optional)/Meter(optional) | RS232/RS485/CAN |
| Monitoring | WiFi (optional/built-in/external) | WiFi (optional/built-in/external) | WiFi (optional/built-in/external) | WiFi (optional/built-in/external) | WiFi (optional/built-in/external) |
| Ingress Protection | IP21 | IP21 | IP21 | IP21 | IP21 |
| Operating Temperature | -10~60 ℃ | -10~60 ℃ | -10~60 ℃ | -10~60 ℃ | -10~60 ℃ |
| Humidity | 5%-95% Non-condensing | 5%-95% Non-condensing | 5%-95% Non-condensing | 5%-95% Non-condensing | 5%-95% Non-condensing |
| Storage Temperature | -15~60 ℃ | -15~60 ℃ | -15~60 ℃ | -15~60 ℃ | -15~60 ℃ |
| Net Weight | 3.5 kg | 4.5 kg | 6.2 kg | 8.4 kg | 15 kg |
| Dimensions | 301×217×97 mm | 331×270×100 mm | 420×284×94 mm | 410×336×110 mm | 495×425×120 mm |
| Max. Operating Altitude | 4000m (Derating above 2000m) | 4000m (Derating above 2000m) | 4000m (Derating above 2000m) | 4000m (Derating above 2000m) | 4000m (Derating above 2000m) |

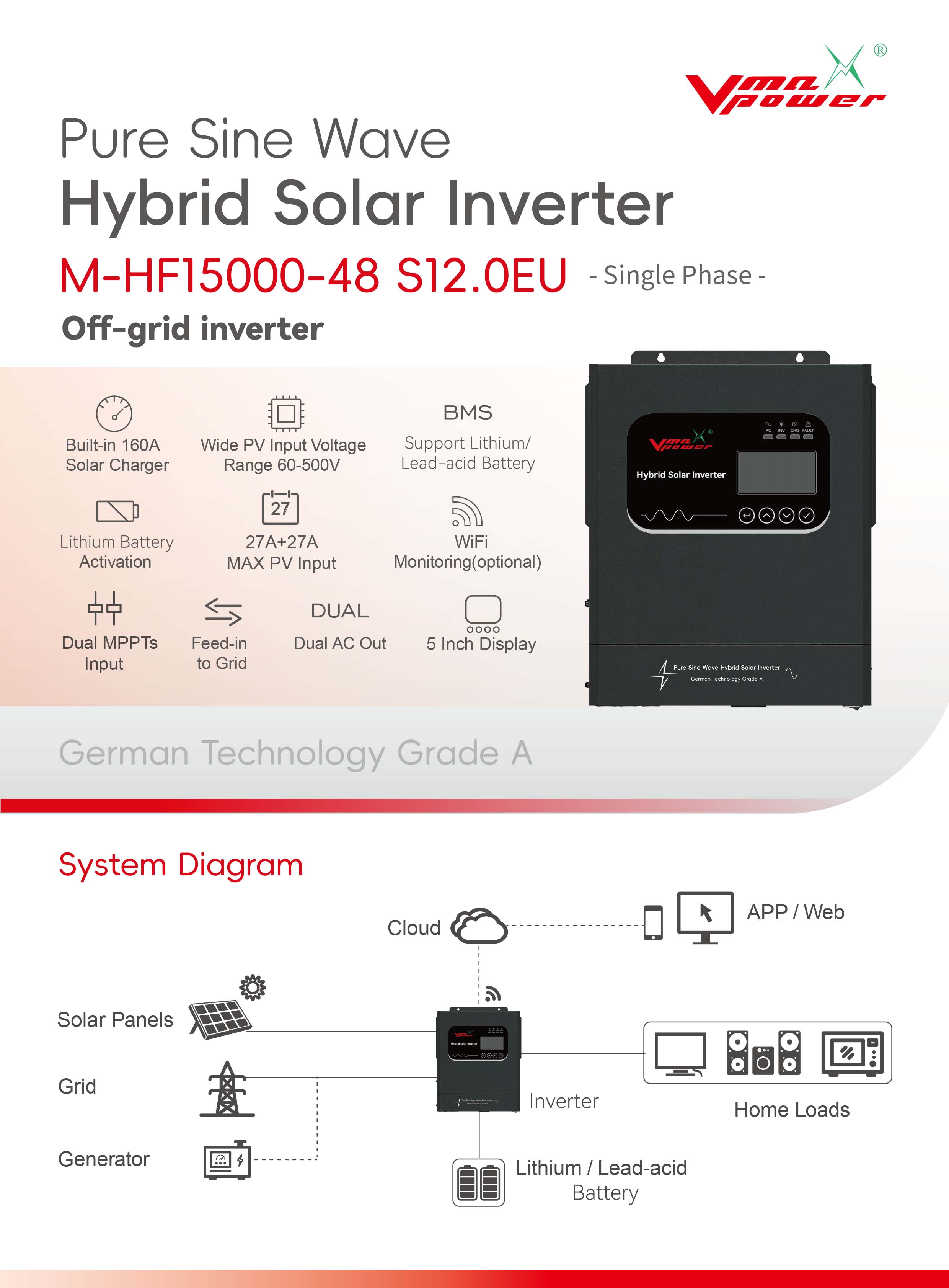

Product Details
Product Characteristic
Pure sine wave output with German Technology Grade A.
Built-in solar charger with wide PV input voltage range up to 500V.
Supports lithium and lead-acid batteries with activation function.
Dual MPPT trackers for higher energy yield on selected models.
Parallel capability up to 9 units for off-grid models and 3 units for hybrid models.
Hybrid on/off-grid operation with feed-in to grid and dual AC output.
Supports generator and smart load integration.
LCD or touch screen display with optional WiFi monitoring.
Comprehensive protection: Type II SPD, anti-islanding, insulation monitoring, and more.
Certified to IEC/EN62109, EN50549, and other relevant standards.

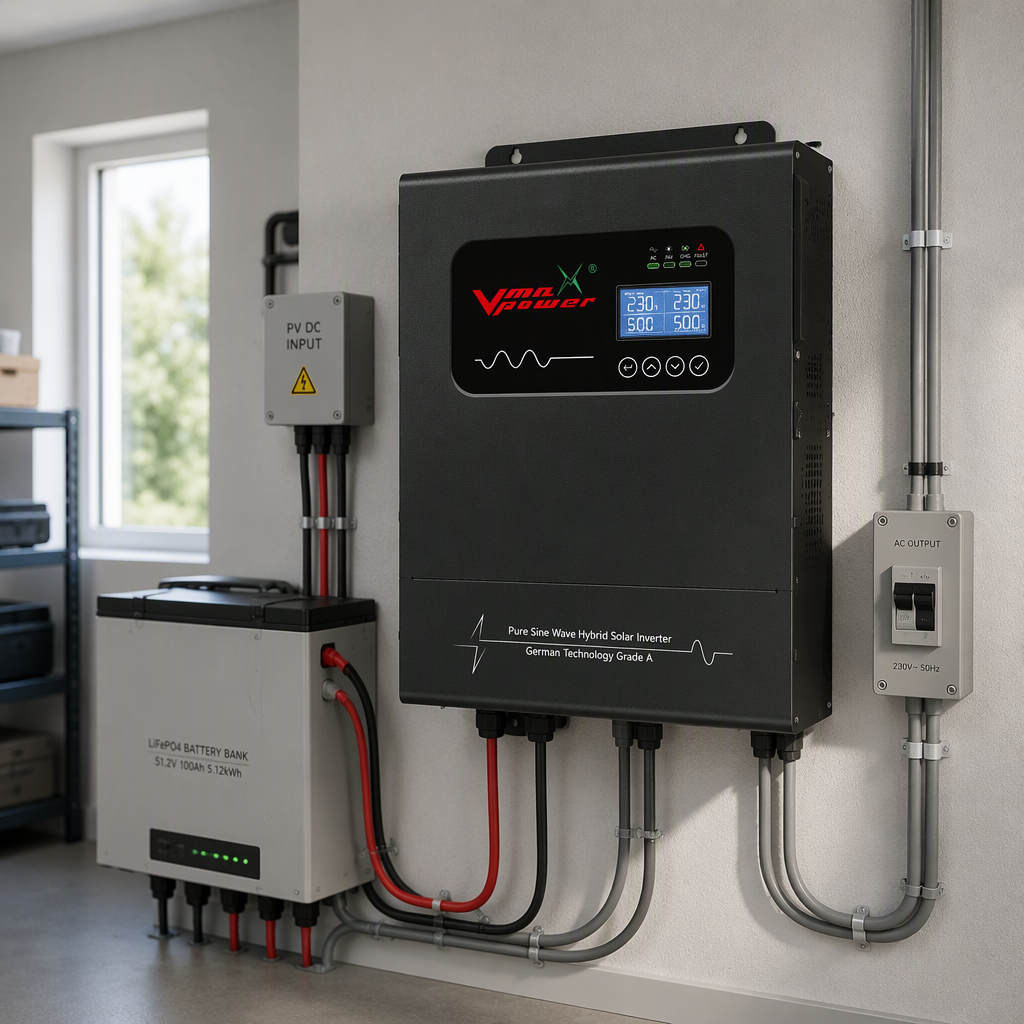

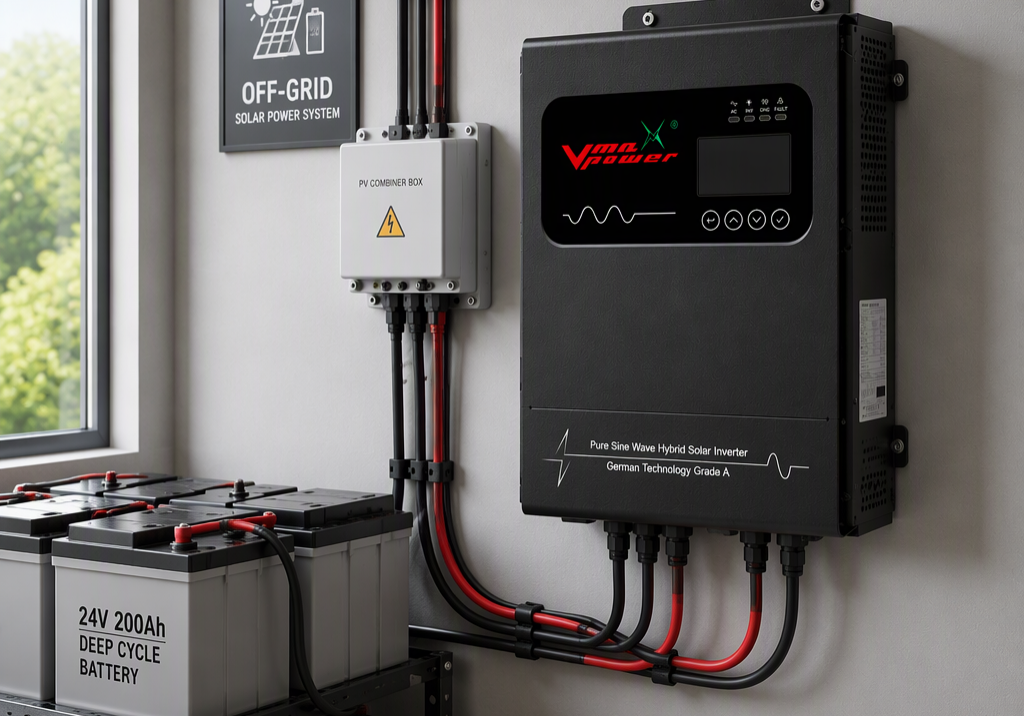

product picture
Application scenario
For shopping malls, medical institutions, construction sites, wasteland, etc., 3000W～8000W off-grid photovoltaic systems should be selected according to the load. If you need an inverter with a power of more than 8000W, please communicate with customer service for customization.
1000W-3000W inverters are recommended for ships, carports, toilets, and small-area systems.
Places prone to power outages, elevators, schools in outlying suburbs...
Travel camping, RV outing
Household appliances, electric tools
Engineering construction, photovoltaic system
