M-BPS Series Balcony Photovoltaic System

Short Description:

The M-BPS Series Balcony Photovoltaic System is designed for modern urban living. Featuring lightweight flexible monocrystalline silicon solar panels—80% lighter than traditional rigid panels—it can be seamlessly installed on balcony railings, glass curtain walls, courtyard fences, and even curved or uneven surfaces without drilling.

With a plug-and-play design and a high-efficiency microinverter, the system connects directly to a standard household socket for grid-tied power generation, helping to reduce electricity bills by powering daytime household loads. Real-time monitoring is available via a dedicated mobile APP, providing instant visibility into power output, daily generation, and CO₂ savings.

Whether for a high-rise apartment balcony, a villa courtyard, a carport, or a glass curtain wall, the M-BPS Series transforms sunlight into clean, usable energy—bringing green power effortlessly into everyday life.


  • Product Series: M-BPS Series
  • Product Name: Balcony Photovoltaic System
  • Key Features: Lightweight flexible modules, no-drill installation, high-efficiency monocrystalline silicon, APP monitoring support
  • Applications: Balcony railings, glass curtain walls, courtyard gardens, building facades
  • Peak Power (Pmax): 100 Wp / 150 Wp / 200 Wp (optional)
  • Open Circuit Voltage (Voc): 21.6 V (for 100W typical)
  • Short Circuit Current (Isc): 6.2 A
  • Voltage at MPP (Vmpp): 18.2 V
  • Current at MPP (Impp): 5.5 A
  • Maximum System Voltage: 1000 V DC
  • Microinverter: 300 W / 600 W, AC 220V–240V grid-tied type
  • Dimensions: 1050 × 540 × 2.5 mm (100W)
  • Product Detail

    Product Tags

    Overview

    Quick Details
    Communication :
    Wi-Fi / Bluetooth (via microinverter)
    Monitoring Method:
    Mobile APP (iOS / Android)
    Fire Rating:
    Class C / UL 94 V-0
    Temperature Coefficient (Pmax):
    -0.36% / ℃
    Operating Temperature Range:
    -20℃ ~ +85℃
    Mechanical Load:
     Front static load 5400 Pa, rear static load 2400 Pa
    Wind Load Resistance:
    System withstands 120 km/h wind speed
    Recommended Tilt Angle:
    Vertical installation or 0°–30°
    Suitable Surfaces:
    Metal, glass, plastic, smooth walls, railings
    Inverter Enclosure Protection:
    IP65
    Maximum Input Voltage:
    60 V (at inverter side)
    Output Waveform:
    Pure sine wave
    Microinverter:
    300 W / 600 W, AC 220V–240V grid-tied type
    Recommended Module Quantity:
    1–4 pcs (configurable in series or parallel)
    Junction Box:
    IP68 waterproof, MC4 compatible connector
    Surface Material:
    High-transparency ETFE / Fluoropolymer composite
    Minimum Bending Radius:
    ≥ 300 mm
    Dimensions:
    1050 × 540 × 2.5 mm (100W)
    Weight:
    Approx. 1.8 kg (100W), 80% lighter than traditional rigid panels
    Maximum System Voltage:
    1000 V DC
    Cell Type:
    Monocrystalline Silicon
    Open Circuit Voltage (Voc):
    21.6 V (for 100W typical)
    Short Circuit Current (Isc):
    6.2 A
    Voltage at MPP (Vmpp):
    18.2 V
    Current at MPP (Impp):
    5.5 A
    Maximum System Voltage:
    1000 V DC

    Product Introduction

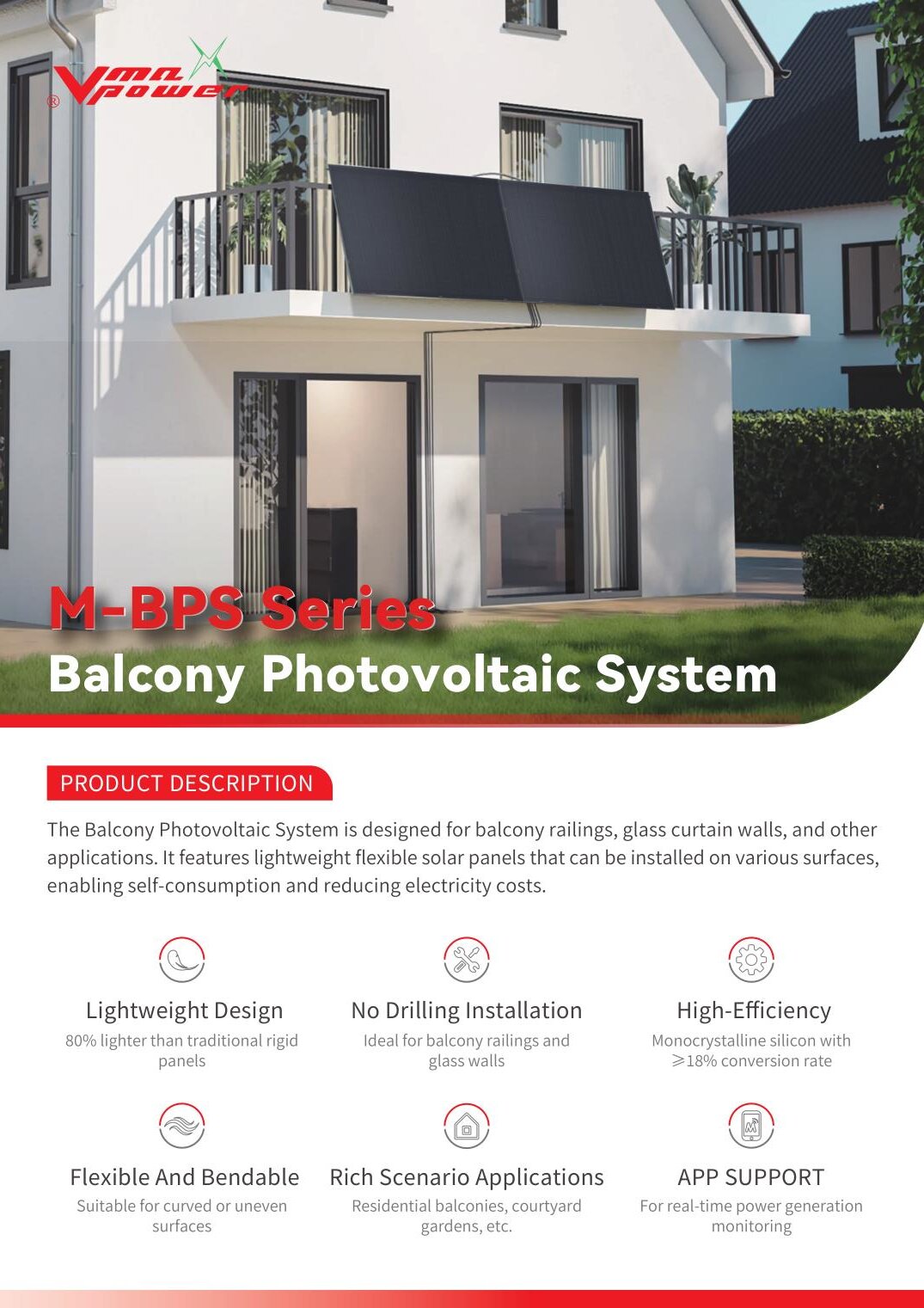

    阳台光伏系统-详情-1

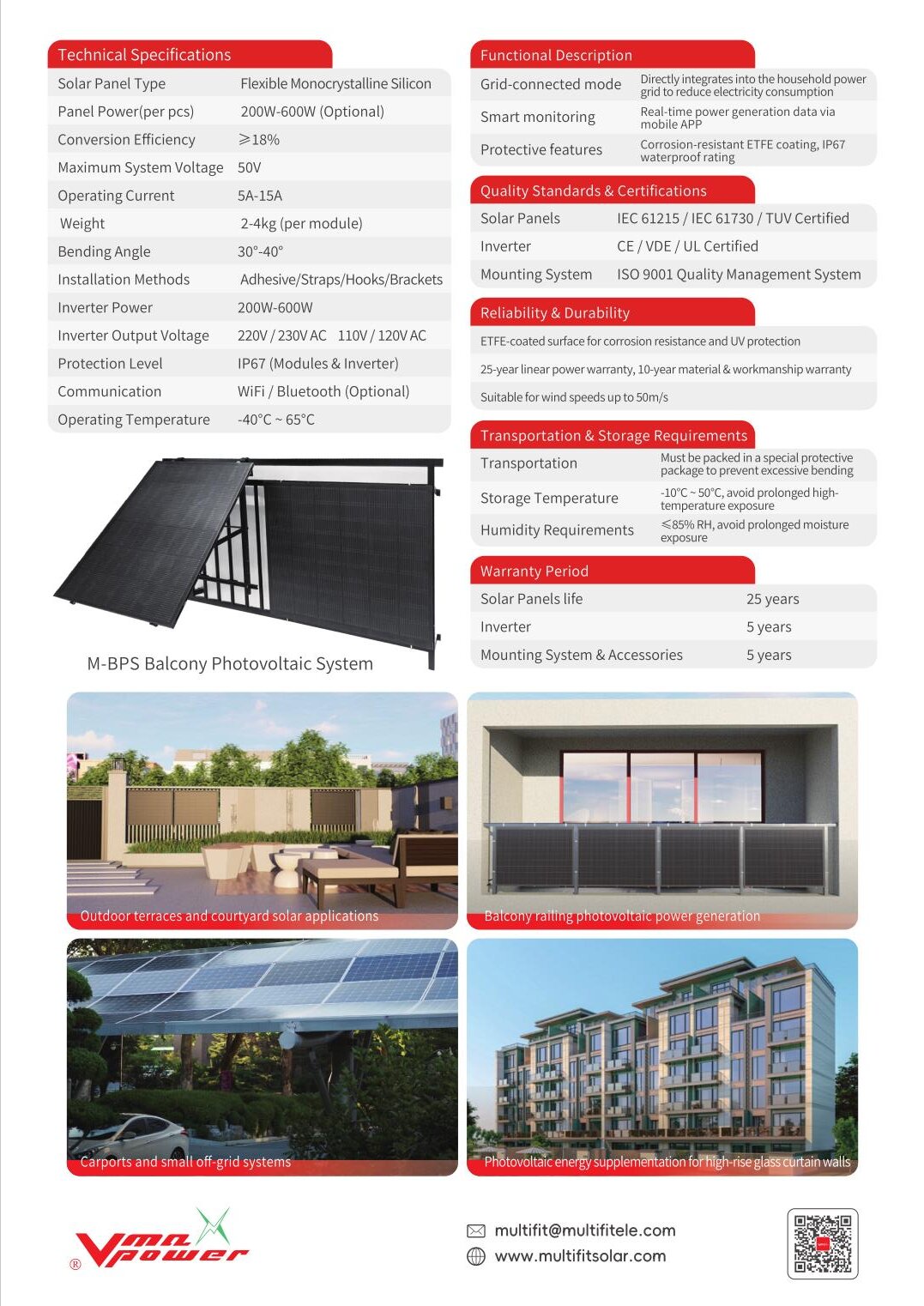

    阳台光伏系统-详情-2
