50KW240V MU-SPS off grid solar energy systems Long service life

Short Description:

Off-grid photovoltaic power generation system is widely used in remote mountainous areas, no power areas, islands, communication base stations and street lights and other application places.




  • System Capacity: 50KW
  • Specification: Normal
  • solar panel generator system: Off Grid Solar Power System
  • Output wave: Pure Sine Wave
  • Battery Capacity: GEL Battery 12V 200AH
  • AC output: 220V/230V/240Vac
  • Load: Home and Working Application
  • Technical Support: Complete Technical Support
  • Product Detail

    Product Tags

    Overview
    Quick Details
    Warranty:
    5YEARS, 25 Years Life Time
    Free installation service:
    NO
    Place of Origin:
    Guangdong, China
    Brand Name:
    Vmaxpower
    Model Number:
    MUL
    Application:
    Home, Commercial, Industrial
    Solar Panel Type:
    Monocrystalline Silicon, Polycrystalline Silicon
    Battery Type:
    Lead-Acid, Lithium Ion
    Controller Type:
    MPPT, PWM
    Mounting Type:
    Ground Mounting, Roof Mounting, Carport Mounting,BIPV Mounting
    Load Power (W):
    50000W
    Output Voltage (V):
    110V/120V/220V/230V
    Output Frequency:
    50/60Hz
    Work Time (h):
    24Hours
    Certificate:
    CE/ISO9001
    Pre-sales project design:
    Yes
    Product name:
    Off-grid Solar Power System
    Combiner box:
    Anti-lighting Function
    Mounting type:
    6m C type steel
    Solar panel:
    Monocrystalline Silico
    Battery :
    Lead Acid Battery
    AC output:
    110V/120V/220V/230V
    AC output:
    220V/230V/240Vac
    Usage:
    Home  Power System
    Technical Support:
    Complete Technical Support
    Capacity:
    50000W

    30KW System Componnent

    Installation area:400m²

    Solar module:300W*100Pcs

    Controller:80A*2Pcs

    Inverter:30KW*1Pcs

    lifePO4 Battery:48V/100Ah*30Pcs



    Energy storage system, Off-grid photo-voltaic power generation system
    It’s also known as energy storage photo-voltaic power generation system, it is mainly composed with PV modules, DC/DC charging controllers, inverters and various loads, having the functions of independent power supplying and energy storage. Off-grid photo-voltaic power generation system is mainly applied far from the power grid, such as remote villages, Gobi desert areas, beaches, islands and so on.

    50KW System Componnent

    Installation area:450m²

    Solar module:330W*150

    Controller:100A*3

    Inverter:50KW*1

    Battery:2V/2000Ah*192



    Energy storage system, Off-grid photo-voltaic power generation system
    We accept customization of the different power of solar generation system: 3KW/ 5KW/ 10KW/ 20KW/ 30KW/ 50KW/ 100KW/ 150KW/ 200KW/ 300KW/ 400KW/ 500KW
    One-Stop shopping service, complete system, You can purchase all accessories in our store.
    It has been exported to many countries: France, UK, Italy, Australia, Yemen, Dominican Republic Asia, and so on.

    Long service life 240V MU-SPS30KW off grid hybrid solar energy systems

    Photovoltaic System Planning

    Hfe836c0402924b5bb029492a12c0d967K



    What is your roof area?

    What size system do you plan to build?

    According to the provided roof area, the largest array of photovoltaic systems can be arranged

    Provide the system installation guides after the system arrive

    Stay away from the shadows

    This is the best day of the past month. I have a 5 kW Chinese solar system, which is a new system. But the maximum power I got so far is 3.9KW...not bad. But this is not the ideal state, why?Let's take a look at this picture,The shadow on the panels you see is the tree with the rising sun behind the camera. The shadow of the tree occupies 80% of the solar panel area. It is this shadow that caused the power generation efficiency of my new system to not reach the power I wanted.

    MULTIFIT: It is recommended to stay away from shadows, shading objects, etc., so that the power generation rate will be high.

    soalr system-Stay away from the shadows

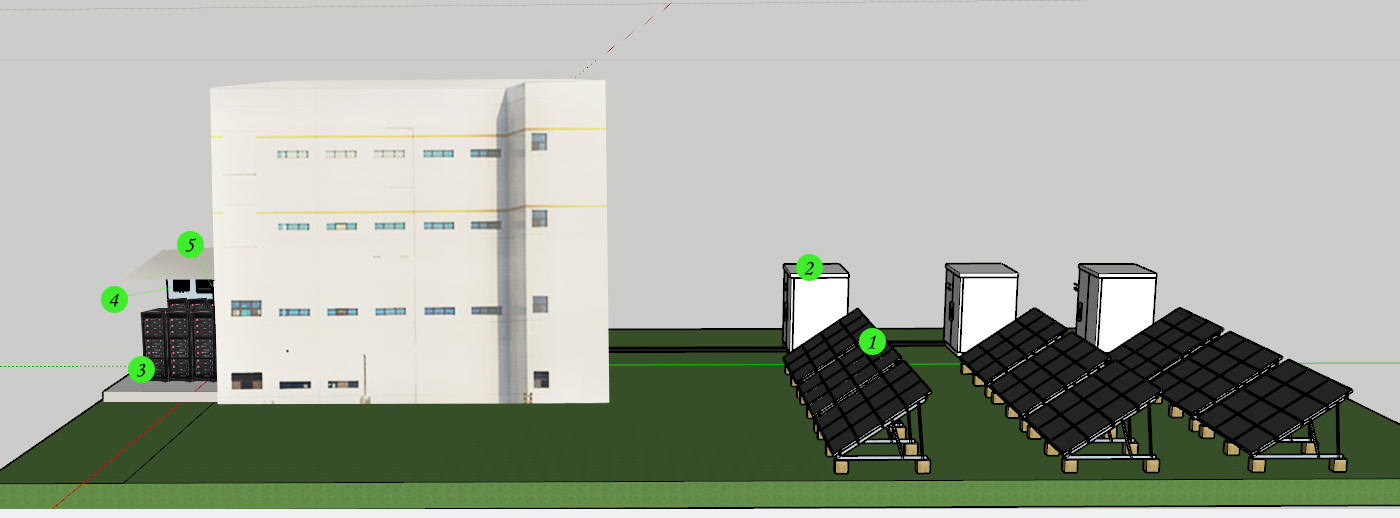

    Schematic diagram of solar system

    It’s also known as energy storage photo-voltaic power generation system

    1. Monocrystalline Solar Panels

    solar panel

    2. 30KW Inverter

    30KW INVERTER

    3. LiFePo4 Battery

    Life Po4-BATTERY

    4. Solar Array Combiner Box

    Solar array combiner box

    5. Solar Charger Controller

    Controller

    6. Solar Modules (Accessories)

    Solar modules (accessories)

    Functions of main accessories

    (1) Solar panel: Solar panel is the core part of the solar power generation system, but also the most valuable part of the solar power generation system.Its function is to convert the sun's radiation ability into electric energy, or to be stored in the battery, or to push the load work.

    (2) solar controller: the role of the solar controller is to control the working state of the whole system, and play a role in the battery charge protection, discharge protection.In places where have large temperature difference, qualified controller should also have the function of temperature compensation.Other additional functions such as light control switch and time control switch should be optional for the controller.

    (3) Battery: generally lead acid batteries, in small and micro systems, it can also be used in nickel metal hydride batteries, nickel-cadmium batteries or lithium batteries.Its purpose is to store the electricity generated by solar panels when the light is shining and release it when needed.

    (4) Inverter: the direct output of solar energy is generally 12VDC, 24VDC, 48VDC.To provide power to 220VAC appliances, it is necessary to convert the direct current generated by the solar power system into AC power, so a DC-AC inverter is required.

    System Applications

    Areas not yet covered by the national mains network

    Areas not yet covered by the national mains network

    Load-Greenhouse power distribution facilities

    Animal husbandry, aquaculture, fruit trees forest farm power supply lighting

    Large factory which voltage is instable

    Large factory which voltage is instable

    Technical Data

    Model No. System Capacity Solar Module Solar Controller Inverter Battery 12V/200Ah Installation Area Recommended Load
    Power Quantity
    MU-SPS3KW 3000W 350W 9 24V 80A 24V 3000W 8 20m2 3000W
    MU-SPS5KW 5000W 350W 15 48V 60A*2 48V 5000W 16 30m2 5000W
    MU-SPS8KW 8000W 350W 23 48V 60A*3 48V 8000W 32 46m2 8000W
    MU-SPS10KW 10000W 350W 35 96V 60A*2 96V 10000W 64 70m2 10000W
    MU-SPS15KW 15000W 350W 43 96V 60A*3 96V 15000W 128 86m2 15000W
    MU-SPS20KW 20000W 350W 57 240V 100A  240V 20000W Designed according to user 114m2 20000W
    MU-SPS30KW 30000W 350W 86 240V 80A*2 240V 30000W Designed according to user 172m2 30000W

    Remarks: 1.The conbiner box is designed according to the user's requirements, and lighting protection/ remote monitoring is optional;

                        2.The quality of batteries are designed by normal electricity consumption.(Generally 8 hours) It can be customized by user's actual demand(battery cabinet/ rack matching is optional; AC distribution cabinet/ box is optional)

    Module No. PV Conbiner Box Photovotaic
    Distribution Box
    Bracket Photovotaic cable Accessories Battery racket
    MU-SPS3KW --- --- 9*6m C type steel 12m MC4 connector C type steel connecting bolt and screw Optional
    MU-SPS5KW --- Can be equipped with lighting surge protector; Grounding copper bar 18*6m C type steel 24m
    MU-SPS8KW --- 24*6m C type steel 38m
    MU-SPS10KW 4 String 31*6m C type steel 48m
    MU-SPS15KW 4 String 36*6m C type steel 50m
    MU-SPS20KW 6 String Design according to user requirement 70m
    MU-SPS30KW 10 String Design according to user requirement 100m

    Remark: (lighting protection grounding) connection between modules and mounting breakets, mounting breakets and mounting parts and mounting parts, grounding point and lighting protection point, all that shall be designed specifically and calculated separatedly.

    BESIDES: Customize the solar system to meet your installation site, especially for the supporting structures.

    2009 Multifit Establis , 280768 Stock Exchange

    — MULTIFIT
    Beijing Multifit Electrical Technology Co.,Ltd

    12+Years in Solar Industry  20+CE Certificates

    — MULTIFIT
    Beijing Multifit Eelectrical Technology Co.,Ltd

    Multifit Green energy. Here let ou enjoy one-stop shopping. Factory direct delivery.

    — MULTIFIT
    Beijing Multifit Eelectrical Technology Co.,Ltd
    to tel-

    Genuine product guarantee/No false mark/

    No exaggeration

    One-stop solar shopping experience

    Manufacturer's engineers provide one-to-one online guidance

    5 year system warranty under normal operation

    Package & Shipping

    Batteries have high requirements for transportation.
    For questions about sea transportation, air transportation and road transportation, please consult us.

    Packing and shipping

    Multifit Office-Our Company

    HQ located in Beijing, China and founded in 2009 Our factory located in 3/F,JieSi Bldg.,6 Keji West Road,Hi-Tech Zone,Shantou,Guangdong,China.
