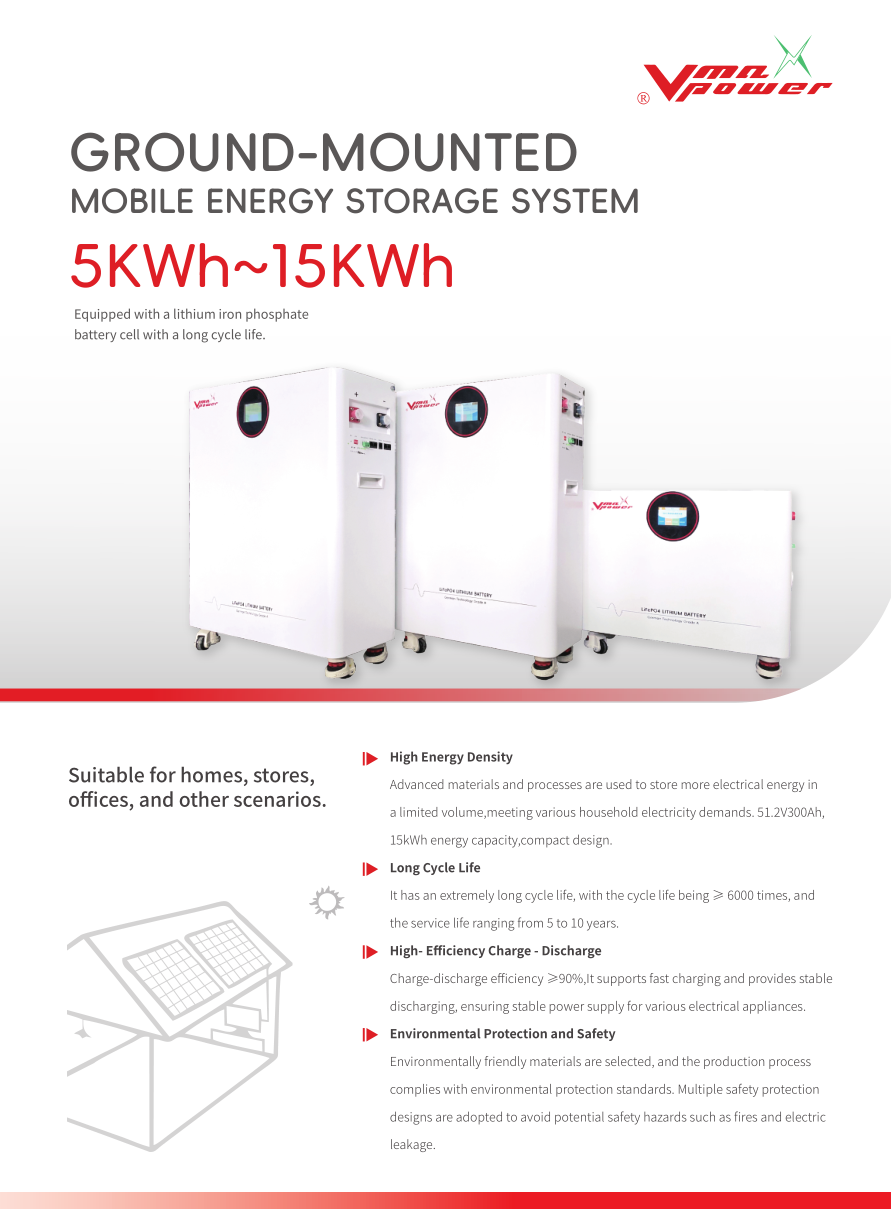

Floor-Standing Mobile Energy Storage System (100Ah–300Ah) – Lithium Iron Phosphate Battery, High Energy Density, Long Cycle Life

Short Description:

This floor-standing mobile energy storage system features lithium iron phosphate (LFP) battery cells with capacities from 100Ah to 300Ah (5.12kWh–15.36kWh), ideal for homes, shops, and offices. It offers high energy density, cycle life ≥6000 cycles, and charge-discharge efficiency ≥90%, supporting fast charging and stable discharging. Built-in protections include over-voltage, over-current, over-temperature, and short-circuit protection. Certified with ISO 9001, CE, RoHS, and more, it ensures safe, reliable, and easy installation.

Model Number: M-LFP-Series

Rated Voltage: 51.2V

Combination Mode: 16S1P

Installation Method: Floor Mounted

Charging Upper Limit Voltage: 57.6V

Discharge Cut-off Voltage: 40V

Communication Interface: RS485 / CAN

Charging Temperature Range: 0℃ ~ 45℃

Cycle Life: ≥6000 cycles (80% DOD)

Charge-Discharge Efficiency: ≥90%

Maintenance Requirement: Power off once every three months

Certifications: ISO 9001, ISO 14001, ISO 45001, CE, RoHS, WEEE

System Functions: Over-voltage, Over-current, Over-temperature, Short-circuit Protection

Discharging Temperature Range: -20℃ ~ 50℃

Send email to us

Product Detail

Product Tags

Overview

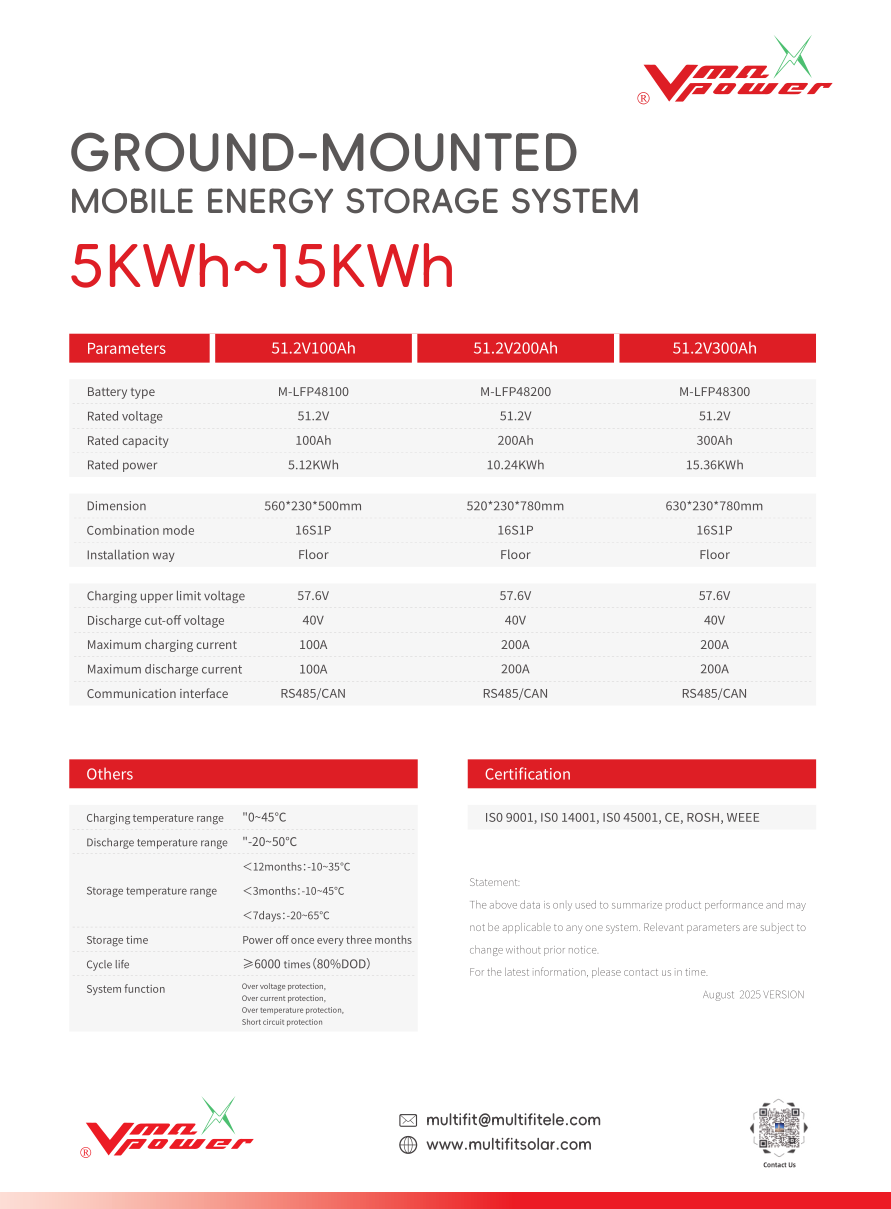

Item	Specification
Product Series	Floor-Standing Mobile Energy Storage System
Battery Type	Lithium Iron Phosphate (LFP)
Model	M-LFP48100	M-LFP48200	M-LFP48300
Rated Voltage	51.2V
Rated Capacity	100Ah	200Ah	300Ah
Rated Energy	5.12 kWh	10.24 kWh	15.36 kWh
Dimension (W×D×H)	560×230×500 mm	520×230×780 mm	630×230×780 mm
Combination Mode	16S1P
Installation Method	Floor Mounted
Charging Upper Limit Voltage	57.6V
Discharge Cut-off Voltage	40V
Max. Charging Current	100A	200A
Max. Discharging Current	100A	200A
Communication Interface	RS485 / CAN
Charging Temperature Range	0℃ ~ 45℃
Discharging Temperature Range	-20℃ ~ 50℃
Storage Temperature Range	<12 months: -10℃ ~ 35℃
	<7 days: -20℃ ~ 65℃
Cycle Life	≥6000 cycles (80% DOD)
Charge-Discharge Efficiency	≥90%
System Functions	Over-voltage, Over-current, Over-temperature, Short-circuit Protection
Certifications	ISO 9001, ISO 14001, ISO 45001, CE, RoHS, WEEE
Maintenance Requirement	Power off once every three months

When you need batteries

No electricity

No electricity outdoors

Device cannot be powered

Base station power off

Applications

• Solar and wind Power Plants

• Wheelchair

• Military Equipment

• Marine Equipment

• Emergency Power System

• Medical Devices

• Emergency lighting

• Telecommunications system

Package & Shipping

Batteries have high requirements for transportation.
For questions about sea transportation, air transportation and road transportation, please consult us.
