10KW US Split Phase Hybrid Solar Inverter for Shop Commercial Backup

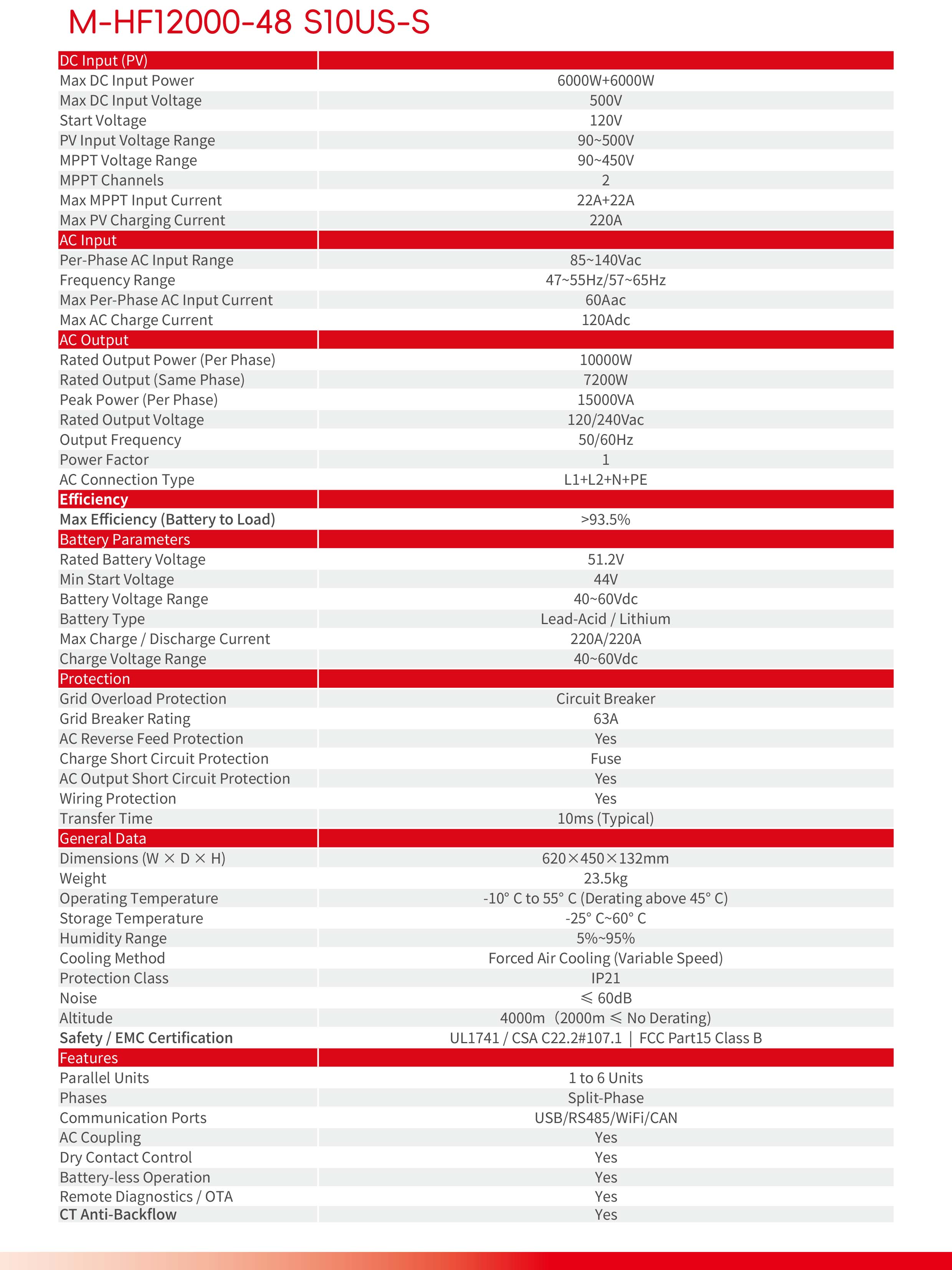

| Parameter | 10KW Split Phase |
| Model | M-HF12000-48 S10US-S |
| Type | High-frequency Hybrid Inverter |
| Phase | Split Phase |
| Parallel Units | 1-6 Units |
| Max. PV Input Power | 6000W+6000W |
| Max. PV Open Circuit Voltage | 500V |
| Start Voltage | 120V |
| PV Input Voltage Range | 90~500V |
| MPPT Voltage Range | 90~450V |
| MPPT Channels | 2 |
| Max. MPPT Input Current | 22A+22A |
| Max. PV Charging Current | 220A |
| AC Input Range | 85~140Vac |
| Frequency Range | 47~55Hz/57~65Hz |
| Max. Per-Phase AC Input Current | 60Aac |
| Max. AC Charge Current | 120Aac |
| Rated Output Power (Per Phase) | 10000W |
| Rated Output Power (Same Phase) | 7200W |
| Peak Power (Per Phase) | 15000VA |
| Rated Output Voltage | 120/240Vac |
| Output Frequency | 50/60Hz |
| Power Factor | 1 |
| AC Connection Type | L1+L2+N+PE |
| Max. Efficiency (Battery to Load) | >93.5% |
| Rated Battery Voltage | 51.2V |
| Min. Start Voltage | 44V |
| Battery Voltage Range | 40~60Vdc |
| Battery Type | Lead-Acid / Lithium |
| Max. Charge / Discharge Current | 220A/220A |
| Charge Voltage Range | 40~60Vdc |
| Grid Overload Protection | Circuit Breaker |
| Grid Breaker Rating | 63A |
| AC Reverse Feed Protection | Yes |
| Charge Short Circuit Protection | Fuse |
| AC Output Short Circuit Protection | Yes |
| Wiring Protection | Yes |
| Transfer Time | 10ms (Typical) |
| Dimensions (W×D×H) | 620×450×132mm |
| Weight | 23.5kg |
| Operating Temperature | -10°C to 55°C (Derating above 45°C) |
| Storage Temperature | -25°C~60°C |
| Humidity Range | 5%~95% |
| Cooling Method | Forced Air Cooling (Variable Speed) |
| Protection Class | IP21 |
| Noise | ≤60dB |
| Altitude | 4000m (2000m ≤ No Derating) |
| Safety / EMC Certification | UL1741 / CSA C22.2#107.1 / FCC Part15 Class B |
| Communication Ports | USB/RS485/WiFi/CAN |
| AC Coupling | Yes |
| Dry Contact Control | Yes |
| Battery-less Operation | Yes |
| Remote Diagnostics / OTA | Yes |
| CT Anti-Backflow | Yes |
Product Details

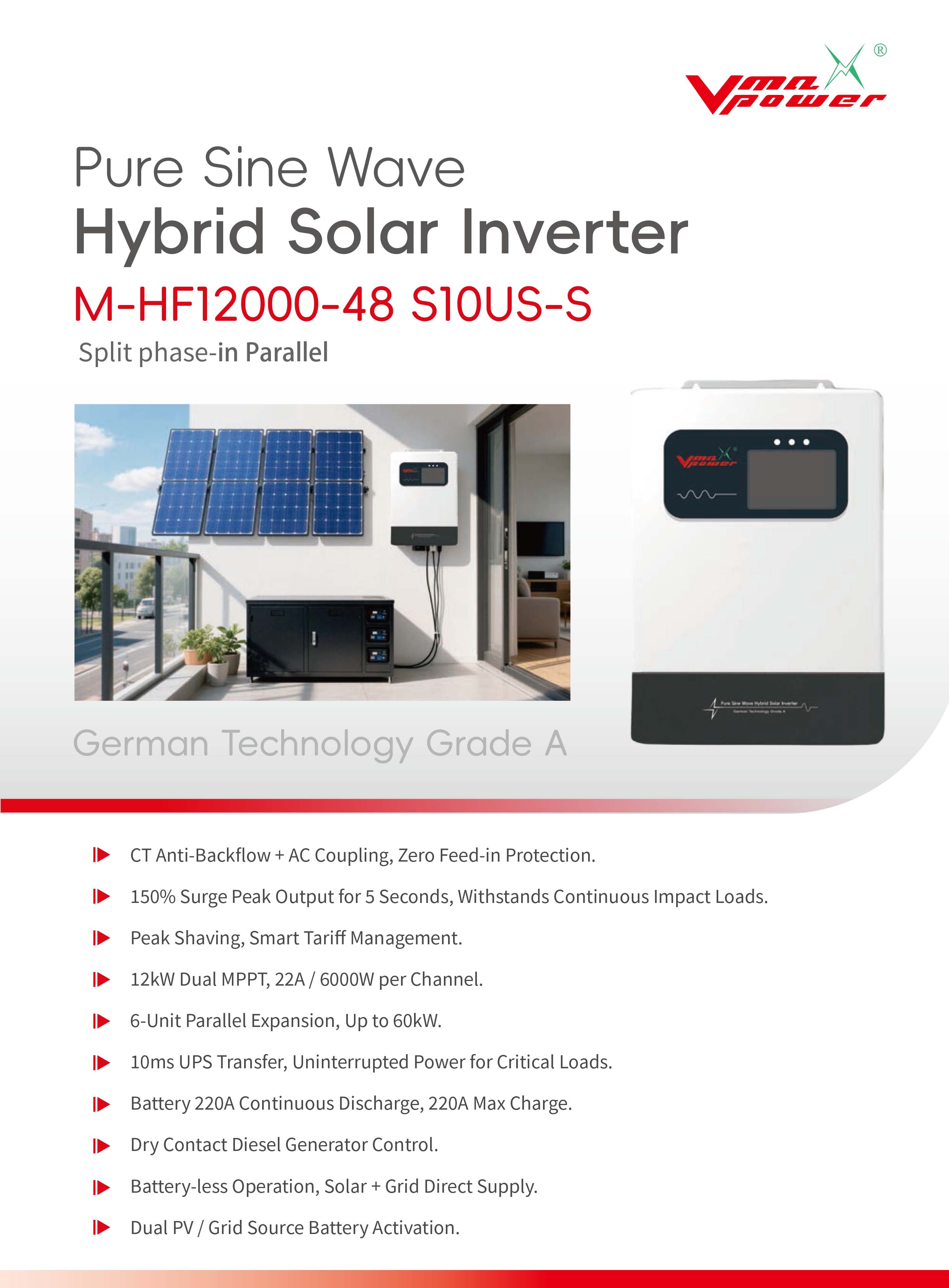

Product Characteristic
- Upgraded 12kW Dual MPPT: Features 12kW dual MPPT capacity (6000W / 22A per channel), maximizing solar harvest with an extended 90~500V PV input range.
- Massive Parallel Expansion: Supports up to 6 units in parallel for a total expansion capacity of up to 60kW.
- 150% Surge Peak Output: Delivers 150% surge peak output (15,000VA per phase) for 5 seconds, easily withstanding continuous impact loads.
- Enhanced Battery Performance: Supports 220A continuous discharge and 220A max charge, with >93.5% max efficiency (battery to load) and compatibility with lead-acid or lithium batteries.
- 10ms UPS-Level Transfer: Provides a typical 10ms transfer time, ensuring uninterrupted power for critical loads.
- Smart Anti-Backflow & Energy Management: Features CT anti-backflow, AC coupling, zero feed-in protection, peak shaving, and smart tariff management.
- Advanced Generator & Grid Control: Equipped with dry contact diesel generator control and dual PV/Grid source battery activation.
- Flexible Battery-less Operation: Capable of running without batteries, providing direct solar + grid supply for continuous operation.
- Comprehensive Safety & Certifications: Built-in 63A grid breaker, AC reverse feed protection, and short-circuit protection. Certified by UL1741 / CSA C22.2#107.1 / FCC Part15 Class B.
- Robust & Durable Design: Compact 23.5kg chassis with IP21 protection, variable speed forced air cooling, ≤60dB noise level, and stable operation up to 4000m altitude (-10°C to 55°C).

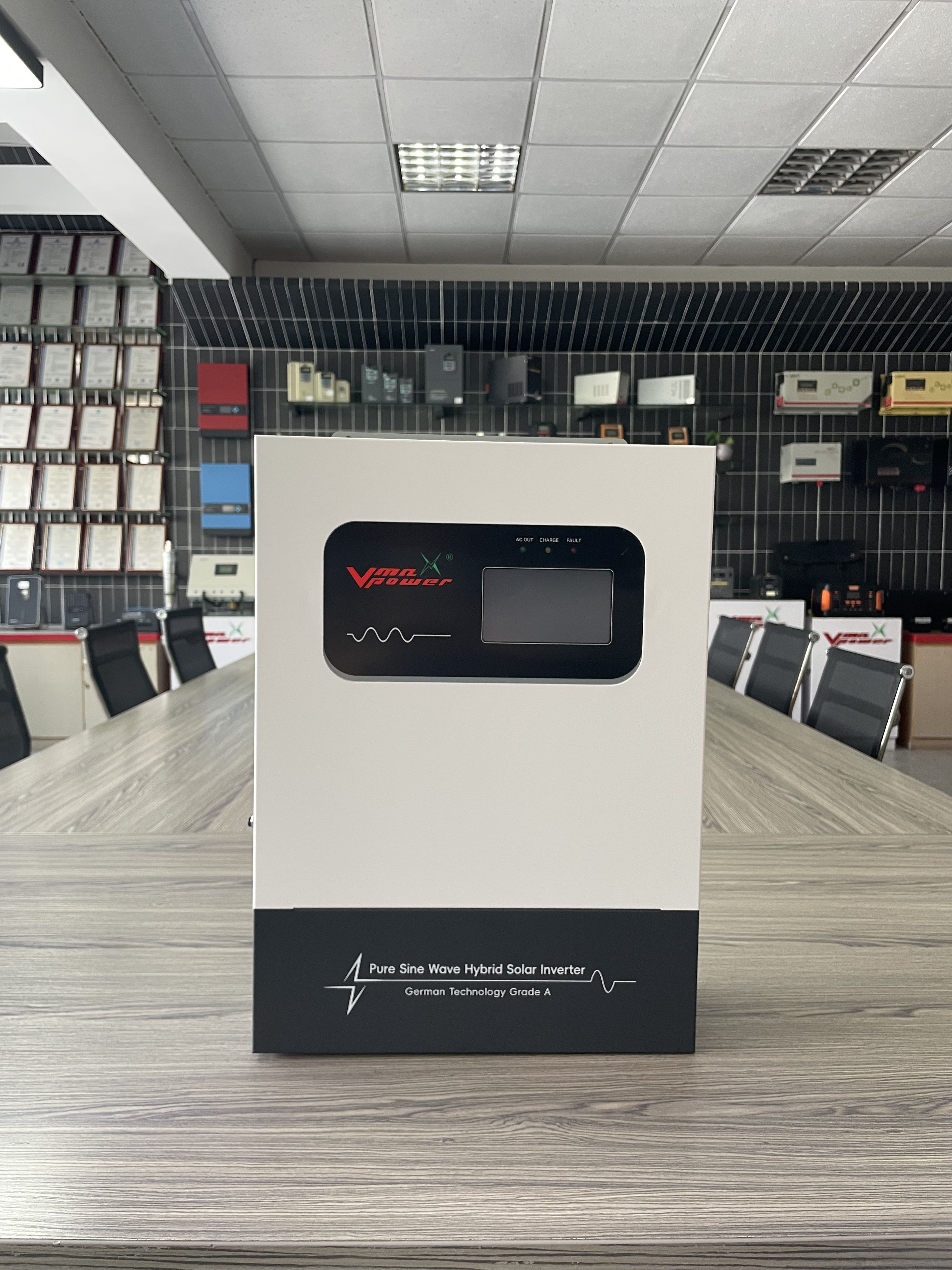

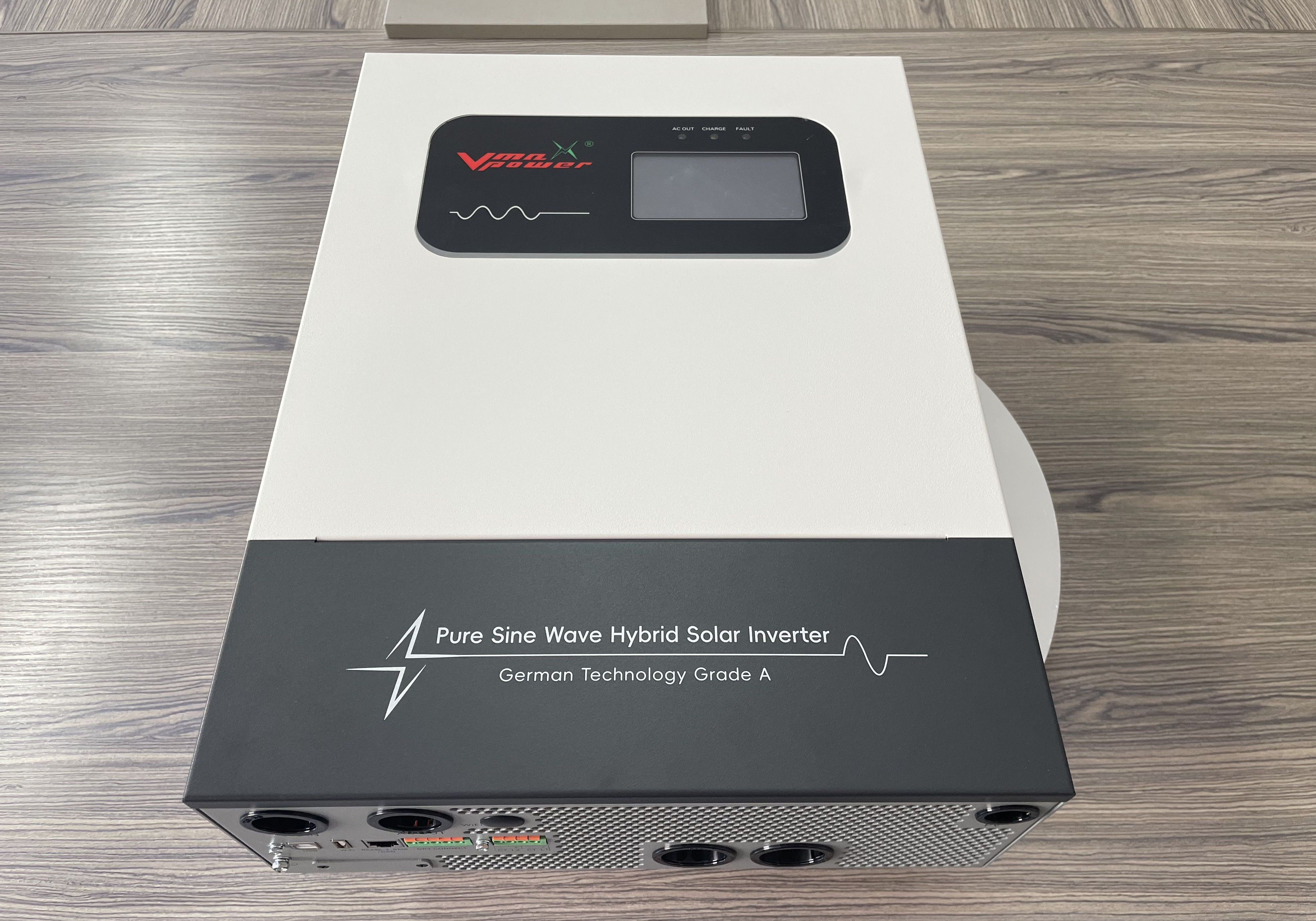

product picture
Application scenario
For shopping malls, medical institutions, construction sites, wasteland, etc., 3000W～8000W off-grid photovoltaic systems should be selected according to the load. If you need an inverter with a power of more than 8000W, please communicate with customer service for customization.
1000W-3000W inverters are recommended for ships, carports, toilets, and small-area systems.
Places prone to power outages, elevators, schools in outlying suburbs...
Travel camping, RV outing
Household appliances, electric tools
Engineering construction, photovoltaic system
