8KW US Split Phase Hybrid Solar Inverter for Cabin Off-Grid Power

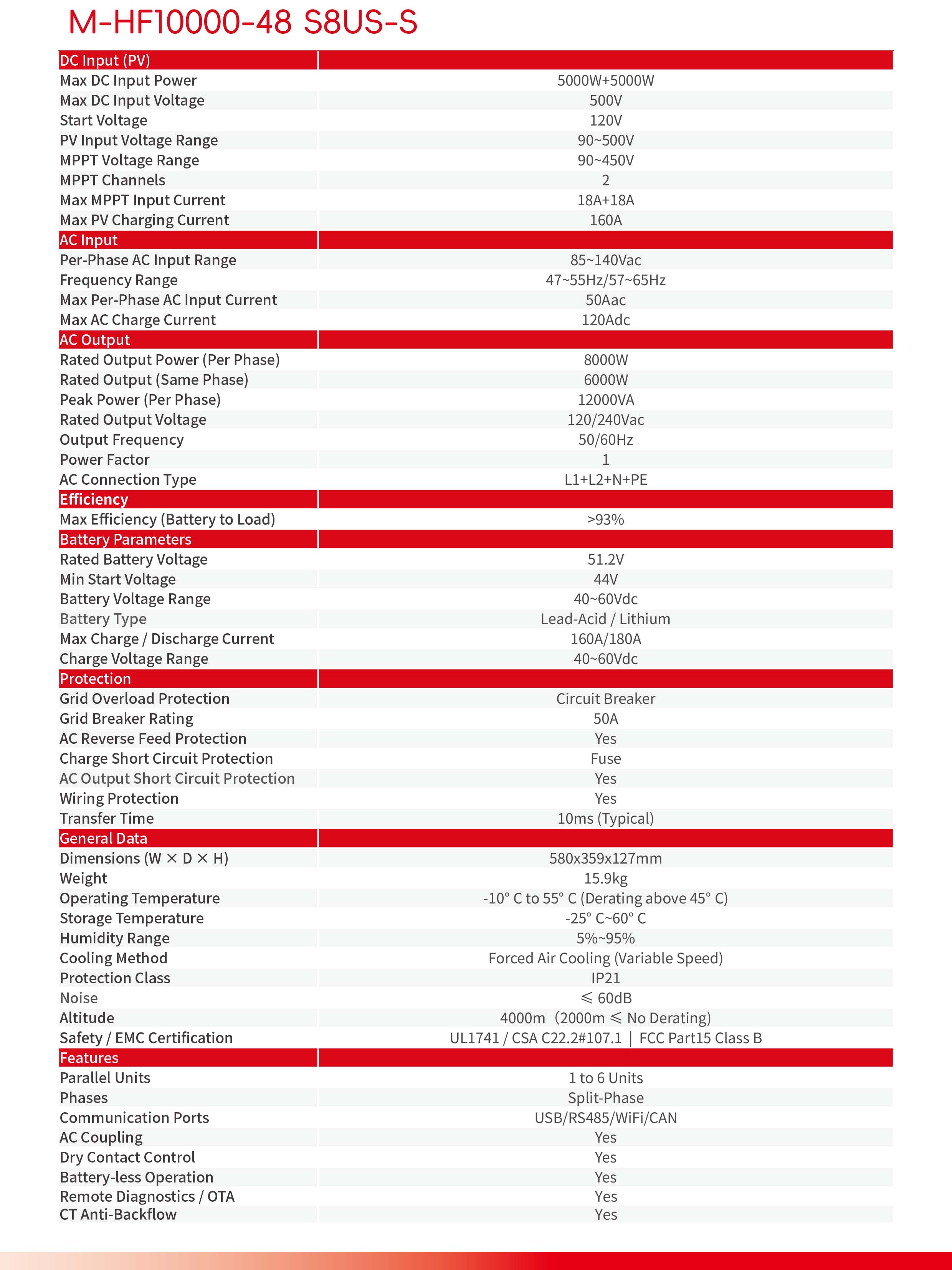

| Parameter | 8KW Split Phase |
| Model | M-HF10000-48 S8US-S |
| Type | High-frequency Hybrid Inverter |
| Phase | Split Phase |
| Parallel Units | 1-6 Units |
| Max. PV Input Power | 5000W+5000W |
| Max. PV Open Circuit Voltage | 500V |
| Start Voltage | 120V |
| PV Input Voltage Range | 90~500V |
| MPPT Voltage Range | 90~450V |
| MPPT Channels | 2 |
| Max. MPPT Input Current | 18A+18A |
| Max. PV Charging Current | 160A |
| AC Input Range | 85~140Vac |
| Frequency Range | 47~55Hz/57~65Hz |
| Max. Per-Phase AC Input Current | 50Aac |
| Max. AC Charge Current | 120Aac |
| Rated Output Power (Per Phase) | 8000W |
| Rated Output Power (Same Phase) | 6000W |
| Peak Power (Per Phase) | 12000VA |
| Rated Output Voltage | 120/240Vac |
| Output Frequency | 50/60Hz |
| Power Factor | 1 |
| AC Connection Type | L1+L2+N+PE |
| Max. Efficiency (Battery to Load) | >93% |
| Rated Battery Voltage | 51.2V |
| Min. Start Voltage | 44V |
| Battery Voltage Range | 40~60Vdc |
| Battery Type | Lead-Acid / Lithium |
| Max. Charge / Discharge Current | 160A/180A |
| Charge Voltage Range | 40~60Vdc |
| Grid Overload Protection | Circuit Breaker |
| Grid Breaker Rating | 50A |
| AC Reverse Feed Protection | Yes |
| Charge Short Circuit Protection | Fuse |
| AC Output Short Circuit Protection | Yes |
| Wiring Protection | Yes |
| Transfer Time | 10ms (Typical) |
| Dimensions (W×D×H) | 580×359×127mm |
| Weight | 15.9kg |
| Operating Temperature | -10°C to 55°C (Derating above 45°C) |
| Storage Temperature | -25°C~60°C |
| Humidity Range | 5%~95% |
| Cooling Method | Forced Air Cooling (Variable Speed) |
| Protection Class | IP21 |
| Noise | ≤60dB |
| Altitude | 4000m (2000m ≤ No Derating) |
| Safety / EMC Certification | UL1741 / CSA C22.2#107.1 / FCC Part15 Class B |
| Communication Ports | USB/RS485/WiFi/CAN |
| AC Coupling | Yes |
| Dry Contact Control | Yes |
| Battery-less Operation | Yes |
| Remote Diagnostics / OTA | Yes |
| CT Anti-Backflow | Yes |
Product Details

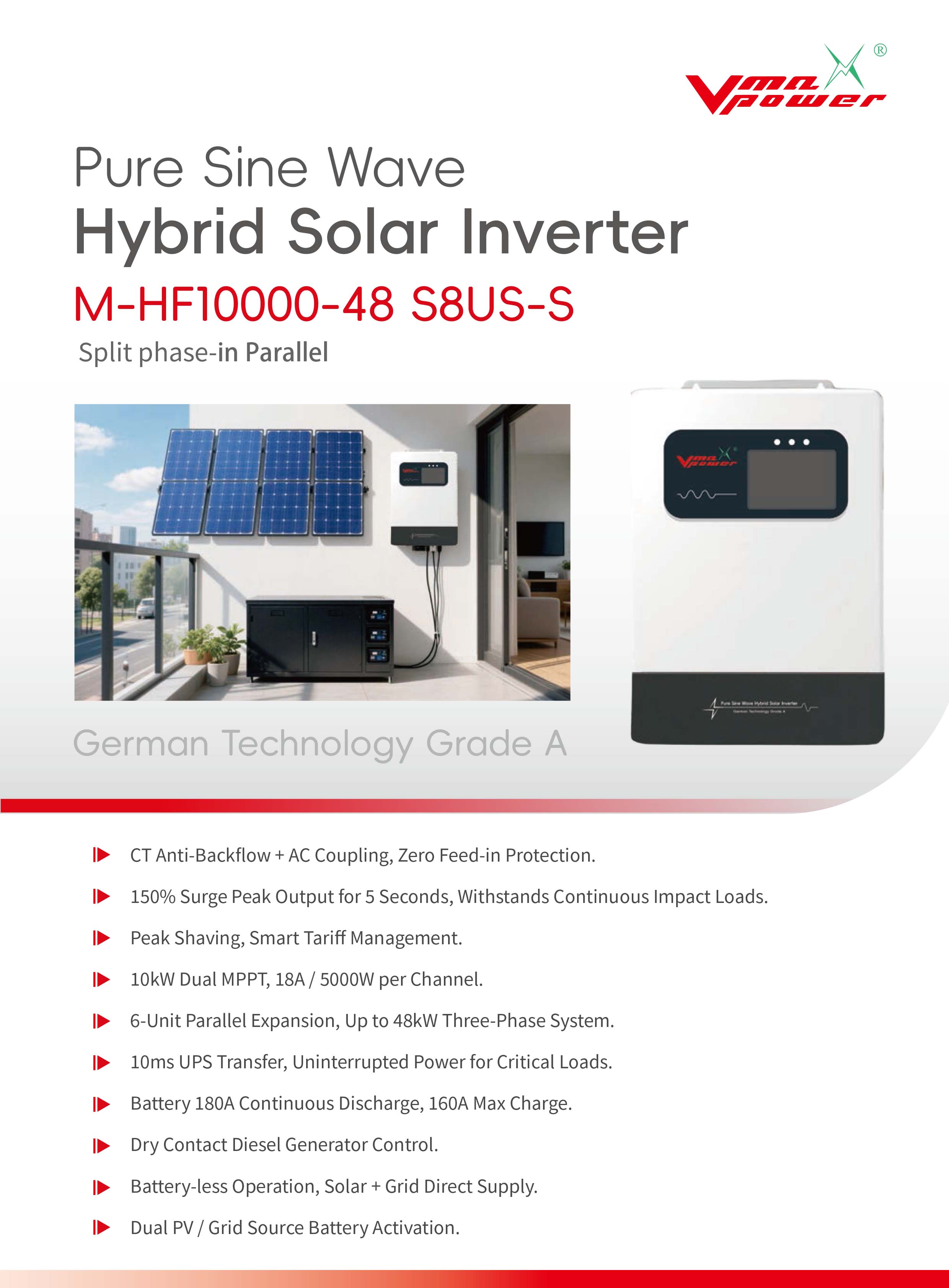

Product Characteristic
-
Powerful Capacity & Expandability: Features 10kW dual MPPT (5000W/18A per channel), supports parallel expansion of 1 to 6 units, and can build up to a 48kW three-phase system.
-
Superior Surge Capability: Supports 150% surge peak output for 5 seconds, easily withstanding continuous impact loads such as air conditioners and water pumps.
-
UPS-Level Uninterrupted Power: Features a typical 10ms transfer time, providing seamless UPS protection for critical loads.
-
Smart Anti-Backflow & Energy Management: Supports CT anti-backflow, AC coupling, and zero feed-in protection, with peak shaving and smart tariff management.
-
Flexible Battery-less Operation: Supports battery-less operation for direct solar + grid supply, and dual PV/grid source battery activation.
-
Excellent Battery Compatibility & Performance: Compatible with lead-acid and lithium batteries, supporting 160A max charge and 180A continuous discharge, with a 40~60Vdc charge voltage range.
-
Pure Sine Wave & High Efficiency: Pure sine wave output, power factor of 1, and max efficiency (battery to load) of >93%.
-
Comprehensive Safety & Protection: Built-in grid overload protection (50A circuit breaker), AC reverse feed protection, short circuit protection (fuse), and wiring protection. Certified by UL1741 / CSA C22.2#107.1 / FCC Part15 Class B.
-
Rich Communication & Remote Management: Equipped with USB/RS485/WIFI/CAN communication ports, supporting remote diagnostics and OTA firmware updates.
-
Smart Generator Control & Durable Design: Features dry contact diesel generator control, variable speed forced air cooling, IP21 protection class, and stable operation from -10°C to 55°C (up to 4000m altitude).

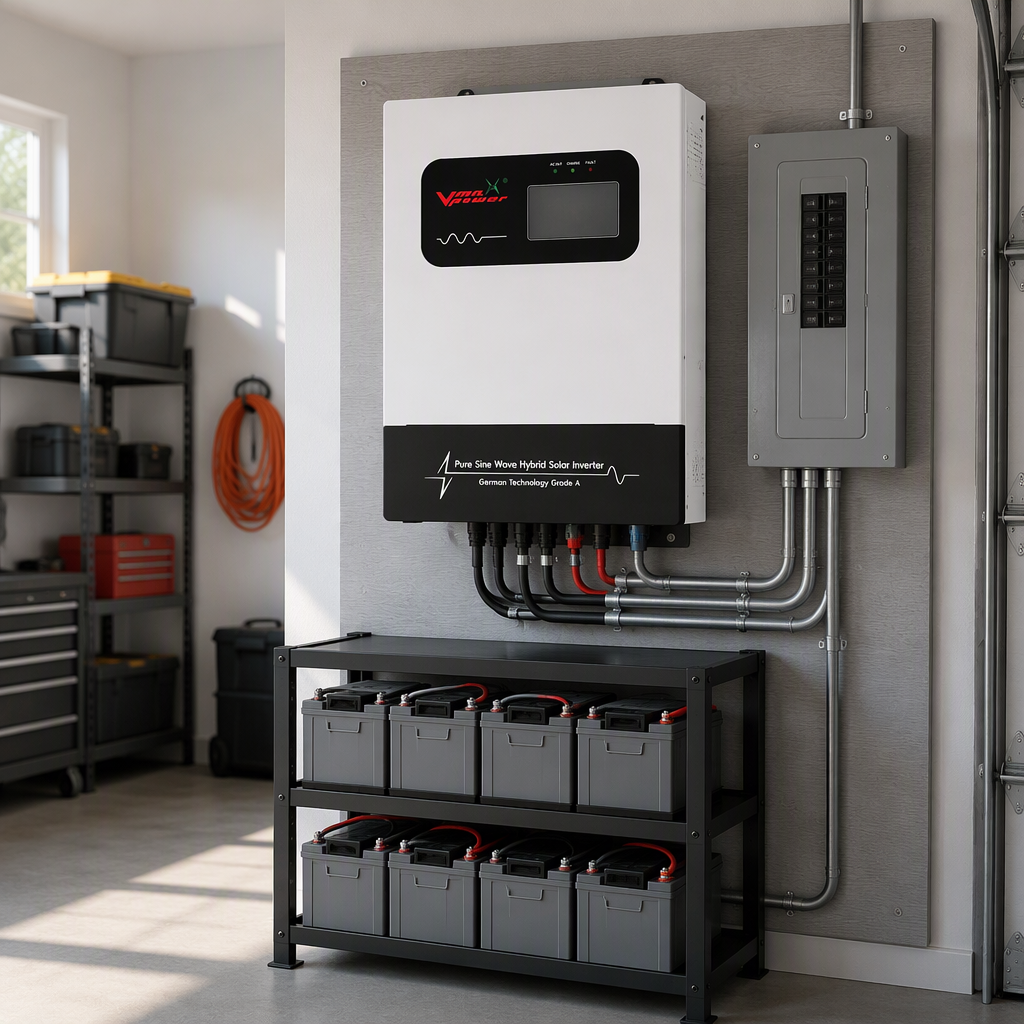

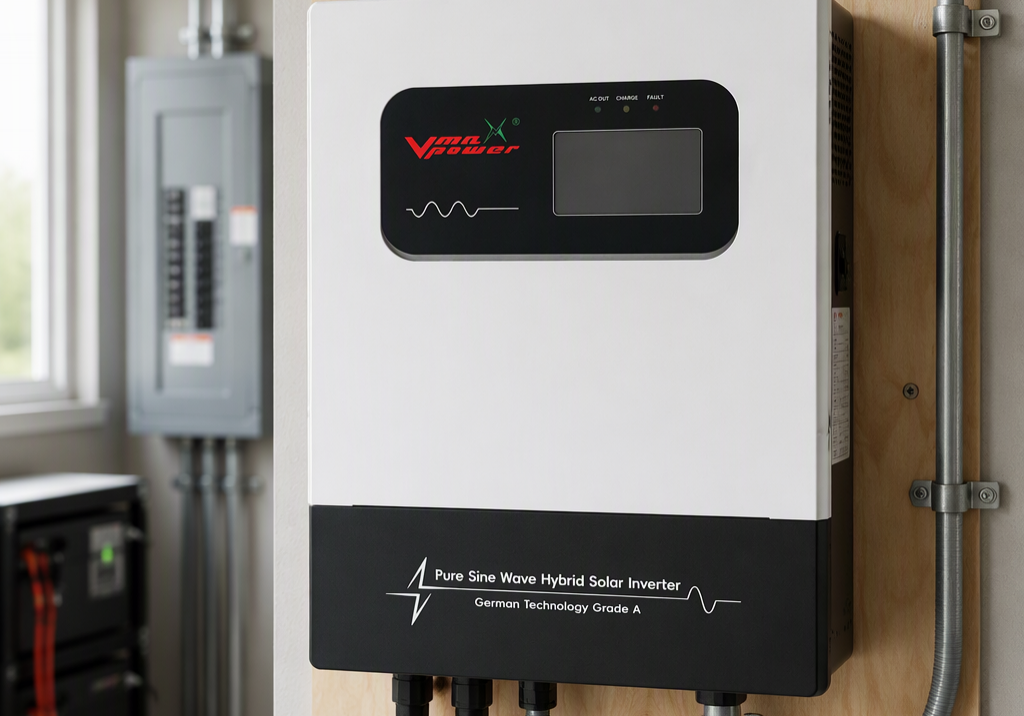

product picture
Application scenario
For shopping malls, medical institutions, construction sites, wasteland, etc., 3000W～8000W off-grid photovoltaic systems should be selected according to the load. If you need an inverter with a power of more than 8000W, please communicate with customer service for customization.
1000W-3000W inverters are recommended for ships, carports, toilets, and small-area systems.
Places prone to power outages, elevators, schools in outlying suburbs...
Travel camping, RV outing
Household appliances, electric tools
Engineering construction, photovoltaic system
