200KW the Latest solar energy system MU-SGS200KW On Grid Comercial and Household Solar Power Systems
Overview
Quick Details
- Warranty:
-
5YEARS, 25 Years Life Time
- Free installation service:
-
NO
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
Vmaxpower
- Model Number:
-
MU-SGS100KW
- Application:
-
Home, Commercial, Industrial
- Solar Panel Type:
-
Monocrystalline Silicon, Polycrystalline Silicon
- Controller Type:
-
MPPT, PWM
- Mounting Type:
-
Ground Mounting, Roof Mounting, Carport Mounting,BIPV Mounting
- Load Power (W):
-
100000W
- Output Voltage (V):
-
110V/120V/220V/230V
- Output Frequency:
-
50/60Hz
- Work Time (h):
-
24Hours
- Certificate:
-
CE/ISO9001
- Pre-sales project design:
-
Yes
- Product name:
-
On-grid Solar Power System
- Combiner box:
-
Anti-lighting Function
- Mounting type:
-
6m C type steel
- Solar panel:
-
Monocrystalline Silico
- AC output:
-
110V/120V/220V/230V
- Technical Support:
-
Complete Technical Support
- Capacity:
-
100000W
System Introduction
Solar power system is a device system that converts solar energy directly into electric energy through battery modules.In the light condition, the solar modules generate electromotive force, through the solar cell array formed by series and parallel components, make the array voltage to meet the requirements of the system input voltage.The battery is charged by the charge and discharge controller, and the electric energy converted from the light energy is stored.
At night, the battery pack provides input power to the inverter. The inverter converts the DC into AC power and sends it to the distribution box. The distribution box provides power.The discharge of battery is controlled by the controller.The photovoltaic power station system should also be equipped with limited load protection and lightning protection devices to protect the system equipment from overload operation and lightning strike, and maintain the use of system equipment.
System Advantages
The solar panels are lightweight, easy to carry and install, and are made from efficient single-crystal solar cells with a heavy-duty anodized alumina frame, corrosion-resistant aluminum frame and toughened glass coating to protect the panels from weathering and wear.
The system comes with a stand that adjusts the mounting Angle to better receive sunlight and can be mounted on the floor, wood or walls.
The system is equipped with an intelligent charging controller to fully protect the battery from overcharge, overdischarge, overvoltage, short circuit, etc.
Power generation is stable and efficient
Sustainable returns over 25 years
System Componnent
1.Solar Panels
2.Distribution Box
3.Solar cable &MC Four

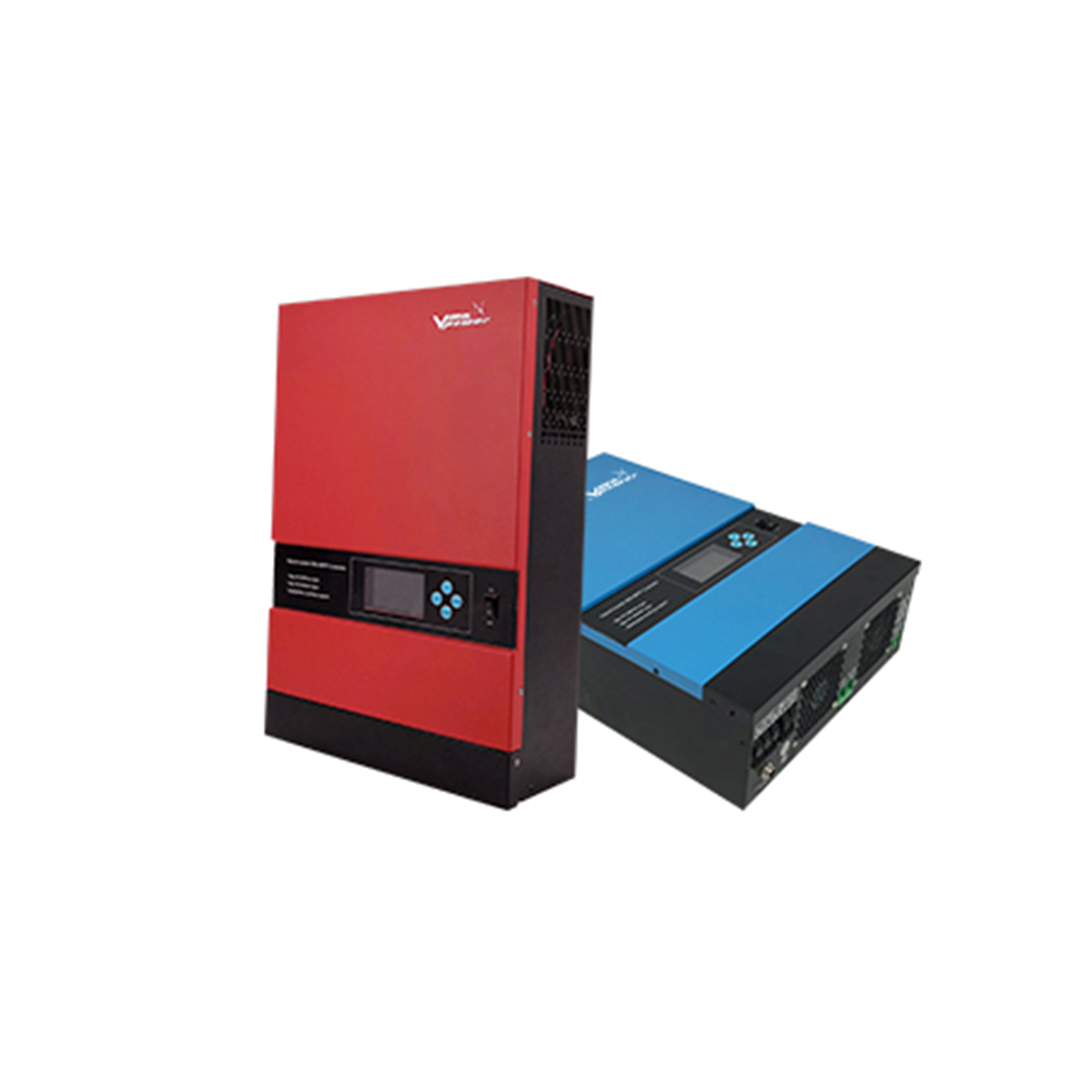

4.Solar Hybrid Inverter with MPPT Controller

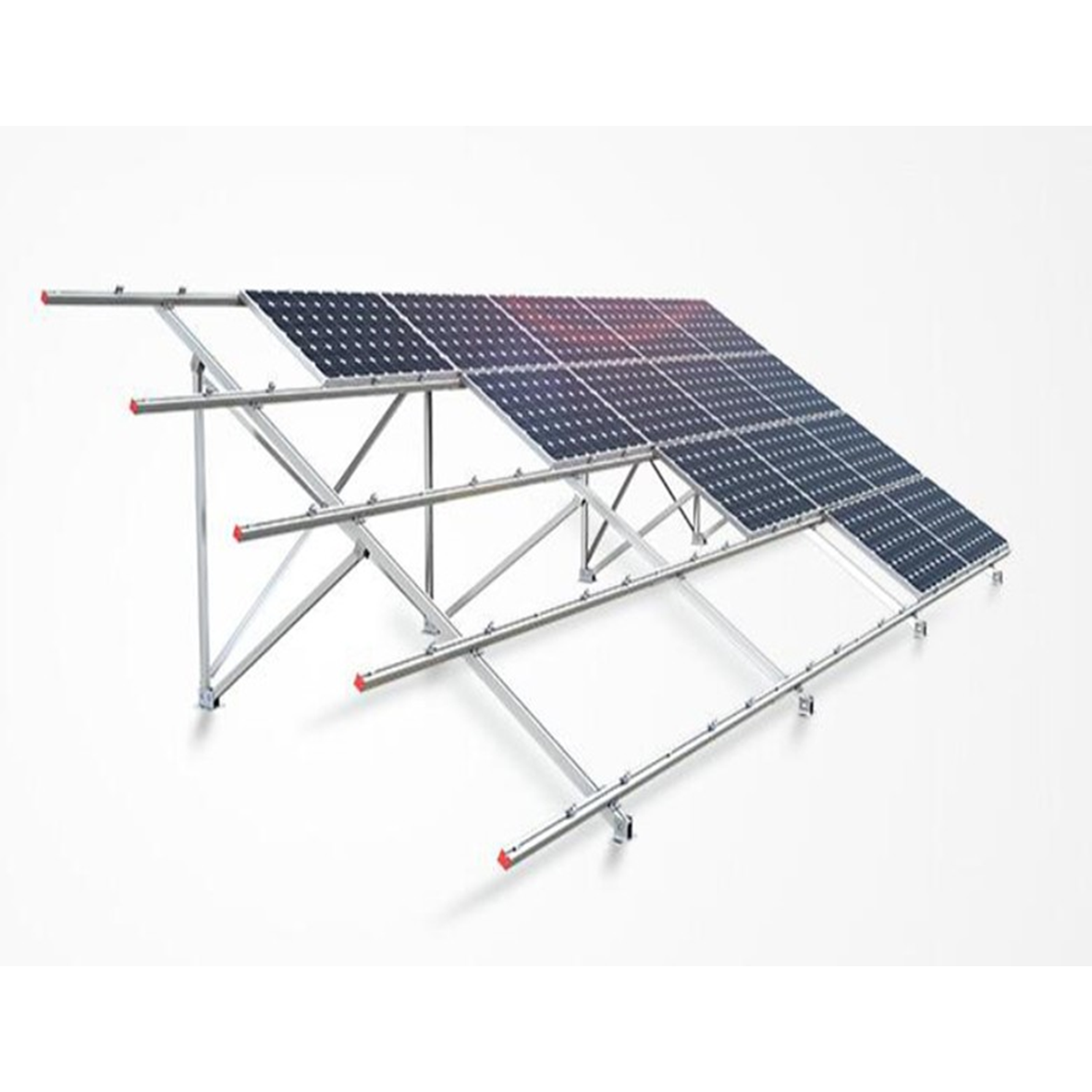

5.Four type of solar brackets are optional
The Process of Installation
1.Site investigation
1. Determine the ground, flat roof, tile roof, color steel tile roof, etc
2. Check whether the site is shaded
3. Determine the orientation, Angle and connection point
4. Determine the installation capacity
2.Equipment selection
1. Determine the specifications and models of component
2. Determine the specifications and model of inverter
3.According to the owner's needs, issue construction drawings
You can contact us for construction drawings.
4.Orgnize construction
1. Purchase equipment and materials
2. The workers start construction
According to your installation location, we can provide a certain difference in the service, you can contact customer for consultation.
Keep the Best Angle
Because the fixed installation can not automatically track the sun's change of Angle like the tracking system, it needs to calculate the optimal inclination of the component arrangement according to the latitude to obtain the maximum solar radiation throughout the year and seek the maximum energy generation.
MULTIFIT: It is recommended to keep the best angle, so that the power generation rate will be high.
Quality assurance
Core power panel, 25 years product quality and power compensation liability insurance.
Inverters provide five years of product quality and fault insurance.
The bracket is guaranteed for ten years.
System Applications
Distributed photovoltaic systems can be installed anywhere there is sunlight.
Including rural areas, pastoral areas, mountainous areas, developing large, medium and small cities or buildings near the business district, the most widely used at present is the distributed photovoltaic grid project installed on the roof of buildings.Including schools, hospitals, shopping malls, villas, residents, factories, enterprises, car sheds, bus shelters and other roof which meet the load requirements of concrete, color steel plate and tile can be installed distributed PHOTOVOLTAIC power station.
The Cases

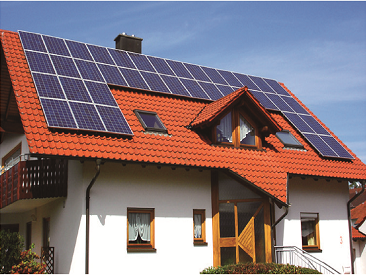

The residential solar power system can be widely applied to the sloping roof, platform, carport and other places of the houses built by residents.
Technical Data
| Model No. | System Capacity | Solar Module | Inverter | Installation Area | Annual energy output(KWH) | ||
| Power | Quantity | Capacity | Quantity | ||||
| MU-SGS5KW | 5000W | 285W | 17 | 5KW | 1 | 34m2 | ≈8000 |
| MU-SGS8KW | 8000W | 285W | 28 | 8KW | 1 | 56m2 | ≈12800 |
| MU-SGS10KW | 10000W | 285W | 35 | 10KW | 1 | 70m2 | ≈16000 |
| MU-SGS15KW | 15000W | 350W | 43 | 15KW | 1 | 86m2 | ≈24000 |
| MU-SGS20KW | 20000W | 350W | 57 | 20KW | 1 | 114m2 | ≈32000 |
| MU-SGS30KW | 30000W | 350W | 86 | 30KW | 1 | 172m2 | ≈48000 |
| MU-SGS50KW | 50000W | 350W | 142 | 50KW | 1 | 284m2 | ≈80000 |
| MU-SGS100KW | 100000W | 350W | 286 | 50KW | 2 | 572m2 | ≈160000 |
| MU-SGS200KW | 200000W | 350W | 571 | 50KW | 4 | 1142m2 | ≈320000 |
| Module No. | MU-SPS5KW | MU-SPS8KW | MU-SPS10KW | MU-SPS15KW | MU-SPS20KW | MU-SPS30KW | MU-SPS50KW | MU-SPS100KW | MU-SPS200KW | |
| Distribution Box | Essential internal components of the distribution box AC switch, photovoltaic reclosing; Lightning surge protection, grounding copper bar | |||||||||
| Bracket | 9*6m C type steel | 18*6m C type steel | 24*6m C type steel | 31*6m C type steel | 36*6m C type steel | Need to design | Need to design | Need to design | Need to design | |
| Photovotaic cable | 20m | 30m | 35m | 70m | 80m | 120m | 200m | 450m | 800m | |
| Accessories | MC4 connector C type steel connecting bolt and screw | MC4 connector Connecting bolt and screw Medium pressure block edge pressure block | ||||||||
Remarks:
The specifications are only used for the system comparison of different specifications. Multifit can also design different specifications according to the personalized needs of customers.
